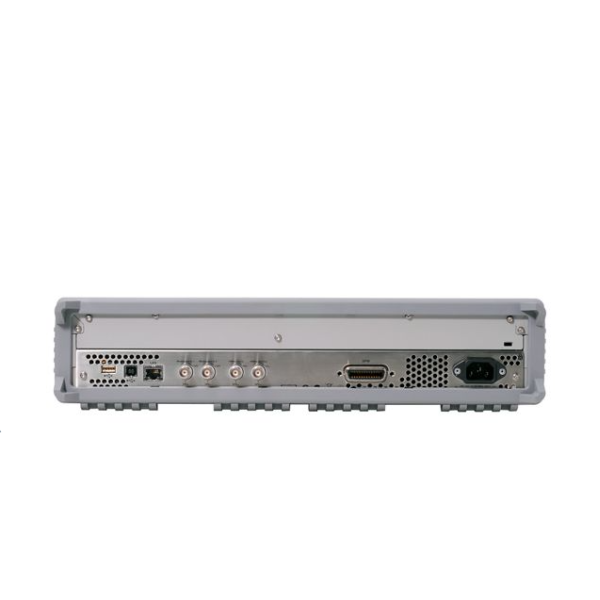

Keysight 81150A Pulse Function Arbitrary Noise Generator with 240 MHz Sine 14-bit Vertical Resolution and 2 GSa/s Sample Rate
Keysight 81150A Pulse Function Arbitrary Noise Generator with 240 MHz Sine 14-bit Vertical Resolution and 2 GSa/s Sample Rate
Keysight 81150A Pulse Function Arbitrary Noise Generator with 240 MHz Sine 14-bit Vertical Resolution and 2 GSa/s Sample Rate
Keysight 81150A Pulse Function Arbitrary Noise Generator with 240 MHz Sine 14-bit Vertical Resolution and 2 GSa/s Sample Rate
Specifications
MOQ :
1 Set
Vertical Resolution :
14-bit
Output Amplitude :
20 mVpp to 20 Vpp (into 50 Ohm)
Supply Ability :
in stock
Waveform Types :
Pulse, Sine, Square, Ramp, Triangle, Noise, Arbitrary
Brand Name :
Keysight
Certification :
CE, FCC, ISO 9001:2015
Sample Rate :
2 GSa/s
Sine Frequency Range :
1 uHz to 240 MHz
Price :
Negotiation
Place of Origin :
United States
Delivery Time :
3-5 working days for stock, 2-4 weeks for backorder
Dimensions :
133 x 426 x 375 mm
Payment Terms :
T/T,L/C,PayPal,Western Union
Packaging Details :
Original Keysight packaging with anti-static protection, export-grade corrugated carton with shock-proof foam inserts
Model Number :
81150A
Description
Keysight 81150A Pulse Function Arbitrary Noise Generator
1 µHz to 120 MHz Pulse | 240 MHz Sine | 14-bit | 2 GSa/s
Key Features
Four Instruments in One
Combines pulse generator, function generator, arbitrary waveform generator, and noise generator in a single unit
14-bit Vertical Resolution
High 14-bit resolution at 2 GSa/s sampling rate for precise and low-distortion waveform generation
Wide Frequency Coverage
Pulse up to 120 MHz and sine up to 240 MHz with 1 µHz frequency resolution for demanding applications
Built-in Noise Generation
Integrated noise source with selectable crest factor for analog and digital stress testing
Product Overview
The Keysight 81150A is a versatile four-in-one signal generation instrument that combines pulse, function, arbitrary waveform, and noise generation into a single benchtop unit. With 14-bit vertical resolution and a 2 GSa/s sampling rate, it produces exceptionally clean and precise waveforms from 1 µHz to 120 MHz for pulse signals and up to 240 MHz for sine output. The integrated noise generator with selectable crest factor enables realistic signal impairment simulation for stress testing analog and digital circuits. Comprehensive modulation capabilities including AM, FM, PM, PWM, and FSK make the 81150A ideal for communications testing, semiconductor characterization, and R&D applications. Standard LAN, USB, and GPIB interfaces support seamless integration into automated test systems.
Applications
  • Semiconductor device characterization and validation
  • Analog and digital circuit stress testing with noise injection
  • Communications system modulation testing (AM, FM, PM, FSK)
  • Arbitrary waveform replay for sensor and actuator simulation
  • Pulse parameter testing for high-speed digital designs
  • Clock generation and jitter tolerance testing
  • Automated test equipment (ATE) system integration
Technical Specifications
Parameter Specification
Pulse Frequency Range 1 µHz to 120 MHz
Sine Frequency Range 1 µHz to 240 MHz
Vertical Resolution 14-bit
Sample Rate 2 GSa/s
Output Amplitude (50 Ohm) 20 mVpp to 20 Vpp
Channel Count 1 Channel
Modulation Modes AM, FM, PM, PWM, FSK
Waveform Types Pulse, Sine, Square, Ramp, Triangle, Noise, Arbitrary
Interface LAN, USB, GPIB
Weight 9.5 kg (20.9 lb)
Dimensions (H x W x D) 133 x 426 x 375 mm
Warranty 1 Year Standard
