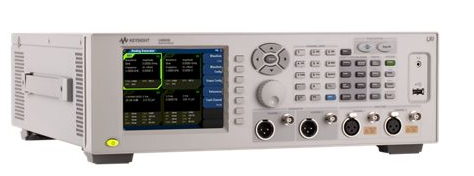

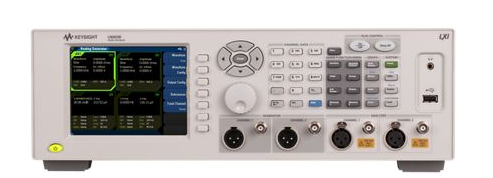

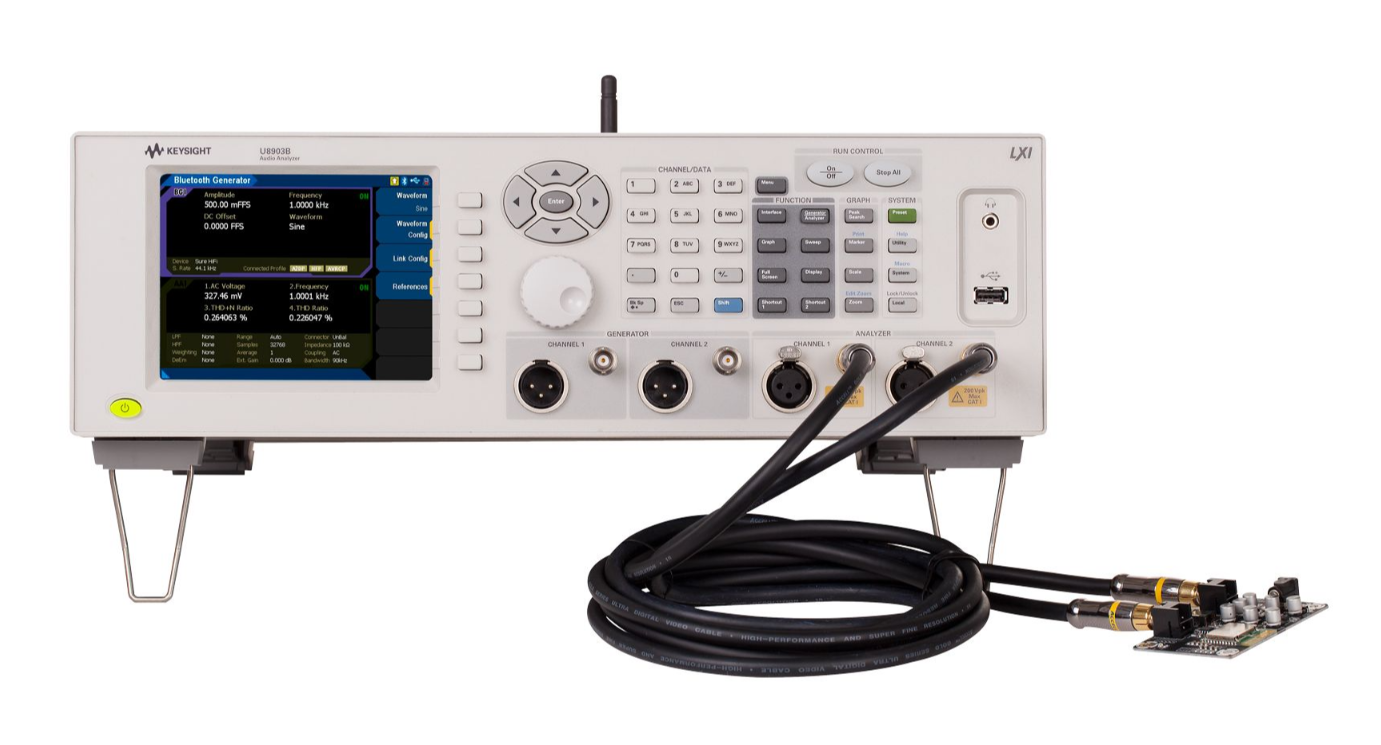

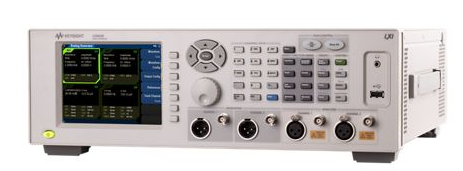

Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Keysight Agilent U8903B Audio Analyzer with 1.5 MHz Bandwidth for High-Resolution Audio Measurements and Low Residual Distortion < -110 dB
Specifications
Brand Name :
Keysight (Agilent)
Model Number :
U8903B
Certification :
ISO 17025
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
5-8 working day
Packaging Details :
carton
Maximum analysis bandwidth :
1.5 MHz
Maximum frequency :
80 kHz
Phase noise :
-110 dB @1 GHz (10 kHz offset)
Analog generator channels :
2
Analog analyzer channels :
2 (expandable to 8)
Residual distortion :
< -110 dB
Analog channels :
2 (expandable to 8)
Impedance :
50 ohm
Maximum bandwidth :
1.5 MHz
Description
Keysight Agilent AZ2-class Audio Analyzers U8903B, 1.5 MHz Maximum Analysis Bandwidth
Product Overview

Keysight's audio spectrum analyzer allows you to measure demanding audio devices. Get the highest-resolution audio measurements with U8903B audio analyzers.

Key Features

Highest-Resolution Audio Spectrum Analyzers to Reveal Your Device's True Performance

The standard U8903B Performance Audio Analyzer includes:

  • U8903B-STD performance audio analyzer with 2 analog generator channels and 2 analog analyzer channels
  • Certificate of Calibration
  • Safety Notices
  • Supplied accessories: USB cables and power cord (plug matches destination requirements)

With an extremely low residual distortion of < -110 dB, the Keysight U8903B audio spectrum analyzer allows you to measure the most demanding audio devices with a high degree of accuracy. Make the highest resolution two-channel measurements available when you expand your bandwidth to 1.5 MHz.

  • Expand your measurement bandwidth (with the wide bandwidth option N3431A) to measure from DC or 10 Hz to a maximum of 1.5 MHz
  • Simplify your testing environment with automatic tests and built-in test sequences
  • Configure the U8903B audio spectrum analyzer with up to eight analog analyzer channels
  • Eliminate the need to rewrite programs into SCPI command with built-in compatibility mode
  • Easily meet standards with preconfigured Perceptual Objective Listening Quality Analysis (POLQA) measurements
  • Configure for specific applications with a digital audio interface audio measurement options
  • Characterize signal-to-noise ratios, cross talk, and more
Available Options
Option Code Description
U8903B-STD Performance audio analyzer, 2 channels
U8903B-AN4 Analog analyzer, 4 channels
U8903B-AN8 Analog analyzer, 8 channels
U8903B-DGT Digital audio card
U8903B-201 4 analog analyzer channels and digital audio card
U8903B-212 96 kHz bandwidth, 2 channels with 50 ohm impedance
N3431A/N3431A 1.5 MHz
N3432B/N3432B POLQA measurement software
U8903A-101 Male BNC to male BNC cable, 1.2 m
U8903A-102 Male BNC to male RCA cable, 2 m
U8903A-103 Male XLR to female XLR cable 2 m
U8903B-105 Digital serial interface cable
U8903A-107 Cable, accessory - Male XLR - 2 male BNC analyzer, 0.26 m
U8903A-108 Cable, accessory - Female XLR - 2 male BNC generator, 0.26 m
Frequently Asked Questions
1. Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
