Specifications
Packaging Details :
carton
Certification :
ISO 17025
Payment Terms :
T/T
Maximum frequency :
1 MHz
Accurate C-D testing :
0.05%, 0.0005 (specification), 0.042%, 0.0003 (typical)
Brand Name :
Keysight (Agilent)
Supply Ability :
in stock
Condition :
Used
High-speed measurement :
2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz)
Type :
Benchtop
Place of Origin :
Malaysia
Target DUT :
Capacitors
MOQ :
1 set
Delivery Time :
5-8 working day
Model Number :
E4981B
Price :
Negotiation
Description
Keysight Agilent E4981B Benchtop LCR Meters, 120 Hz / 1 kHz/ 1 MHz
Product Overview

The Keysight Technologies, Inc. E4981B capacitance meter provides the best performance for ceramic capacitor manufacturing tests. Offering fast measurement speed and outstanding accuracy, the E4981B is the new standard in the industry.

The E4981B capacitance meter offers high speed with reliable measurements for ceramic capacitor testing in production lines. It enables accurate capacitance measurements from small to large values, contributing to improved test throughput while maintaining excellent component quality for ceramic capacitor testing.

Key Features
  • Basic Accuracy: 0.05%, 0.0005 (specification), 0.042%, 0.0003 (typical)
  • Measurement Time: 2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz)
  • 9 Bin Sorting capability
  • 256 multi-channel correction
  • Compatible SCPI command and Handler/Scanner interfaces with the 4268A, 4288A, and E4981A
  • Test signal level compensation for high-value ceramic capacitor tests
  • Versatile PC connectivity (LAN, USB and GPIB)
Complete Solution Benefits
  • Fast measurement speed - 2.3 ms (from trigger to EOM at 1 MHz)
  • Accurate and repeatable measurements, even for small capacitance values
  • Wide measurement range from 0 F to 2.0 mF:
    • 0 F to 1.5 nF/1 MHz
    • 68 pF to 200 nF/1 kHz
    • 6.8 nF to 2 mF/120 Hz
  • Compatibility with 4268A, 4288A, and E4981A:
    • SCPI commands
    • Handler I/F
    • Scanner I/F
  • Enhanced functions for production testing:
    • Enhanced contact failure detections
    • Synchronous source
    • Frequency shift (±1%, ±2%) at 1 MHz
    • Faster data transfer
Available Options
Option Code Description
001 Frequency, 120 Hz / 1 kHz/ 1 MHz
002 Frequency, 120 Hz / 1 kHz
1CM Rack mount kit
600 Delete front
ABA U.S. - English localization
1A7 ISO 17025 compliant calibration
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.

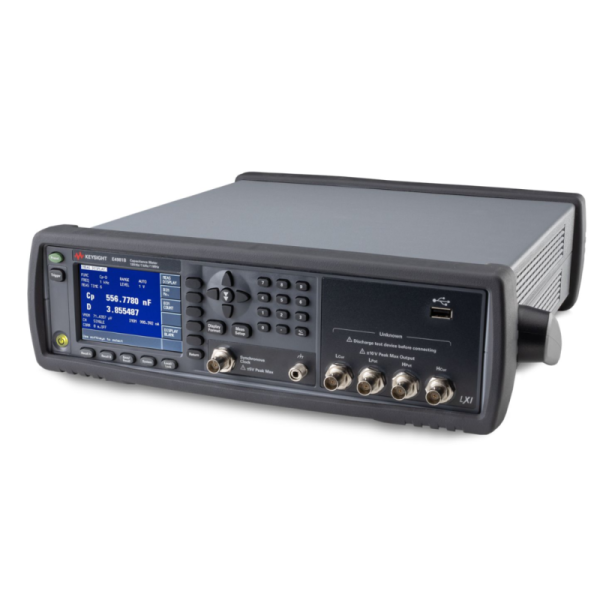

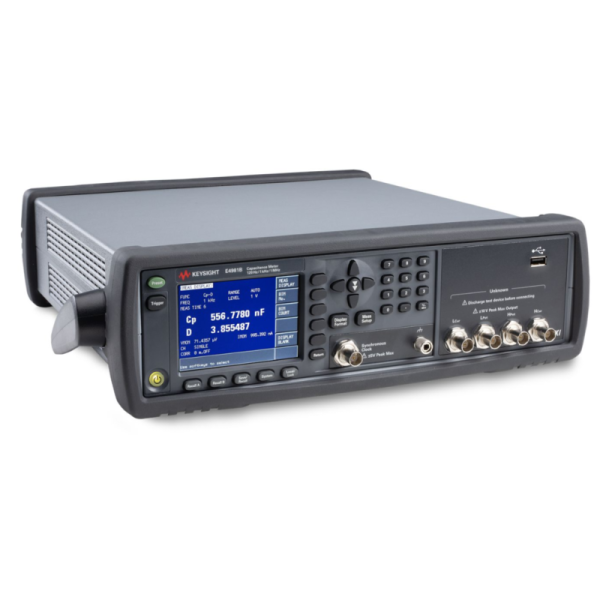

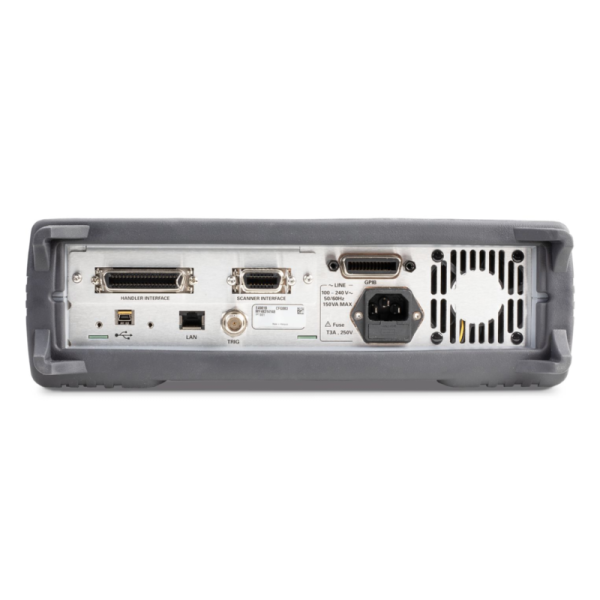

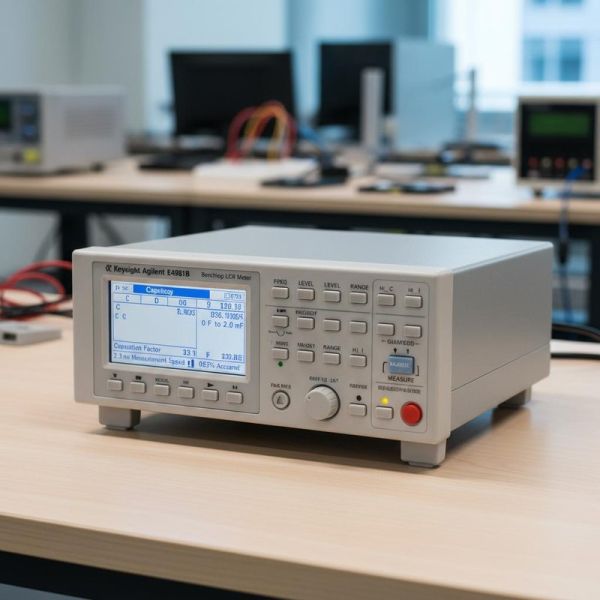

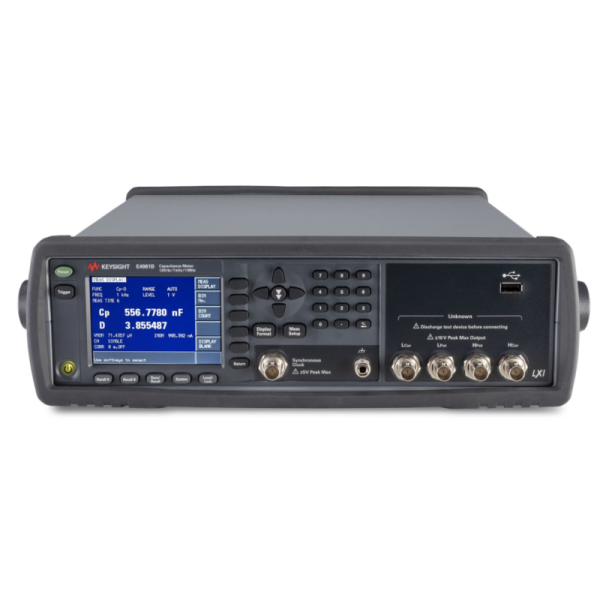

Product Images
