Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
Specifications
Brand Name :
Keysight（Agilent）
Model Number :
N7745A
Certification :
ISO17025
Place of Origin :
Malaysia
MOQ :
1set
Price :
Negotiation
Supply Ability :
in stock
Delivery Time :
5-8 working day
Packaging Details :
carton
condition :
used
Power uncertainty :
±2.5 %
bandwidth :
up to 240 kHz 3dB
wavelength range :
1250 to 1650 nm
minimum averaging time :
1 µs
Polarization dependence :
<±0.01 dB
Sensor ports :
8
Description

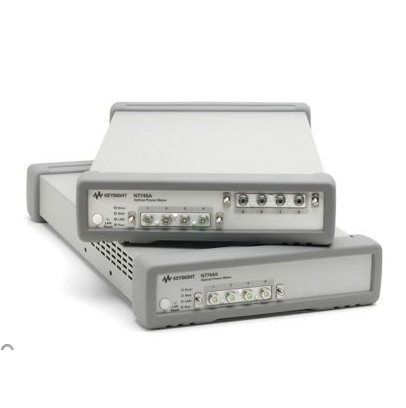

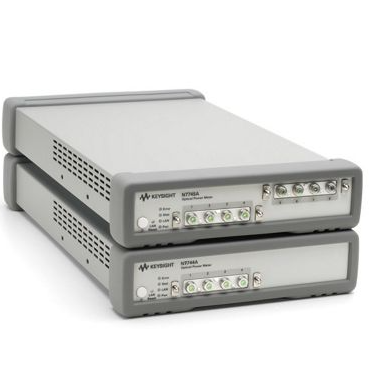

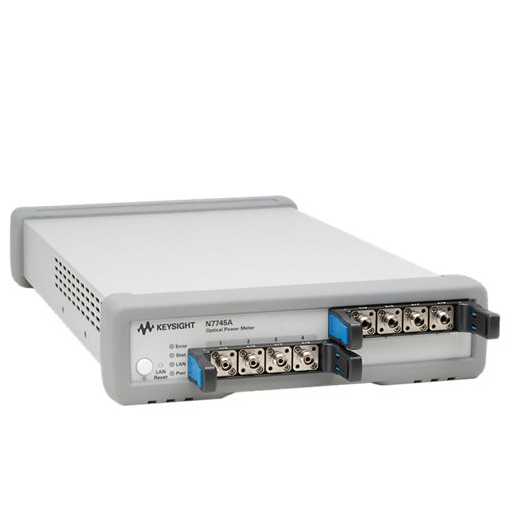

Keysight N7745A Optical Multiport Power Meter
Product Overview

Keysight's N7745A optical power meters with eight power-sensor channels provide increased throughput and operational efficiency to meet today's manufacturing challenges. Designed for characterizing optical multiport components, these optical power meters offer industry-leading solutions for device connectivity, high-speed measurement data acquisition, and fast data transfer for post-processing.

The multiport power meter enables fast measurement solutions for all multiport devices including multiplexers, PON splitters, wavelength selective switches (WSS), ROADMs, and compact setups for simultaneous testing of multiple single-port devices.

Key Features
  • 8 sensor ports with high channel density
  • 1 µs minimum averaging time
  • Dynamic range up to 65dB in swept and logging applications without ranging
  • Power uncertainty of ±2.5%
  • Low polarization dependence of <±0.01 dB
  • 1250 to 1650 nm wavelength range
  • 4-port optical connector interface for FC, SC, LC, MU and bare-fiber
  • Memory for 1 M samples/port plus 1 M/port buffer for continuous logging
  • Fully compliant to LXI specifications
  • LAN, USB and GPIB programming interfaces
  • Code compatibility with Keysight's Lightwave measurement system platform
  • High bandwidth, up to 240 kHz 3dB-cutoff
Performance Benefits
Measurement Speed
  • 10x faster than previous measurement solutions
  • High-speed measurement data acquisition up to 1 million samples/second
  • 25x higher time resolution for transient analysis
  • Short minimum averaging time of 1 µs
Device Connectivity
  • Industry-leading solutions to separate connecting tasks from measurement tasks

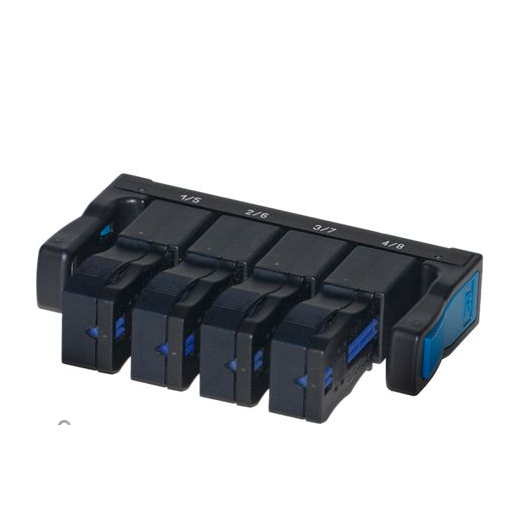

  • Fibers can be comfortably attached to the quad-adapter away from the power meter
  • Quad-adapter supports MU, FC, SC and LC connectors, as well as bare fiber connectors
System Flexibility
  • Instrument can be controlled via LAN, USB, and GPIB for compatibility with existing equipment
  • Comprehensive hardware and trigger concept with large memory storage adapts to various test needs
  • Instrument programming code compatible with Lightwave solution platform
Product Images
Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth Keysight N7745A Optical Multiport Power Meter with ±2.5% Uncertainty, 1250-1650 nm Wavelength Range, and 240 kHz Bandwidth
