TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
Specifications
Withstanding Voltage :
1500V r.m.s,at sea level
IP Level :
IP67
Price :
Negotiable
Vibration   :
150m/s^2(10-500HZ),10g
Supply Ability :
In stock
Frequency Range :
Dc-11GHz
Working Voltage :
500V r.m.s,at sea level
Model Number :
TNC-C-KY1.13
Tempreture Range :
-55°C~+155°C
Delivery Time :
1-3 Working days
Payment Terms :
T/T,Western Union
Description

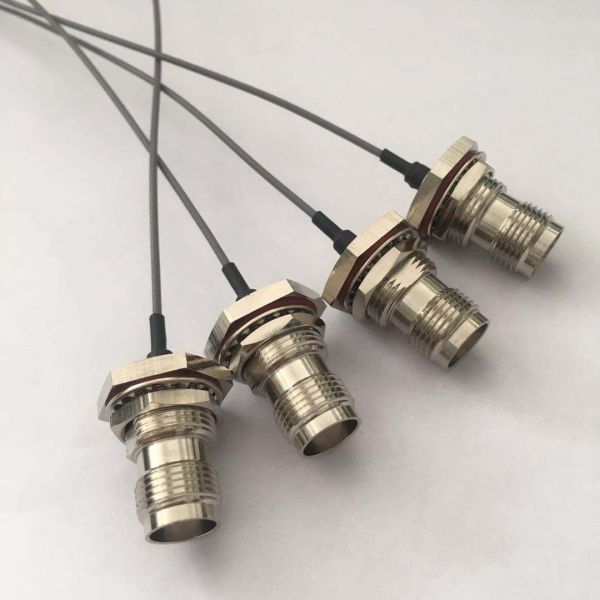

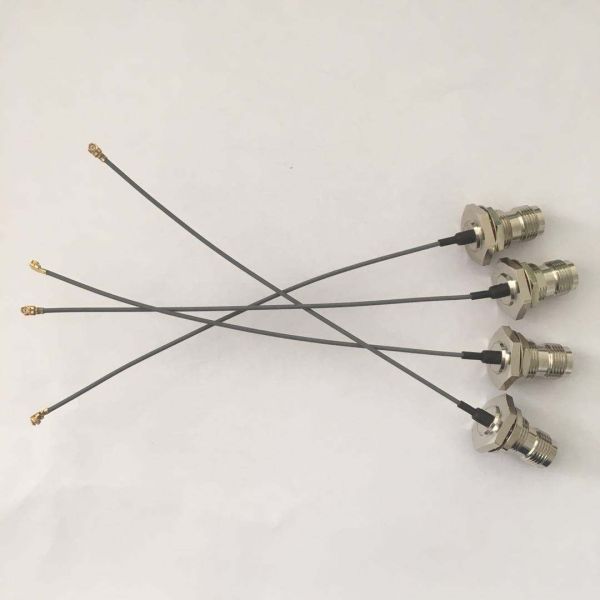

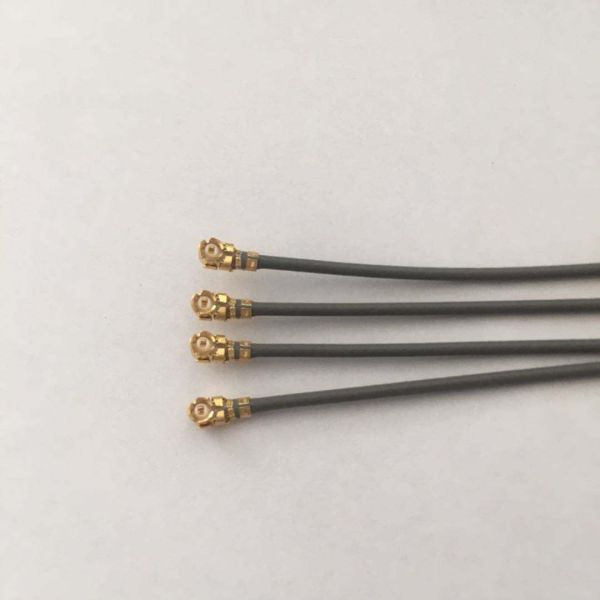

TNC Female Connector to Ufl Cable Assembly With Cable 1.13 1.37
Product Overview

TNC series connectors feature a screw-coupling design similar to BNC connectors, operating at 50 ohms impedance. These connectors offer wide frequency band, convenient connection, vibration resistance, and reliable electrical and mechanical properties. Ideal for computer networks, electrical instruments, and microwave systems including TV microwave stations, car-carried phones, aerospace, navigation, and radar surveillance.

Key Specifications
Application RF Type TNC Ufl
Rated Current 0 Rated Voltage 0
IP Level IP67 Contact Material Brass
Housing Material Brass Gender Female
Model Number TNC-C-KY1.13 Product Name TNC CONNECTOR
VSWR 1.15 Frequency 0~3GHz
Packaging Information
Selling Units Single item Package Size 1×1×1 cm
Gross Weight 0.010 kg

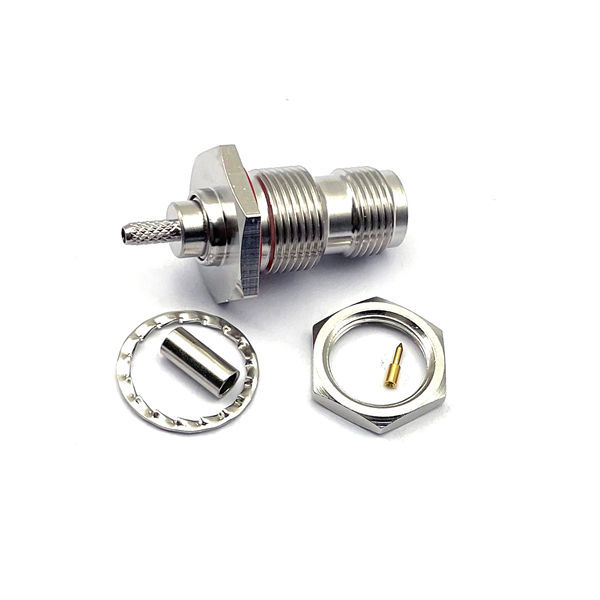

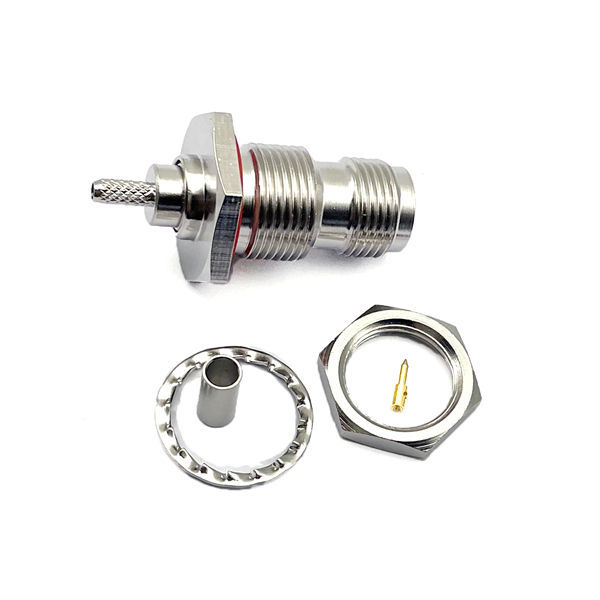

Product Images
TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage TNC Female Connector to Ufl Cable Assembly with IP67 Waterproof DC-11GHz Frequency Range and 1500V Withstanding Voltage
Environmental Conditions
Temperature Range -55°C to +155°C
Frequency Range DC-11GHz
Impedance 50Ω
Working Voltage 500V r.m.s at sea level
Vibration 150m/s² (10-500Hz), 10g
Salt Spray Test 5% NaCl solution; test time ≥48h
Waterproof Sealing IP67
Technical Characteristics
Withstanding Voltage 1500V r.m.s at sea level
Contact Resistance - Center ≤10mΩ
Contact Resistance - Outer ≤2.5mΩ
Insulation Resistance ≥5000MΩ
Center Contact Retention Force ≥0.57N
Coupling Nut Retention Force ≤20N
Insertion Loss 0.2dB/6GHz
VSWR - Straight ≤1.22/3GHz
VSWR - Right Angle ≤1.30/3GHz
Shielding Efficiency ≥60dB/3GHz
Disengagement Force ≤445N
Durability (Matings) ≥500 cycles
Average Power ≤0.50kW
