TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
Specifications
Salt-fog test :
>48h
Delivery Time :
5 working day
Outer contact resistance :
≤2.5mΩ
Withstanding voltage :
500V
Center contact resistance :
≤10mΩ
Certification :
ISO9001/ISO14001/TS16949
Supply Ability :
in stock
Model Number :
TNC-JW3
VSWR :
1.15
Packaging Details :
carton
Price :
Negotiation
Frequency range :
0~3GHz
Description
TNC Male Plug Clamp Right Angle Elbow RF Coaxial Connector
TNC Male Plug Clamp Right Angle Elbow RF Coaxial Connector for 5D-FB LMR300 RG6 Cable RF Coaxial Connector
Technical Specifications
Application Wire Connections
Type TNC
IP Level IP67
Contact Material Copper Gold Plating
Housing Material Brass
Gender Male
Shape Round
Model Number TNC-JW3
Frequency 0~3GHz
VSWR 1.15
Plating Ni
Withstanding Voltage 500V
Center Contact Resistance ≤10mΩ
Outer Contact Resistance ≤2.5mΩ
Salt-fog Test >48h

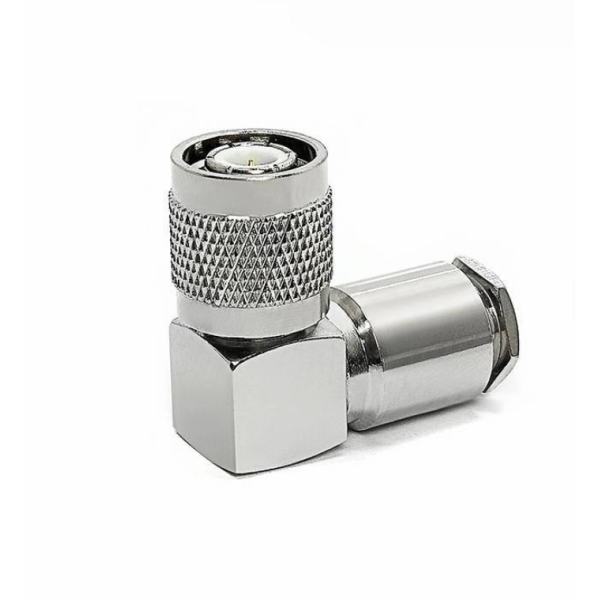

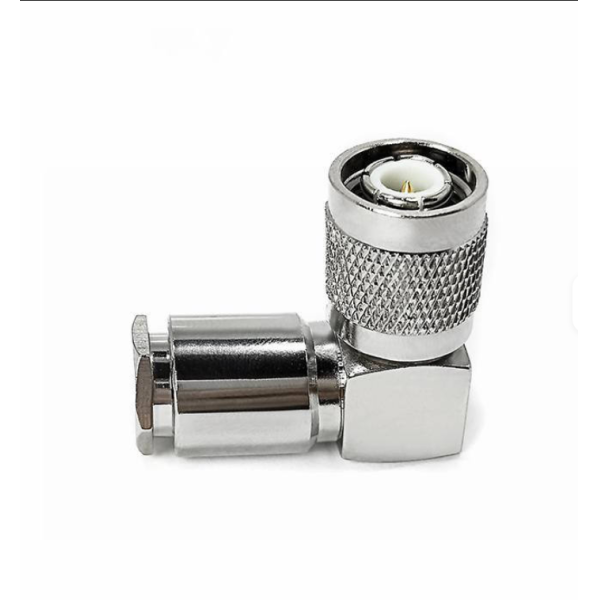

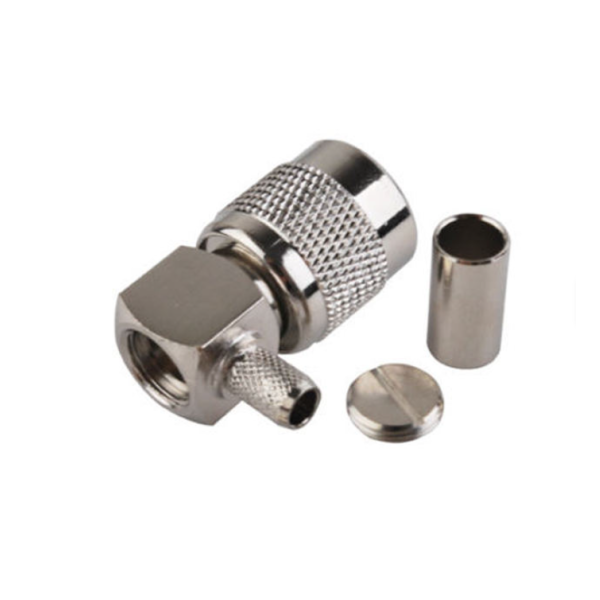

Product Images
TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency TNC Male Plug Right Angle Elbow RF Coaxial Connector with IP67 Rating for 0~3GHz Frequency
Frequently Asked Questions
What delivery methods do you use, and what is the delivery time?
We ship via EMS, DHL, FedEx, UPS, and TNT with tracking numbers. Delivery typically takes 4-7 business days.
How are duties and taxes handled?
Duties and taxes vary by country and are usually the buyer's responsibility. Please check local import regulations for details.
What are your payment terms?
We require 100% T/T payment before shipment.
How can I ensure the quality of products purchased internationally?
We work with reputable suppliers and conduct thorough inspections before shipping. Warranties are available for most products—please check for specific terms.
What should I do if my shipment is delayed?
Check the tracking information provided. If there are delays, contact us or the carrier directly for updates.
Do you offer discounts for bulk orders?
Yes, discounts may be available for bulk purchases. Please contact us to discuss your specific requirements.
