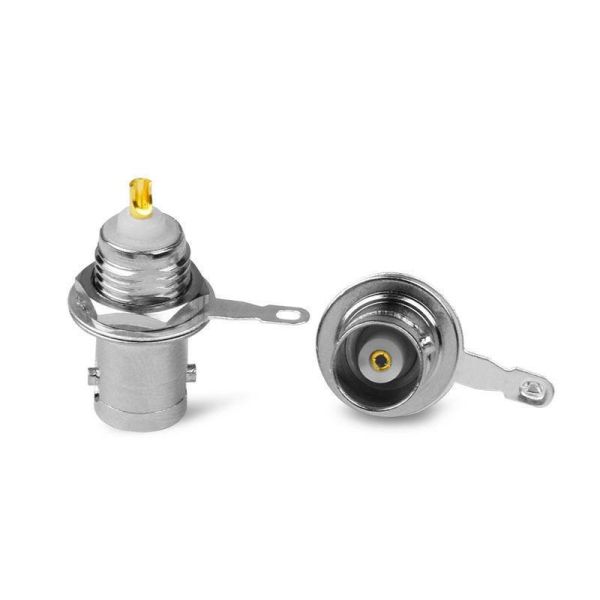

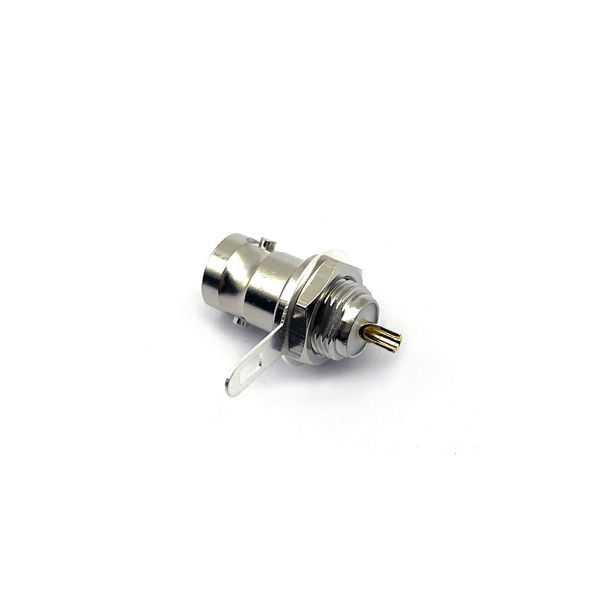

BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
Specifications
Delivery Time :
1-3 Working days
Vibration   :
100m/s^2(10-500HZ),10g
Model Number :
BNC-k
Withstanding Voltage :
1500V r.m.s,at sea level
Tempreture Range :
-55°C~+155°C(PE Cable -40°C~+85°C)
IP Level :
IP67
Frequency Range :
Dc-4GHz
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
In stock
Working Voltage :
500V r.m.s,at sea level
Description
BNC Female in two Rows PCB Mount RF Connectors
Product Overview

The BNC series are bayonet-lock standard coaxial connectors with characteristic impedances of 50Ω or 75Ω. These connectors feature rapid engagement and disengagement, high reliability, and simple structure. They are designed for connecting RF coaxial cables in IT, industrial networks, medical equipment, data communication, video systems, and broadcast applications.

Key Specifications
Application RF Type BNC
Pin Contact Gold plated Brass Bodies Nickel-plated Brass
Socket Contact Gold-plated Beryllium copper Contact Material Phosphor Bronze
Housing Material Brass Gender Female
Model Number BNC-k Product Name BNC Type RF Coaxial Connector
Waterproof Sealing IP67 Frequency DC~4 GHz
Packaging Information
Selling Units Single item
Package Dimensions 5×2×2 cm
Unit Weight 0.050 kg
Key Features
  • Bayonet-lock standard coaxial connectors
  • Rapid engagement and disengagement
  • High reliability and simple structure
  • 50Ω or 75Ω characteristic impedance options
  • IP67 waterproof sealing rating
  • Suitable for IT, industrial networks, medical equipment, and broadcast applications
BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount BNC Female RF Connector with IP67 Waterproof Rating, DC-4GHz Frequency Range, and Gold Plated Contacts for PCB Mount
Environmental Conditions
Temperature Range -55°C to +155°C (PE Cable -40°C to +85°C)
Frequency Range DC-4GHz
Impedance 50Ω
Working Voltage 500V r.m.s at sea level
Vibration 100m/s² (10-500Hz), 10g
Salt Spray Test 5% NaCl solution; test time ≥48h
Waterproof Sealing IP67
Technical Characteristics
Withstanding Voltage 1500V r.m.s at sea level
Contact Resistance - Center ≤1.5mΩ
Contact Resistance - Outer ≤1mΩ
Insulation Resistance ≥5000MΩ
Center Contact Retention Force ≥0.57N
Coupling Nut Retention Force ≤20N
Insertion Loss 0.2dB/6GHz
VSWR - Straight ≤1.22/3GHz
VSWR - Right Angle ≤1.30/3GHz
Shielding Efficiency ≥55dB/3GHz
Disengagement Force ≤445N
Durability (Mating Cycles) ≥500 cycles
