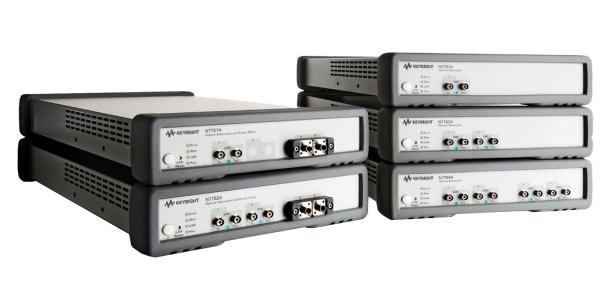

Keysight N7752A Dual Channel Optical Attenuator Power Meter with 1260nm to 1640nm Wavelength Range and 0.01dB Resolution
Keysight N7752A Dual Channel Optical Attenuator Power Meter with 1260nm to 1640nm Wavelength Range and 0.01dB Resolution
Keysight N7752A Dual Channel Optical Attenuator Power Meter with 1260nm to 1640nm Wavelength Range and 0.01dB Resolution
Keysight N7752A Dual Channel Optical Attenuator Power Meter with 1260nm to 1640nm Wavelength Range and 0.01dB Resolution
Keysight N7752A Dual Channel Optical Attenuator Power Meter with 1260nm to 1640nm Wavelength Range and 0.01dB Resolution
Keysight N7752A Dual Channel Optical Attenuator Power Meter with 1260nm to 1640nm Wavelength Range and 0.01dB Resolution
Specifications
Connector Type :
FC/APC or FC/PC
Fiber Type :
9/125 um SMF 28
Resolution :
0.01dB
Place of Origin :
Malaysia
MOQ :
1 Set
Insertion Loss :
<= 1.2dB typical
Packaging Details :
Export-grade foam padded carton with anti-static protection
Certification :
ISO 17025, CE
Price :
Negotiable
Payment Terms :
T/T,PayPal,Western Union
Interface :
USB, LAN, GPIB
Brand Name :
Keysight Technologies
Model Number :
N7752A
Channels :
2 Attenuation + 2 Power Meter
Description
Keysight N7752A Dual Channel Optical Attenuator Power Meter 1260nm to 1640nm High Precision Fiber Optic Test System
Keysight N7752A 2-Channel Optical Attenuator and Power Meter

The Keysight N7752A is a high-performance 2-channel optical attenuator and power meter designed for precision fiber optic testing in transceiver manufacturing and network integration environments. Operating across a wavelength range of 1260nm to 1640nm, the N7752A combines fast attenuation setting, active power control, and accurate optical power measurement into a compact half-width rack unit. With 0.01dB resolution, 20ms settling time, and a built-in InGaAs power meter, it delivers exceptional throughput and measurement accuracy for multi-channel optical component characterization.

Key Features
  • 2 independent optical attenuator channels with built-in power monitoring and control
  • 2 additional optical power meter channels for convenient measurements and setup calibration
  • Wide wavelength range from 1260nm to 1640nm covering all mainstream telecom bands
  • High precision 0.01dB resolution for both attenuation and power setting modes
  • Ultra-fast settling time of 20ms for attenuation and 100ms for power control
  • Attenuation range from 0 to 40dB with 45dB typical maximum
  • Power setting range from -50dBm to +20dBm with active power control feedback
  • Selectable attenuation transition speed from 0.1 to 1000dB/s
  • Low insertion loss of 1.2dB typical for minimal signal degradation
  • FC/APC angled or FC/PC straight contact connector options available

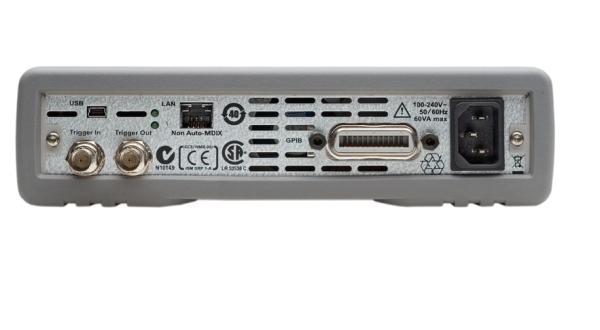

  • USB, LAN, and GPIB interfaces for flexible remote control and automation
  • Compact half-width rack form factor saves valuable bench and rack space
Applications
  • Optical transceiver bit-error-ratio (BER) and sensitivity testing
  • Multi-channel optical network integration and system verification
  • Parallel optical component characterization in manufacturing
  • ROADM and DWDM network link simulation and testing
  • Fiber optic receiver sensitivity calibration
  • Optical amplifier gain and noise figure measurement
Technical Specifications
Parameter Specification
Channels 2 Attenuation + 2 Power Meter
Wavelength Range 1260nm to 1640nm
Attenuation Range 0 to 40dB (45dB typical)
Power Setting Range -50dBm to +20dBm
Resolution 0.01dB
Relative Accuracy +/- 0.05dB + 300pW
Settling Time 20ms (attenuation), 100ms (power)
Insertion Loss <= 1.2dB typical
Return Loss > 45dB typical
Max Input Power +23dBm
Transition Speed 0.1 to 1000dB/s selectable
Power Meter Type InGaAs, -80dBm to +10dBm
Fiber Type 9/125 um SMF 28
Interface USB, LAN, GPIB
Our Services
  • Full performance verification and calibration before shipment
  • 90-day standard warranty with extended options available
  • Lifetime technical support and remote setup assistance
  • Worldwide shipping via DHL, FedEx, UPS with full tracking and insurance
FAQ
Q: What connector types are available?
A: FC/APC angled (Option -022) or FC/PC straight (Option -021) connector interfaces are available. Please specify when ordering.
Q: Is the unit fully calibrated?
A: Yes, each N7752A undergoes complete performance verification and calibration before delivery.
Q: What software is included?
A: N77xx Viewer GUI software for Windows is included for convenient instrument control and configuration.
Q: Do you ship internationally?
A: Yes, worldwide shipping via DHL, FedEx, or UPS with full tracking and insurance.
