PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture High Damage Threshold and 200 µJ to 10 J Measurement Range
Specifications
Condition :
NEW
Repetition rates :
up to 250 Hz
Packaging Details :
carton
Model Number :
PE50BF-DIFH2-
Supply Ability :
in stock
Weight :
0.055kg
Price :
Negotiation
Place of Origin :
Israel
MOQ :
1 set
Payment Terms :
T/T
Brand Name :
Ophir
Delivery Time :
5-8 working day
Type :
Handheld
Description

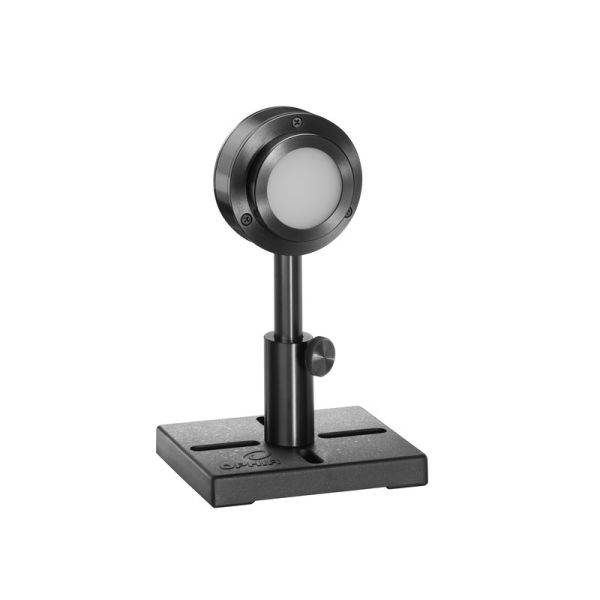

PE50BF-DIFH2-C Pyroelectric Energy Sensor with 35 mm Aperture and High Damage Threshold Diffuser
Product Overview

The PE50BF-DIFH2-C pyroelectric energy sensor features a high damage threshold diffuser designed for concentrated beams. With a 35 mm aperture, it measures energies from 200 µJ up to 10 J. The sensor withstands damage thresholds of 8 J/cm² for ns pulses, operates at repetition rates up to 250 Hz, and covers spectral ranges from 355 to 2200 nm and 2940 nm.

Key Features
  • BF absorber with 355-2200 nm spectral range
  • 200 μJ to 10 J pulse energy measurement range
  • High damage threshold for pulsed lasers with concentrated beams
  • 20 ms maximum pulse width
  • Repetition rates up to 250 Hz
Specifications
  • Product Name: PE50BF-DIFH2-C
  • Aperture Size: Ø35 mm
  • Absorber Type: BF
  • Spectral Range: 355-2200, 2940 nm
  • Minimum Pulse Energy: 200 µJ
  • Maximum Pulse Energy: 10 J
  • Maximum Frequency: 250 Hz
  • Maximum Average Power: 25 W
  • Maximum Average Power Density: 200 W/cm²
  • Maximum Pulse Width: 20 ms
  • Damage Threshold (100 ns): 8 J/cm²
  • Damage Threshold (2 ms): 200 J/cm²
  • Diffuser: Yes
  • Cable Length: 1.5 m
  • Dimensions: Ø62 x 31 mm
  • CE Compliance: Yes
  • UKCA Compliance: Yes
  • China RoHS Compliance: Yes
Ordering Information
Item Description P/N
PE50BF-DIFH2-C PE50BF-DIFH2-C Pyroelectric Energy Sensor, BF/Diffuser, 200 µJ to 10 J, Ø35 mm, 0.355-2.2/2.94 µm, High Damage Threshold 7Z02959
PE50BF-DIFH2-C with 5m cable PE50BF-DIFH2-C Pyroelectric Energy Sensor, BF/Diffuser, 200 µJ to 10 J, Ø35 mm, 0.355-2.2/2.94 µm, High Damage Threshold with 5m cable 7Z02959B
Frequently Asked Questions
Can you ship orders to Canada or Australia?

Yes, we can. We send orders worldwide.

What delivery method do you use and what is the delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other question?

You can contact us online or leave us messages below.
