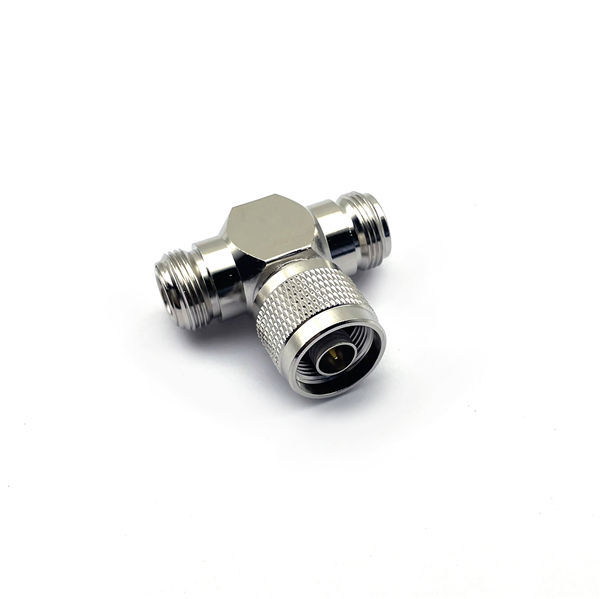

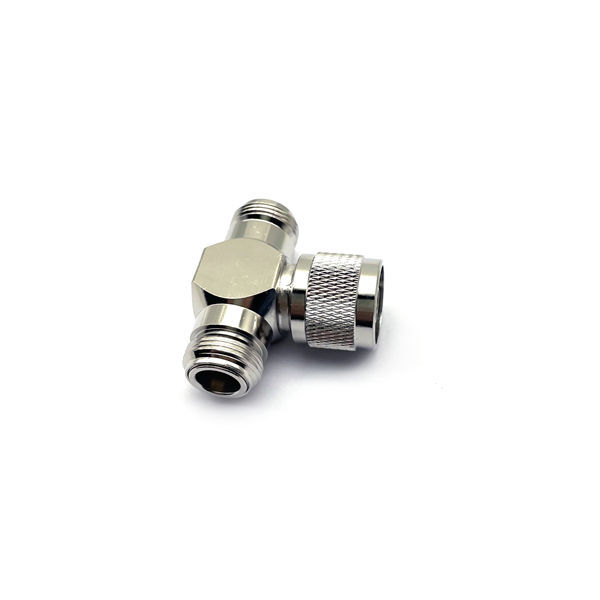

N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
Specifications
Housing Material :
Brass
Contact Material :
Phosphor Bronze
Delivery Time :
1-3 Working days
IP Level :
IP67
Type :
N adaptor
Price :
Negotiable
Tempreture Range :
-55°C~+155°C(PE Cable -40°C~+85°C)
Supply Ability :
In stock
Model Number :
N Type
Payment Terms :
T/T,Western Union
Gender :
Male/Female
Description
N Type Tee Male Female Adapter, N Type Adapter T Shape 3 Ways
Product Overview

Straight / Right Angle N Male Connector Crimp Type for RG316 RG174

Key Specifications
ApplicationRFTypeN
Rated Current0Rated Voltage0
IP LevelIP67Contact MaterialPhosphor Bronze
Housing MaterialBrassGenderMale/Female
ShapeRoundModel NumberN-JJJ
TypeN adaptorFrequency0~3GHz
VSWR1.2MaterialBrass
PlatingNi
Packaging Information
Selling UnitsSingle item
Package Size1×1×1 cm
Gross Weight0.010 kg
Product Highlights

N series are very popular screw-coupling middle-or-low power coaxial connectors with impedances of 50 ohms and 75 ohms. They are widely used for electrical instruments or applications where vibration resistance and environmental protection is required, including communication equipment, coaxial components, duplexers, couplers, microwave testing system and microwave network or connecting RF cables. Connected with high accuracy semi-flexible or semi-rigid cables N connectors can work up to 11GHz resulting in low VSWR.

Applications
  • 5G Telecommunication
  • Antennas
  • Wireless Infrastructure
  • Aerospace
  • Medical Equipment
  • GPS/Navigation
  • IoT Devices
  • Broadcast
  • Base Station
Product Images
N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications N Type Tee Male Female Adapter with IP67 Waterproof Brass Housing and 50Ω Impedance for RF Applications
Environmental Conditions
Temperature Range-55°C to +155°C (PE Cable -40°C to +85°C)
Frequency RangeDC-11GHz
Impedance50Ω
Working Voltage1000V r.m.s, at sea level
Vibration100m/s² (10-500Hz), 10g
Salt Spray Test5% NaCl solution; test time ≥48h
Waterproof SealingIP67
Technical Characteristics
Withstanding Voltage2500V r.m.s, at sea level
Contact Resistance
Center Contact≤1mΩ
Outer Contact≤1mΩ
Insulation Resistance≥5000MΩ
Center Contact Retention Force≥0.56N
Coupling Nut Retention Force≤450N
Insertion Loss0.24dB/6GHz
Voltage Standing Wave Ratio
Straight≤1.15/6GHz
Right Angle≤1.25/6GHz
RF Leakage Measured≥90dB/3GHz
Average Power≤0.60KW/3GHz
Durability (Matings)≥500 cycles
