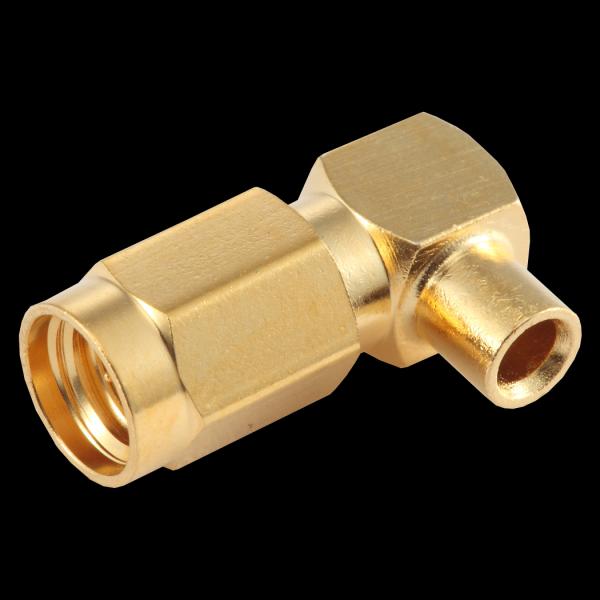

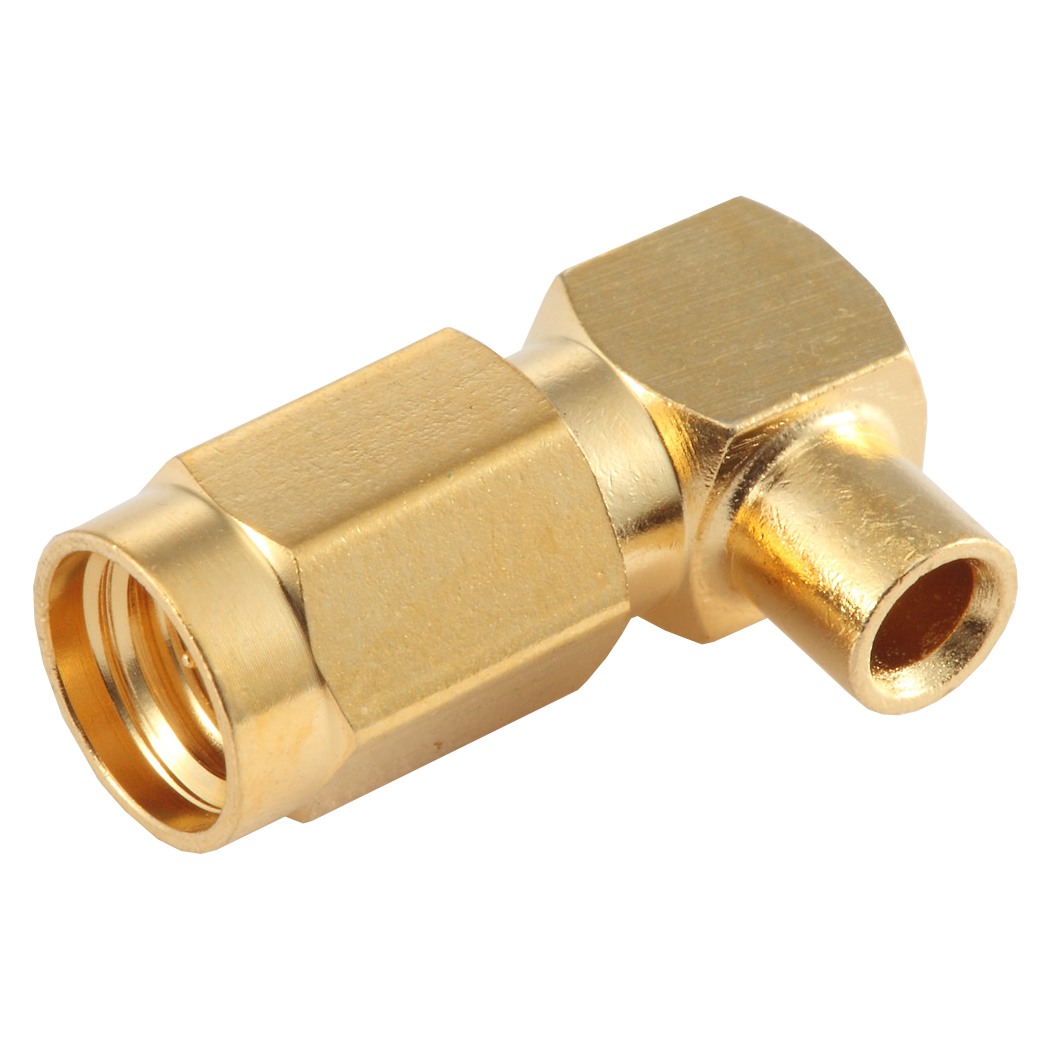

SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
Specifications
Supply Ability :
In stock
Tempreture Range :
-55°C~+155°C
Vibration   :
100m/s^2(10-500HZ),10g
Impedance（Ω） :
50
Frequency Range :
Dc-35GHz
IP Level :
IP67
Payment Terms :
T/T,Western Union
Price :
Negotiable
Model Number :
SSMA Connector
Delivery Time :
1-3 Working days
Working Voltage :
250V r.m.s,at sea level
Description
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable
Product Overview

RF Connector BNC Female Bulkhead Mount Connector

Type Jack Model Number SSMA
Packaging Carton Description SSMA Connector
Contact Material Brass/BeCu Contact Material Brass
Material Brass Gender Male
Frequency 0~6GHz Impedance(Ω) 50
VSWR ≤1.15 Orientation Straight
Termination Style PCB Body Finish Gold
Body Material Brass Contact Finish Gold
Packaging Information
Selling Units Single item

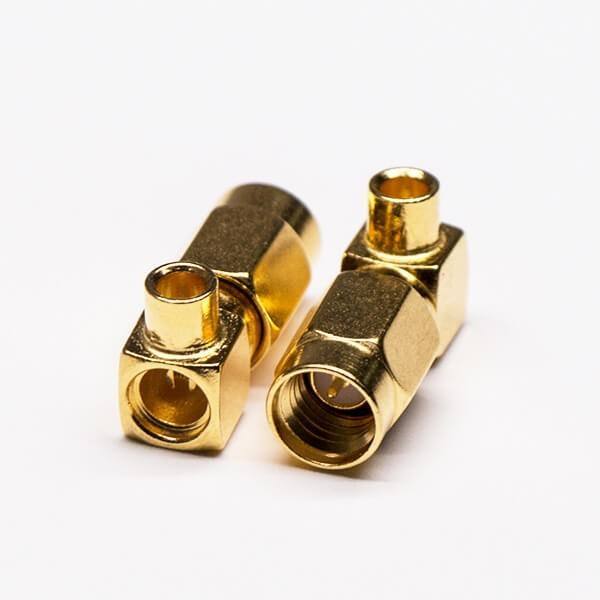

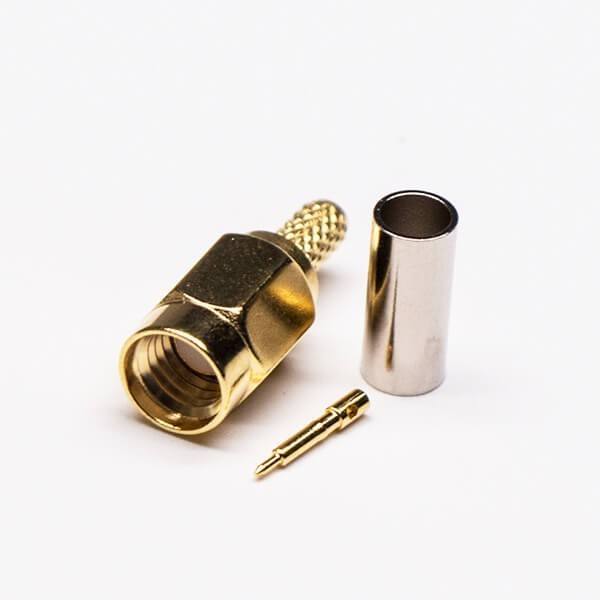

Product Gallery
SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact SSMA RF Connector Male Crimp Type for RG316 RG174 Coaxial Cable with DC-35GHz Frequency Range, IP67 Waterproof Sealing, and Gold-Plated Brass Contact
Environmental Conditions
Temperature Range -55°C~+155°C
Frequency Range DC-35GHz
Impedance 50Ω
Working Voltage 250V r.m.s, at sea level
Vibration 100m/s²(10-500Hz), 10g
Salt Spray Test 5% NaCl solution; test time ≥48h
Waterproof Sealing IP67
Technical Characteristics
Withstanding Voltage 750V r.m.s, at sea level
Contact Resistance
Center Contact ≤4mΩ
Outer Contact ≤2.5mΩ
Insulation Resistance ≥1000MΩ
Center Contact Retention Force ≥0.26N
Coupling Nut Retention Force ≤100N
Insertion Loss 0.2dB/6GHz
Voltage Standing Wave Ratio ≤1.07+0.10f(GHz)
RF Leakage Measured ≥90dB/1GHz
Durability (Matings) ≥500 cycles
