N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
Specifications
IP Level :
IP65
Tempreture Range :
-55°C~+155°C(PE Cable -40°C~+85°C)
Price :
Negotiable
Supply Ability :
In stock
Contact Material :
Phosphor Bronze
Model Number :
N Type
Gender :
Female
Payment Terms :
T/T,Western Union
Delivery Time :
1-3 Working days
Type :
N Connector
Housing Material :
Brass
Description

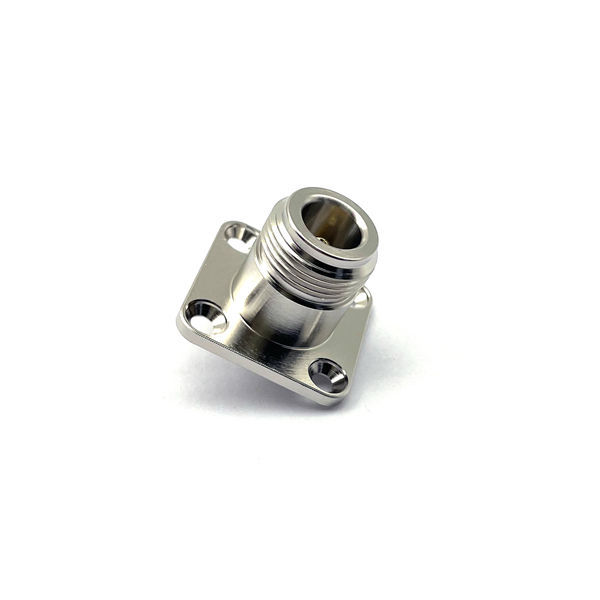

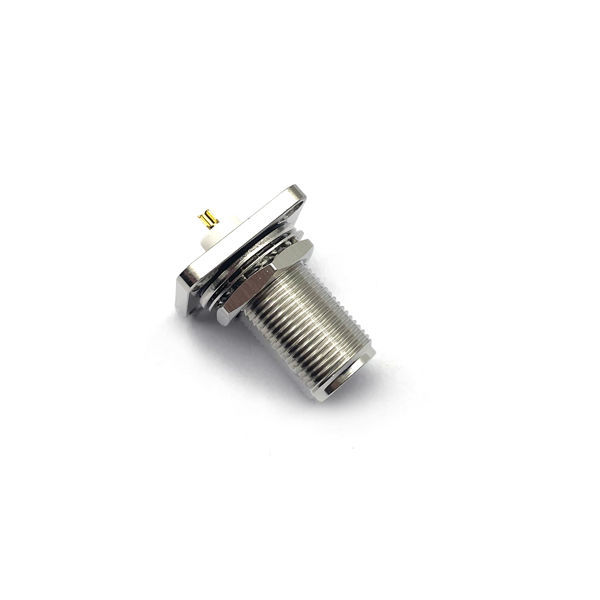

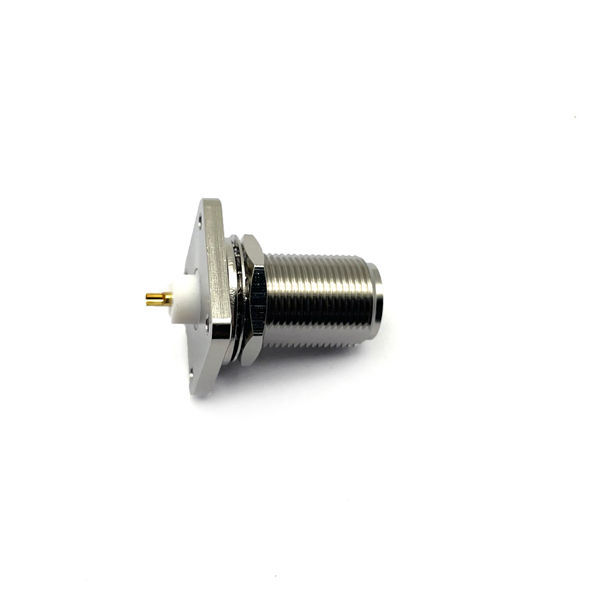

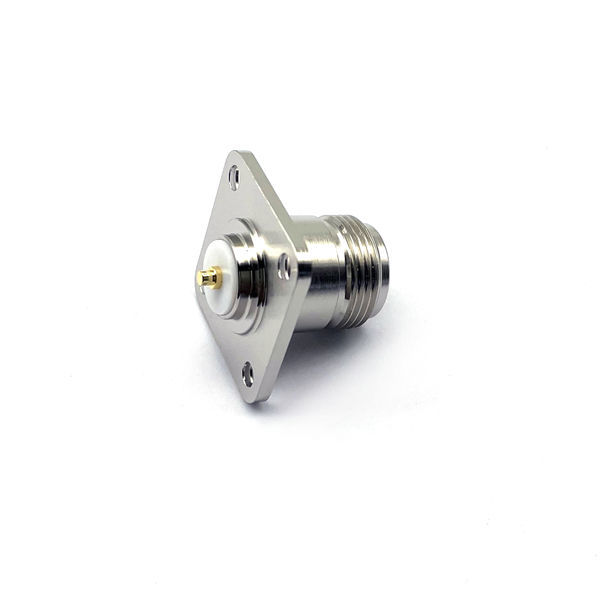

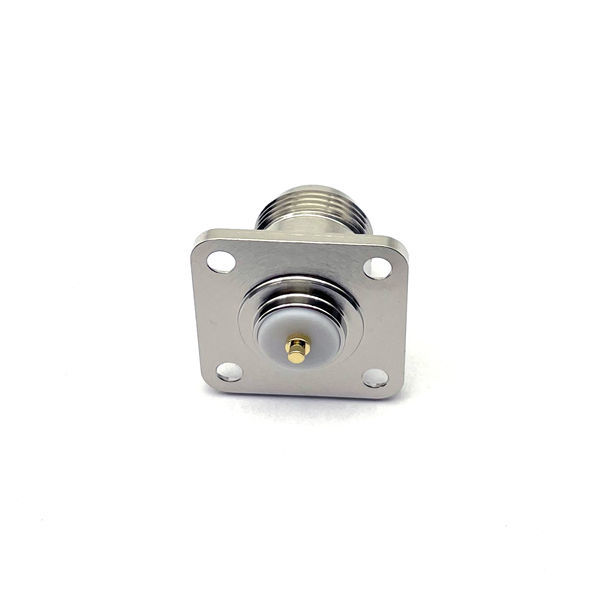

N Type Female Flange 4 Holes N Jack Screw Socket M3 Pins RF Coaxial Connector Converter
High-performance N series screw-coupling coaxial connectors designed for reliable RF applications with excellent vibration resistance and environmental protection.
Product Specifications
Application RF Type N
Rated Current 0 Rated Voltage 500V
IP Level IP65 Contact Material Phosphor Bronze
Housing Material Brass Gender Female
Shape Rectangle Model Number N-KFD-191
Type N Connector Frequency 0~3GHz
VSWR 1.15 Material Brass
Plating CuSnZn
Packaging Information
Selling Units Single item
Package Size 7 × 2.5 × 2.5 cm
Gross Weight 0.200 kg
Product Highlights

N series are very popular screw-coupling middle-or-low power coaxial connectors with impedances of 50 ohms and 75 ohms. They are widely used for electrical instruments or applications where vibration resistance and environmental protection is required, including communication equipment, coaxial components, duplexers, couplers, microwave testing system and microwave network or connecting RF cables.

Connected with high accuracy semi-flexible or semi-rigid cables, N connectors can work up to 11GHz resulting in low VSWR.

Applications
  • 5G Telecommunication
  • Antennas
  • Wireless Infrastructure
  • Aerospace
  • Medical Equipment
  • GPS/Navigation
  • IoT Devices
  • Broadcast
  • Base Station
Product Images
N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency N Type Female Flange RF Coaxial Connector with IP65 Rating Phosphor Bronze Contact for 0~3GHz Frequency
Environmental Conditions
Temperature Range -55°C ~ +155°C (PE Cable -40°C ~ +85°C)
Frequency Range DC - 11GHz
Impedance 50Ω
Working Voltage 1000V r.m.s, at sea level
Vibration 100m/s² (10-500Hz), 10g
Salt Spray Test 5% NaCl solution; test time ≥ 48h
Waterproof Sealing IP67
Technical Characteristics
Withstanding Voltage 2500V r.m.s, at sea level
Contact Resistance - Center ≤ 1mΩ
Contact Resistance - Outer ≤ 1mΩ
Insulation Resistance ≥ 5000MΩ
Center Contact Retention Force ≥ 0.56N
Coupling Nut Retention Force ≤ 450N
Insertion Loss 0.24dB / 6GHz
VSWR - Straight ≤ 1.15 / 6GHz
VSWR - Right Angle ≤ 1.25 / 6GHz
RF Leakage Measured ≥ 90dB / 3GHz
Average Power ≤ 0.60KW / 3GHz
Durability (Matings) ≥ 500 cycles
