The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These high-performance connectors feature:

• Compact size with wide frequency band capability
• Superior mechanical and electrical performance
• High reliability in demanding applications

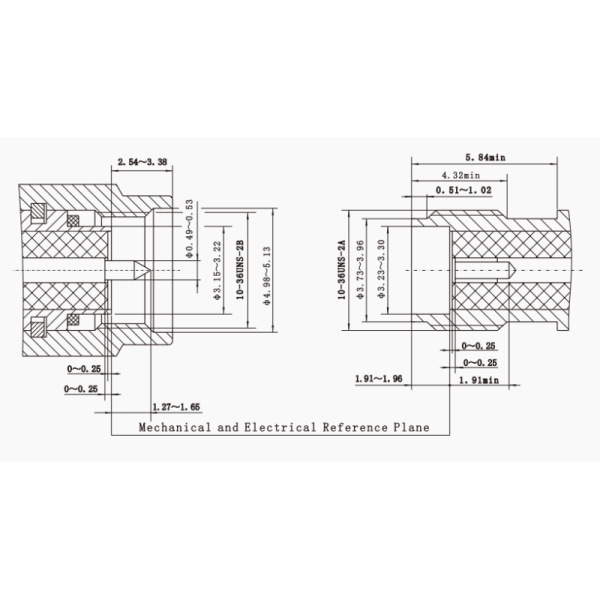

• Threaded connection (10-36UNF-2)
• Characteristic impedance of 50Ω
• Frequency operation up to 30GHz

Ideal for high-precision microwave signal transmission, SSMA connectors are extensively used in microwave communication, measurement equipment, aerospace, radar, and electronics fields.

We have the structures such as crimp cable connectors, solder cable connectors, clamp cable connectors, 2 hole flange mount connectors, 4 hole flange mount connectors, 4 leg through hole PCB solder connectors, bulkhead connectors, in series SSMA adapers, between series SSMA adapers.

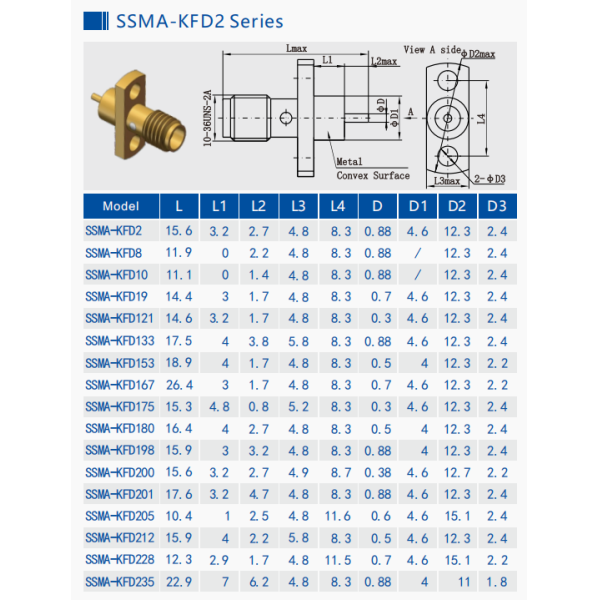

2 Hole Flange Mount Dimensions: SSMA-KFD2

Outline dimension of 2 Hole Flange Mount Copper Alloy SSMA Female RF Coaxial Microstrip Connectors (Unit: mm)

We offer similar models with:

• Copper alloy or stainless steel housing
• Different overall lengths
• Various insulation/metal convex surface lengths
• Different pin lengths and diameters (0.88mm, 0.6mm, 0.5mm, 0.3mm, etc.)

Xi'an Elite Electronic is a leading manufacturer of systematic interconnection solutions serving:

• Aerospace and aviation systems
• Navigation and radar equipment
• Communication systems
• Measurement instruments
• Electronics applications

Our high-quality products use the finest materials and strict processes to ensure durability and reliability in harsh environments.

Packaging: Each Flange Mount SSMA RF Coaxial Connector is carefully packaged in protective cartons to ensure safe transit.

Shipping: We use reliable courier services with tracking numbers provided for all shipments to ensure prompt and secure delivery.
