J30J Series Connector Rectangular 37contacts Female Socket with Wire Length 300mm for Radar System
J30J Series Connector Rectangular 37contacts Female Socket with Wire Length 300mm for Radar System
Specifications
Brand Name :
ELT
Model Number :
J30J-31TJL-1000
Certification :
ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
Carton
Product Name :
J30J Series Connectors
Other Name :
Micro D Connectors
Center Conductor :
Copper Alloy, Gold Plating
Outer Conductor :
Aluminum Alloy, Nickle Plating
DWV :
800V
Contact Termination :
Crimp
Insulation Resistance :
≥5000MΩ
Contact/Pin :
37contacts
Insulation Dielectric :
PBT
Operating Temp :
-55℃~+125℃
Storage Temp. :
-55℃~+125℃
Mating Cable :
AFR-250, White Wire 0.10mm2 ~0.15mm2
Wire Length :
1000mm，500mm, 300mm, 200mm,
Customization :
Different Wire Length
Description

Product Description:

The J30J series micro‑rectangular connectors are designed for applications demanding ultra‑compact size, lightweight structure, and high reliability. As a high‑density miniature connector built to withstand harsh environments, the J30J series serves as a critical component in the miniaturization and weight optimization of modern electronic systems.

Contact System
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are constructed from gold‑plated copper alloy to deliver low contact resistance and excellent corrosion resistance.
Housing & Shielding
Housed in rugged aluminum alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Termination Options
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.


Contact Arrangements:

J30J Series Connector Rectangular 37contacts Female Socket with Wire Length 300mm for Radar System

Technical Data:

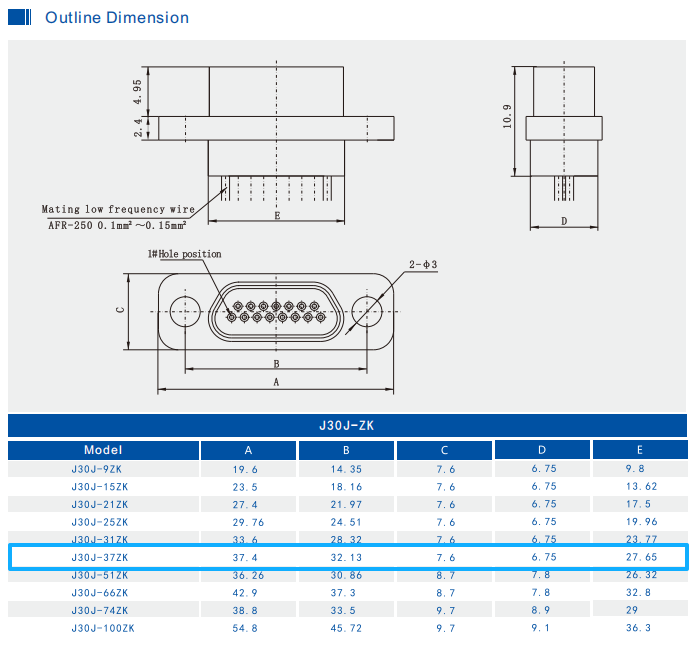

Outline Dimension of J30J Series Connector 37 contacts Female Socket:


Product Model

J30J-37ZKP-200 (37pins, female socket, wire length 200mm)
Technical Materials & Finish
Impedance / Center Conductor Copper Alloy, Gold Plating
DWV 800V Outer Conductor Aluminum Alloy, Nickle Plating
Insulation Resistance >5000MΩ Insulation Dielectric PBT
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃


J30J Series Connector Rectangular 37contacts Female Socket with Wire Length 300mm for Radar System

Applications:

Aerospace: Radar system, satcom, and telemetry & control systems

Electronics: Communication electronics, vehicle-mounted equipment and systems

High-end Industry: Medical equipment, testing instruments, downhole detection equipment

Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection


Customization:

Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:

We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.

Packing and Shipping:


  • Packaging:


The J30J Series Connectors is securely packed in a durable cardboard box to prevent damage during shipping.

  • Shipping:


We use fedex, DHL or air shipment to ensure safe and timely delivery of your J30J Series Connectors.
