J30J Series Connector 21pins Female Socket Center Contact Gold Plating with White Wire 500mm for Satcom, Sensors
J30J Series Connector 21pins Female Socket Center Contact Gold Plating with White Wire 500mm for Satcom, Sensors
J30J Series Connector 21pins Female Socket Center Contact Gold Plating with White Wire 500mm for Satcom, Sensors
J30J Series Connector 21pins Female Socket Center Contact Gold Plating with White Wire 500mm for Satcom, Sensors
Specifications
Brand Name :
ELT
Model Number :
J30J-21TJL-500
Certification :
ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
Carton
Contact Termination :
Crimp
Center Conductor :
Copper Alloy, Gold Plating
Outer Conductor :
Aluminum Alloy, Nickle Plating
DWV :
800V
Insulation Resistance :
≥5000MΩ
Contact/Pin :
21 pins
Mating Cable :
AFR-250, White Wire 0.10mm2
Wire Length :
200mm, 300mm, 500mm, 1000mm
Operating Temp :
-55℃~+125℃
Storage Temp. :
-55℃~+125℃
Product Name :
J30J Series Connectors
Insulation Dielectric :
PBT
Other Name :
Micro D Connectors
Application :
Satcom, Sensors
Description

Product Description:

J30J Series Connectors ( also called Micro-D connectors ) represent a miniaturized evolution of standard D-subminiature connectors. Their core advantages lie in an extremely compact footprint (with a pin pitch of only 1.27mm) and a lightweight design, all while maintaining superior electrical performance and mechanical robustness. This ensures stable connections even under extreme conditions involving vibration, shock, and temperature fluctuations.

Features:
  • High Density Design:
  • Integrates more signal contacts within limited space, supporting various pin configurations including 9, 15, 21, 31, and 51 positions.
  • Ultimate Reliability:
  • Features gold-plated contacts and an aluminum alloy shell, providing excellent Electromagnetic Interference (EMI) resistance & corrosion resistance.
  • Application:
  • Perfectly suited for satellite communications, radar systems, telemetry & control systems, and high-end industrial instrumentation.

Technical Data:

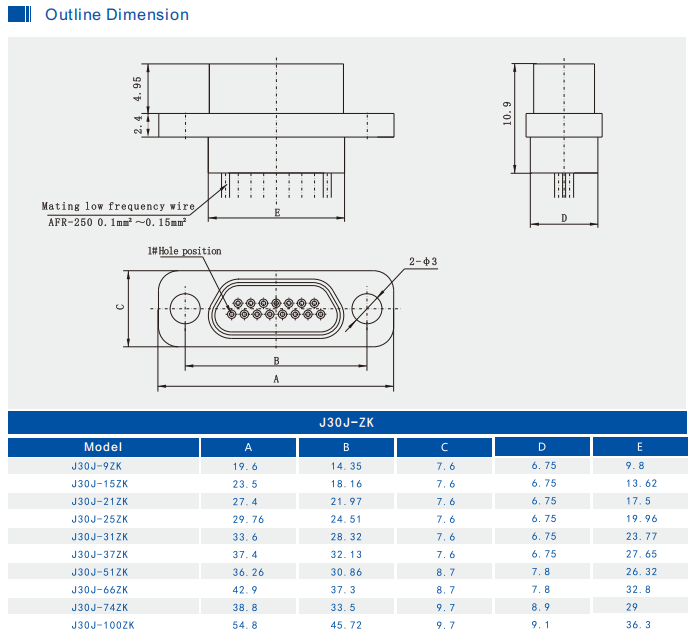

Outline Dimension of J30J Series Connector 21 pins female socket:


Product Model J30J-21ZKP-500 (21pins, female socket, wire length 500mm)
Technical Materials & Finish
Impedance / Center Conductor Copper Alloy, Gold Plating
DWV 800V Outer Conductor Aluminum Alloy, Nickle Plating
Insulation Resistance >5000MΩ Insulation Dielectric PBT
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Mating Plug J30J-21TJL-500


J30J Series Connector 21pins Female Socket Center Contact Gold Plating with White Wire 500mm for Satcom, Sensors


Applications:

The J30J Series connector is suitable for use in harsh environmental conditions.

  • Aerospace & Defense
Satellites, Telemetry & Control Systems, Radar Arrays, Avionics.
  • Advanced Manufacturing & Automation
Industrial Robots, Automated Test Equipment (ATE), Precision Instruments.
  • Communications & Electronics
High-end Telecom Base Stations, Electronic Systems, Navigation Equipment.


Customization:

Customize your J30J Series Connector with Elite Electronic 's Product Customization Services:


We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.

Packing and Shipping:


  • Packaging:


The J30J Series Connector is securely packed in a durable cardboard box to prevent damage during shipping. Using anti-static, moisture-resistant sealing and anti shock package for global transit safety. We ship globally via top-tier carriers with 24/7 real-time tracking, handling orders as fragile electronics to guarantee on-time, damage-free delivery.

  • Shipping:


We use fedex, DHL or air shipment to ensure safe and timely delivery of your J30J Series Connector.
