J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device
J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device
Specifications
Brand Name :
ELT
Model Number :
J30J-25TJL-200
Certification :
ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
Carton
Product Name :
J30J Series Connectors
Other Name :
Micro D Connectors
Center Conductor :
Copper Alloy, Gold Plating
Outer Conductor :
Aluminum Alloy, Nickle Plating
DWV :
800V
Contact Termination :
Crimp
Insulation Resistance :
≥5000MΩ
Contact/Pin :
25contacts
Insulation Dielectric :
PBT
Operating Temp :
-55℃~+125℃
Storage Temp. :
-55℃~+125℃
Mating Cable :
AFR-250, White Wire 0.10mm2 ~0.15mm2
Wire Length :
200mm, 300mm, 500mm, 1000mm...
Customization :
Different Wire Length
Description

Product Description:

The J30J series of micro-rectangular connectors is widely used in fields with stringent requirements for size, weight, and reliability. Renowned for its high density, high reliability, and strong Electromagnetic Interference (EMI) resistance, this series is a key component in the miniaturization and weight reduction of modern electronic equipment.

Features:
  • High-Density Design: Featuring a 1.27mm grid pitch, it enables multi-pin connections within an extremely small footprint, saving valuable PCB space.
  • Superior Contact Performance: The design ensures low contact resistance, smooth mating and unmating, and excellent contact alignment, significantly enhancing connection stability and service life.
  • Robust Shielding & Durability: The shell, typically made of aluminum alloy or stainless steel, provides excellent 360° electromagnetic shielding to effectively prevent signal interference. The contacts are usually gold-plated, offering corrosion and oxidation resistance to ensure stable signal transmission even in harsh environments (such as extreme temperatures and vibration).


Contact Arrangements:

J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device

Technical Data:

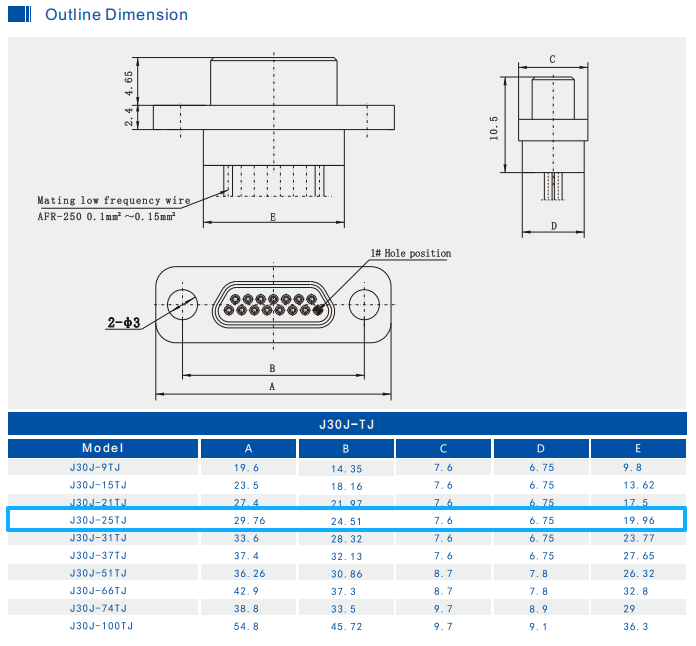

Outline Dimension of J30J Series Connector 25 contacts Male Plug:


Product Model J30J-25TJL-200 (25pins, male plug, wire length 200mm)
Technical Materials & Finish
Impedance / Center Conductor Copper Alloy, Gold Plating
DWV 800V Outer Conductor Aluminum Alloy, Nickle Plating
Insulation Resistance >5000MΩ Insulation Dielectric PBT
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃


J30J Series Connector 25contacts Male Plug with Different Wire Length for Communication Device


Applications:

Aerospace & Aviation: Used in radar systems, control systems, and onboard equipment.
Industrial Automation: Applied in high-precision industrial control boards and robot controllers.
Telecommunications: Suitable for base station backplane connections or core switching modules.
Medical Electronics: Designed for portable devices or high-precision medical imaging equipment.


Customization:

Customize your J30J Series Connector with Elite Electronic 's Product Customization Services:


We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.

Packing and Shipping:


  • Packaging:


The J30J Series Connector is securely packed in a durable cardboard box to prevent damage during shipping.

  • Shipping:


We use fedex, DHL or air shipment to ensure safe and timely delivery of your J30J Series Connector.
