J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component
J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component
J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component
J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component
Specifications
Brand Name :
ELT
Model Number :
J30J-51TJL-500
Certification :
ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
Carton
Product Name :
J30J Series Connectors
Other Name :
Micro D Connectors
Center Conductor :
Copper Alloy, Gold Plating
Outer Conductor :
Aluminum Alloy, Nickle Plating
Contacts :
Male Plug
DWV :
800V
Contact Termination :
Crimp
Insulation Resistance :
≥5000MΩ
Contact/Pin :
51contacts
Insulation Dielectric :
PBT
Operating Temp :
-55℃~+125℃
Storage Temp. :
-55℃~+125℃
Mating Cable :
AFR-250, White Wire 0.10mm2 ~0.15mm2
Wire Length :
1500mm, 1000mm，500mm, 300mm, 200mm
Customization :
Different Wire Length
Description

Product Description:

The J30J series micro‑rectangular connectors are optimized for aerospace and portable equipment, the J30J series micro-rectangular connectors combine ultra-compact size, lightweight construction, and high reliability. Featuring robust aluminum alloy shielding and vibration-resistant threaded coupling, these connectors ensure stable signal transmission in harsh environments, facilitating the miniaturization and weight reduction of modern electronic systems.

Contact System
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are gold‑plated copper alloy to supply low contact resistance and excellent corrosion resistance.
Housing & Shielding
Housed in rugged AL alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Termination Options
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.


Contact Arrangements:

J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component

Technical Data:

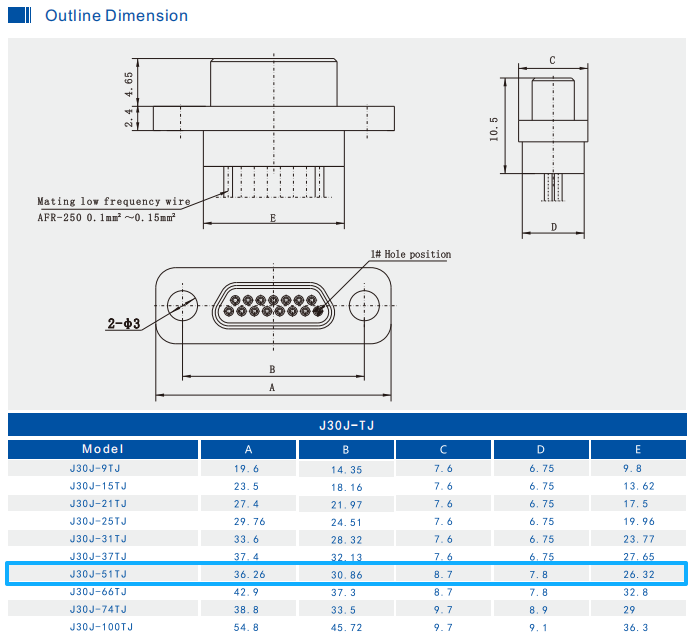

Outline Dimension of J30J Series Connector 51 contacts male Plug:


Product Model

J30J-51TJL-500 (51pins, male plug, wire length 500mm)
Technical Materials & Finish
Impedance / Center Conductor Copper Alloy, Gold Plating
DWV 800V Outer Conductor Aluminum Alloy, Nickle Plating
Insulation Resistance >5000MΩ Insulation Dielectric PBT
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃


J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component

Applications:

Aerospace: Radar system, satcom, and telemetry & control systems

Electronics: Communication electronics, vehicle-mounted equipment and systems

High-end Industry: Medical equipment, testing instruments, downhole detection equipment

Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection


Customization:

Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:

We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.

Packing and Shipping:


  • Packaging:

The J30J Series Connectors is securely packed in a durable cardboard box withiner protected foam to prevent damage during shipping.

  • Shipping:


We use reliable courier services for safe and prompt delivery. All shipments include tracking numbers & are packed securely to prevent mishandling during transportation.
