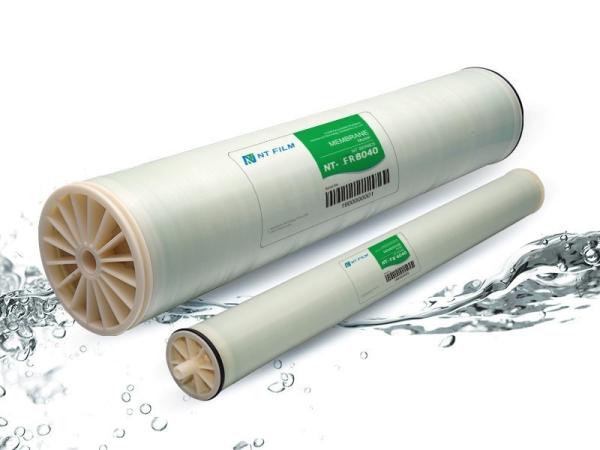

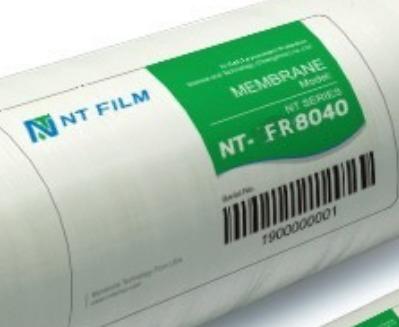

Anti Pollution Reverse Osmosis FR Series Membrane Elements
Anti Pollution Reverse Osmosis FR Series Membrane Elements
Anti Pollution Reverse Osmosis FR Series Membrane Elements
Anti Pollution Reverse Osmosis FR Series Membrane Elements
Specifications
Brand Name :
China brand
Model Number :
Anti-pollution reverse osmosis FR series
Certification :
CE
Place of Origin :
China
MOQ :
1 pc（This product can be produced with your brand on bulk order）
Price :
Negotiable
Payment Terms :
,T/T
Supply Ability :
60000 Units per Month
Delivery Time :
5- 8 work days
Packaging Details :
standard export packing
The type of membrane :
Anti-pollution
The series of this product :
FR series
Brand :
China brand
model :
FR-8040/FR-4040
Standard water production GPD (m3/d) :
10500 (39.8)/2400(9.0)
Stable desalination rate (%) :
99.5
Minimum desalination rate (%) :
99.3
Description

Anti-pollution reverse osmosis FR series membrane elements

Product Details

(1) Product positioning

FR series membrane elements are suitable for desalination of water with medium salinity (TDS < 10000 mg/L) and can be widely used in various scales of water reuse, especially for the treatment of industrial wastewater containing a small amount of organic pollutants and slightly polluted water sources.

(2) Product features

A special membrane-making process is used to improve the hydrophilicity, charge and roughness of the membrane surface, thereby reducing the growth and adsorption of pollutants and microorganisms on the membrane surface; at the same time, the low-pressure difference 34mil wide water inlet flow channel design can effectively reduce the accumulation of pollutants on the grid, further enhancing the anti-pollution and cleanability of the membrane element.

(3) Product performance

model Average water production
GPD (m3/d)

Stable desalination rate

(%)

Minimum desalination rate

(%)

Effective membrane area ft2

(m2)

Inlet grid thickness

(mil)
FR-8040 10500 (39.8) 99.5 99.3 400 (37.2) 34
FR-4040 2400 (9.0) 99.5 99.3 85 (7.9) 34

(a) Standard test conditions: 2000 ppm NaCl, 225 psi (1.55 MPa), 25°C, pH = 7-8, recovery rate 15%.

(b) The water production of a single membrane element may vary within the range of ±15%.

(c) Handling and cleaning limits

Maximum operating pressure 600 psi (4.14MPa) Allowable free chlorine concentration ˂ 0.1 ppm
Maximum water inlet temperature 45℃ Inlet water pH range during continuous operation 3~10
Maximum water flow 17.0m3/h (8040), 3.6m3/h (4040) pH range of influent water during chemical cleaning 1~12
Maximum water inlet SDI15 5 Maximum allowable pressure drop of a single membrane element 15 psi (0.1 MPa)
