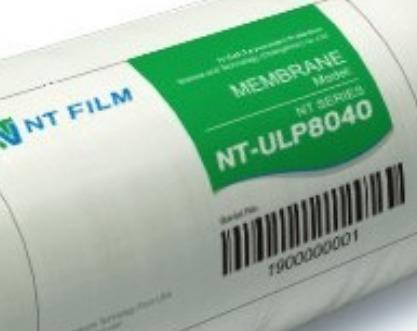

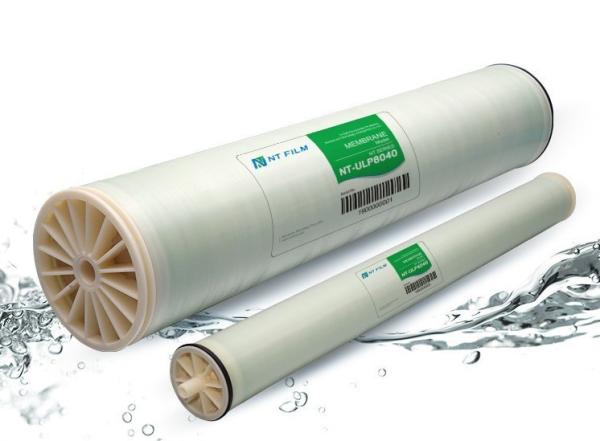

Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Specifications
Brand Name :
China brand
Model Number :
Ultra low pressure ULP series
Certification :
CE
Place of Origin :
China
MOQ :
1 pc（This product can be produced with your brand on bulk order）
Price :
Negotiable
Payment Terms :
,T/T
Supply Ability :
60000 Units per Month
Delivery Time :
5- 8 work days
Packaging Details :
standard export packing
The type of membrane :
Ultra low pressure reverse osmosis membrane elements
Product model :
ULP series
The Brand :
China brand
Average water production GPD (m3/d) :
10500(39.8)
Stable desalination rate% :
99.0,99.3
Minimum desalination rate (%) :
98.5,99.0
Product features :
It can obtain higher water flux under extremely low operating pressure conditions while maintaining a higher desalination rate
Description

Ultra low pressure reverse osmosis ULP series membrane elements

Product Details

(1) Product positioning

ULP series membrane elements are suitable for desalination treatment with municipal tap water and groundwater as water sources at low salinity (TDS <1000 mg/L). They are mainly used in many fields such as large-scale residential water supply, pure water preparation, and industrial pure water preparation for food, beverages, etc.

(2) Product features

It can obtain higher water flux under extremely low operating pressure conditions while maintaining a higher desalination rate. Its operating pressure is about 30-50% lower than that of conventional brackish water membranes, and its operating energy consumption is reduced by more than 20%.

(3) Product performance

model Average water production
GPD (m3/d)		 Stable desalination rate% Minimum desalination rate (%) Effective membrane area ft2 (m2) Water inlet grid thickness (mil)
LP-8040-HF 13000(49.3) 99.0 98.5 400 (37.2) 31
ULP-8040-HR 10500(39.8) 99.3 99.0 400 (37.2) 31
ULP-4040 2800(10.6) 99.0 98.5 78 (7.2) 31

(a) Standard test conditions: 1500 ppm NaCl, 150 psi (1.03 MPa), 25°C, pH = 7-8, recovery rate 15%.

(b) The water production of a single membrane element may vary within the range of ±15%.

(c) Handling and cleaning limits

Maximum operating pressure 300psi(2.07MPa) Allowable free chlorine concentration 0.1ppm
Maximum water inlet temperature 45℃ Water inlet range during continuous operation 3~10
Maximum water flow 17.0m3/h (8040), 3.6m3/h (4040) Water inlet range during chemical cleaning 1~12
Maximum water inlet 5 Maximum allowable pressure drop of a single membrane element 15 psi (0.1 MPa)

About Us
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.

OUR CLIENTS

Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements

INDUSTRIES SERVED

Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements

PRODUCTION SYSTEM

Our production system consist of a list of industry-specialized partnership factories accross China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings. All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stays highly reliable even under toughest conditions.

Our FACTORY

Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Ultra Low Pressure Reverse Osmosis ULP Series Membrane ElementsUltra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Ultra Low Pressure Reverse Osmosis ULP Series Membrane ElementsUltra Low Pressure Reverse Osmosis ULP Series Membrane Elements
