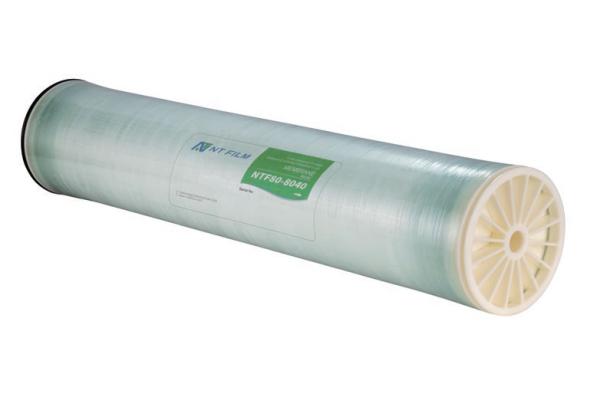

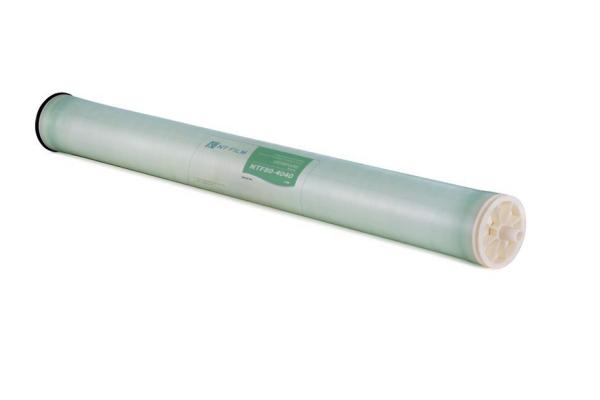

Nanofiltration Membranes Combine High Water Flux, High Desalination Rate

Utilizing advanced preparation techniques and fully automated production lines, the reliability and stability of nanofiltration product performance are ensured. The nanofiltration membrane combines high water flux, high desalination rate and high durability with low operating pressure, significantly saving system investment and operational costs. It features selective separation, capable of removing almost all bacteria, viruses, microorganisms, and organic matter from water, with high removal rates for pesticides, antibiotics, and heavy metals, while retaining beneficial minerals such as sodium, potassium, calcium, magnesium, and silicic acid. Its main applications include advanced treatment of municipal tap
water sourced from surface or groundwater, zero discharge of wastewater, decolorization of landfill leachate, lithium extraction from salt lakes, purification, separation, and concentration of high-concentration saline water, material separation, and the chlor-alkali industry.

Product			Permeate Flow Rate GPD(m3/d)		Stabilized Salt Rejection (%)	Minimum Salt Rejection (%)	Active Membrane Area ft²(m²)	Feed Spacer (mil)
Low energy²	LE 400		11000(41.6)		99.5	99.2	400(37)	28
	LE 440		12500(47.3)		99.5	99.2	440(41)	28
Anti-fouling, Low energy²	LE-FR 400-34		11000(41.6)		99.5	99.2	400(37)	34
	LE-FR 400-LD		11000(41.6)		99.5	99.2	400(37)	34-LD
eXtra low pressure³	XLP400-34		13200(50.0)		99.2	98.7	400(37)	34
	XLP400-LD		13200(50.0)		99.2	98.7	400(37)	34-LD
	XLP440		14500(54.9)		99.2	98.5	440(41)	28
Test condition 2:2000ppm NaCl,test pressure 150psi(10.3bar),77F(25℃),pH 7,15%recovery. Test condition 3:500ppm NaCI,test pressure 100psi(6.9bar),77F(25℃),pH 7,15%recovery.
