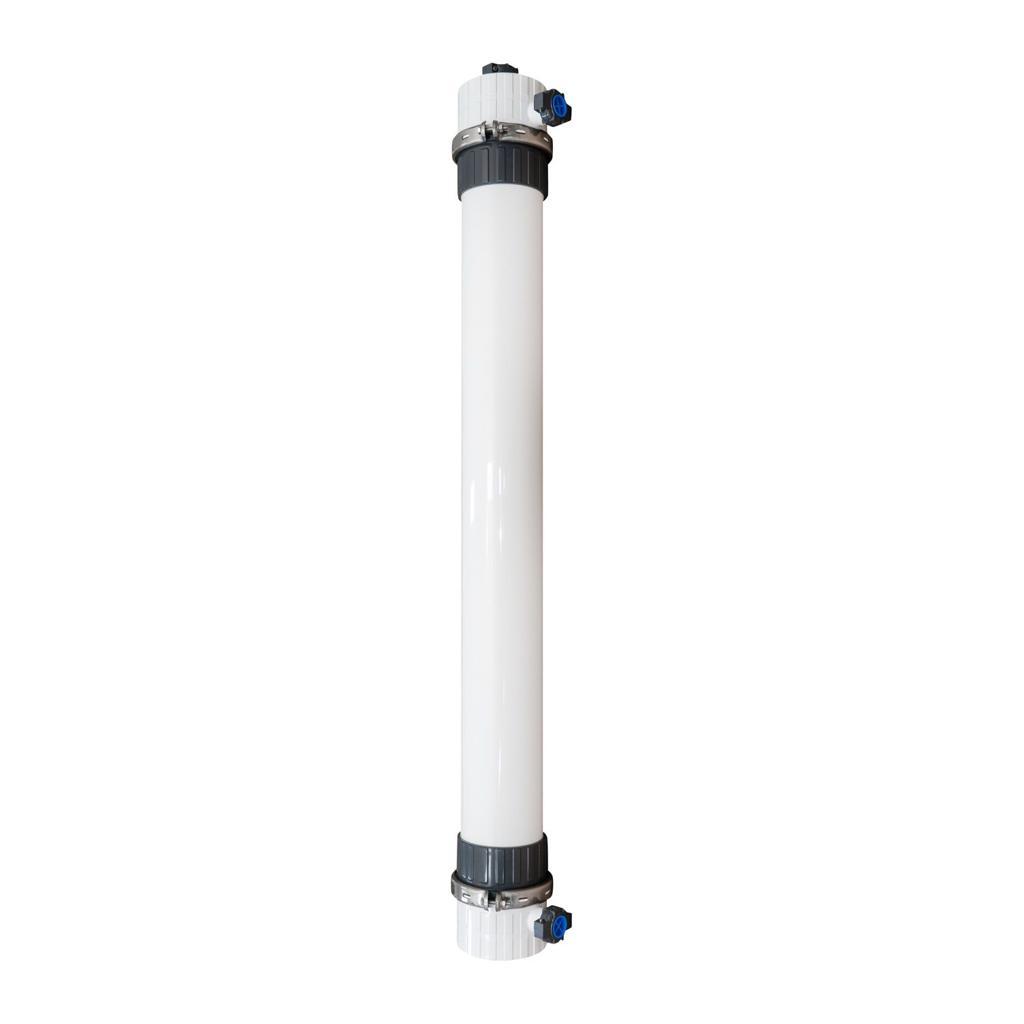

The XP 77IP IG Ultrafiltration Module is a high-performance industrial UF membrane module designed for large-scale water treatment applications and rack-mounted system integration.

Utilizing advanced hydrophilic PVDF hollow fiber membrane technology, the module provides excellent fouling resistance, high chemical tolerance, stable filtration performance, and long service life.

With a large effective membrane area of 77 m², the XP 77IP IG delivers high filtration capacity while maintaining low maintenance requirements and reliable operation. Its optimized module structure allows efficient installation, system expansion, and simplified maintenance for industrial water treatment projects.

The module provides an ideal pretreatment solution for reverse osmosis systems and is widely applied in industrial water purification, wastewater reuse, and municipal water treatment applications.

• Advanced hydrophilic PVDF membrane material
• Excellent resistance to organic fouling and oxidation
• Supports repeated cleaning cycles
• Extends membrane service life and reduces maintenance frequency

• Effectively removes:
  • Suspended solids
  • Colloids
  • Bacteria
  • Microorganisms
• Provides stable and high-quality filtrate
• Suitable for demanding industrial water applications

• Active membrane area: 77 m²
• High filtration efficiency with compact module design
• Supports large-scale water treatment capacity
• Optimized for high recovery operation

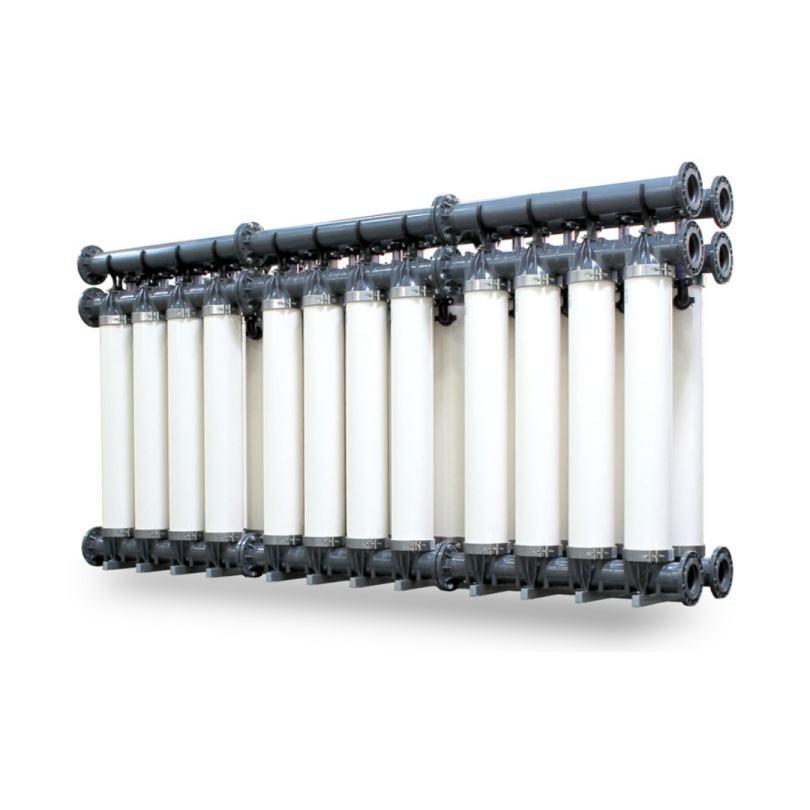

• Designed for rack-mounted UF systems
• Easy module installation and replacement
• Flexible system expansion
• Simplified operation and maintenance

• Hydrophilic membrane surface improves wetting performance
• Efficient backwash and cleaning process
• Reduces chemical usage and operating costs

The XP 77IP IG UF Module is suitable for:

• Industrial raw water purification
• Industrial wastewater reuse
• Municipal water treatment
• Reverse osmosis pretreatment
• Process water production
• Large-scale filtration systems requiring high reliability

• Avoid sudden pressure changes during start-up, operation, and shutdown.
• Maintain stable operating conditions to protect membrane integrity.

• Follow recommended cleaning procedures to control fouling.
• Optimize cleaning frequency to reduce chemical consumption and extend membrane lifetime.

• For long-term shutdown periods, apply proper preservation procedures to prevent biological growth.

• Follow professional installation procedures to ensure correct module assembly and reliable operation.

The XP 77IP IG Ultrafiltration Module provides a reliable, efficient, and scalable filtration solution for industrial water purification, wastewater reuse, and advanced water treatment systems requiring high performance and long-term stability.
