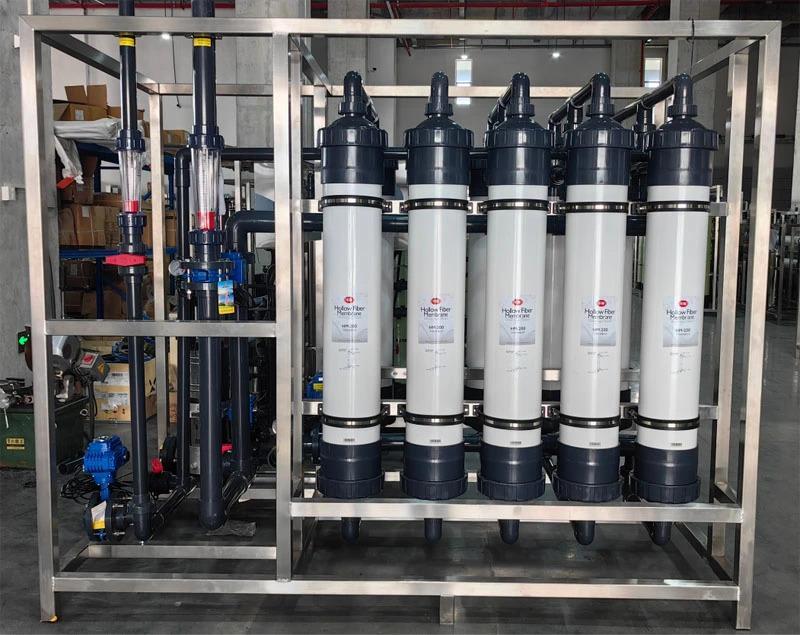

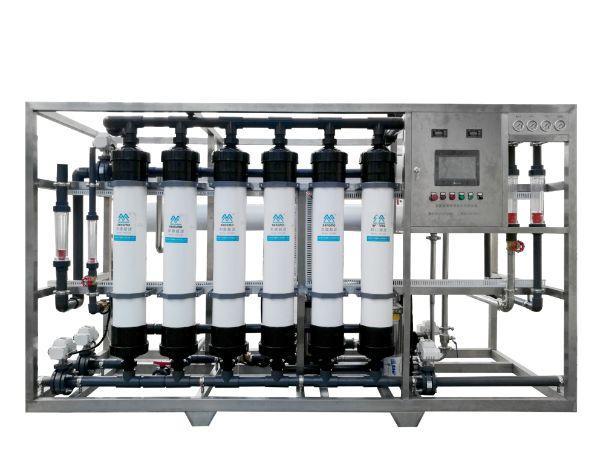

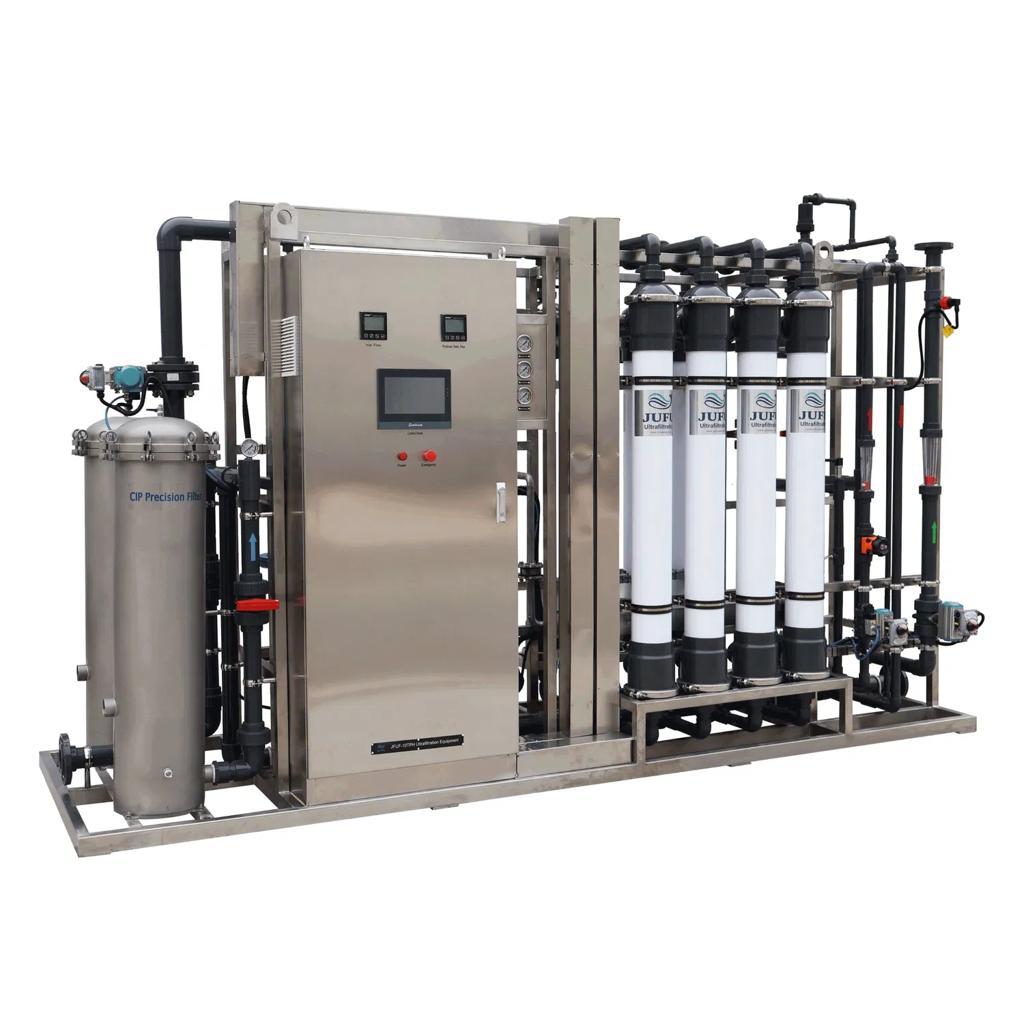

FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
Specifications
MOQ :
1 Set
Delivery Time :
30-40 work days
Operating Pressure :
0.1 - 0.3 MPa (1 - 3 Bar)
Certification :
ISO 14001， CE ，ISO 9001
Membrane Type :
PVDF Hollow Fiber,Outside-In Configuration
Model Number :
FG-UF-20
System Nominal Capacity :
20 TPH (5,280 GPD)
Price :
Negotiable
Operating Temperature :
5 - 45°C (Customizable To 65°C)
Supply Ability :
20 Units per Month
Brand Name :
FGWATER
Model :
FG-UF-20
Payment Terms :
T/T,Western Union,Paypal etc.
SDI Output :
≤3 (Typically 2.0-2.5)
Place of Origin :
China
Nominal Pore Size :
0.02 μm
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film
Description
FG-UF-20 Compact Industrial Ultrafiltration System – 20 TPH PVDF Membrane Water Treatment Unit
Product Overview

The FG-UF-20 Compact Ultrafiltration System is a high-efficiency membrane filtration solution designed for medium-scale industrial water treatment applications where reliable performance, compact installation, and easy operation are required.

With a rated capacity of 20 TPH (5,280 GPD), this skid-mounted UF system integrates advanced PVDF hollow fiber membrane technology, automatic control functions, and a complete cleaning system into a compact treatment platform.

The system effectively removes suspended solids, colloidal particles, bacteria, and microorganisms while producing stable-quality filtrate for industrial processes, water reuse applications, and downstream reverse osmosis treatment.

Its compact footprint and integrated design make the FG-UF-20 suitable for facilities with limited installation space, including food processing plants, commercial facilities, industrial parks, and decentralized water treatment stations.

Key Advantages
High-Efficiency Ultrafiltration Performance
  • Uses PVDF hollow fiber ultrafiltration membranes
  • Nominal membrane pore size: 0.02 μm
  • Effectively removes: suspended solids, colloids, bacteria, microorganisms
  • Provides high-quality filtration for downstream processes
Compact Skid-Mounted Design
  • Factory-assembled integrated structure
  • Reduced installation requirements
  • Small footprint: approximately 2.4 m²
  • Suitable for projects with limited space availability
Automated Operation
  • PLC control system with HMI touchscreen
  • Automatic backwash function
  • Chemical enhanced backwash (CEB)
  • Integrated CIP cleaning system
  • Remote monitoring and SCADA integration capability
Stable Industrial Operation
  • Designed for continuous-duty applications
  • High recovery efficiency: 92-95%
  • Low energy consumption
  • Reliable performance under variable feed water conditions
Technical Specifications
Parameter Specification
System Model FG-UF-20
Rated Capacity 20 TPH (5,280 GPD)
Membrane Technology PVDF Hollow Fiber UF
Membrane Configuration Outside-In Flow
Total Membrane Area 280 m²
Nominal Pore Size 0.02 μm
Operating Pressure 0.1-0.3 MPa (1-3 bar)
Operating Temperature 5-40°C
Extended Temperature Option Up to 45°C
System Recovery Rate 92-95%
SDI Output ≤3
Turbidity Removal >99.5%
Bacteria Removal >6 LRV
Control System PLC + 7-inch HMI Touch Screen
Power Supply 380V / 3Phase / 50Hz
Power Consumption 3.5-4.5 kW
Dimensions (L*W*H) 2000 * 1200 * 1800 mm
Footprint Area Approx. 2.4 m²
Skid Material 304 Stainless Steel
Optional Material 316L Stainless Steel
Dry Weight Approx. 850 kg
Standard Features
  • Complete skid-mounted UF treatment unit
  • Factory assembled and tested before delivery
  • Automatic backwashing system
  • Air scour cleaning option
  • Chemical enhanced backwash capability
  • Integrated CIP cleaning circuit
  • Pressure and flow monitoring instruments
  • Automatic low-pressure protection
  • Remote/local operation modes
  • Data recording function
  • SCADA communication support
Typical Applications
Food & Beverage Industry

The FG-UF-20 provides high-quality process water by removing microorganisms and suspended contaminants that may affect product quality.

Typical applications:
  • Bottled water production
  • Beverage manufacturing
  • Dairy processing
  • Food ingredient production
  • Brewery and winery water treatment
Regional Water Treatment

The compact design makes the system suitable for decentralized water purification projects.

Typical applications:
  • Small community water supply
  • Industrial park water treatment
  • Temporary water treatment facilities
  • Remote area water supply systems
Hospitality & Commercial Facilities

The system provides reliable water purification with low chemical requirements and quiet operation.

Typical applications:
  • Hotels and resorts
  • Tourist facilities
  • Spa and wellness centers
  • Golf course irrigation systems
Performance Data
Parameter Typical Performance
Feed Turbidity 5-30 NTU
Feed SDI 4-6
Product Turbidity <0.1 NTU
Product SDI <3
Bacteria Removal >99.999%
CEB Chemical Consumption NaClO 5-10 mg/L
CIP Chemical Consumption Citric Acid 0.1-0.3%
Efficient Ultrafiltration Solution for Medium-Scale Water Treatment

The FG-UF-20 combines advanced membrane filtration technology with a compact integrated design to provide a reliable and economical solution for industrial water purification, process water production, and water reuse applications.
