500 m³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
500 m³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
500 m³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
500 m³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
500 m³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
500 m³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
Specifications
MOQ :
1 Set
Delivery Time :
15~30 days
Certification :
ISO 14001， CE ，ISO 9001
Rated Recovery Rate: :
70%
Place of Origin :
China
Rated Power: 15.6kW :
15.6kW
Model Number :
BWC500
Installation Method :
Containerized / Mobile Design
Brand Name :
Fenigal/OEM
Usage :
Industrial and Commercial Water Treatment
Payment Terms :
T/T,Western Union,Paypal etc.
Price :
Negotiable
Supply Ability :
200 set per month
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film
Description
500 M³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
BWC500 - 500 m³/day High-Efficiency Containerized BWRO System

The BWC500 Containerized Brackish Water Reverse Osmosis (BWRO) System is a high-efficiency desalination solution designed for large-scale water production with minimum energy consumption.

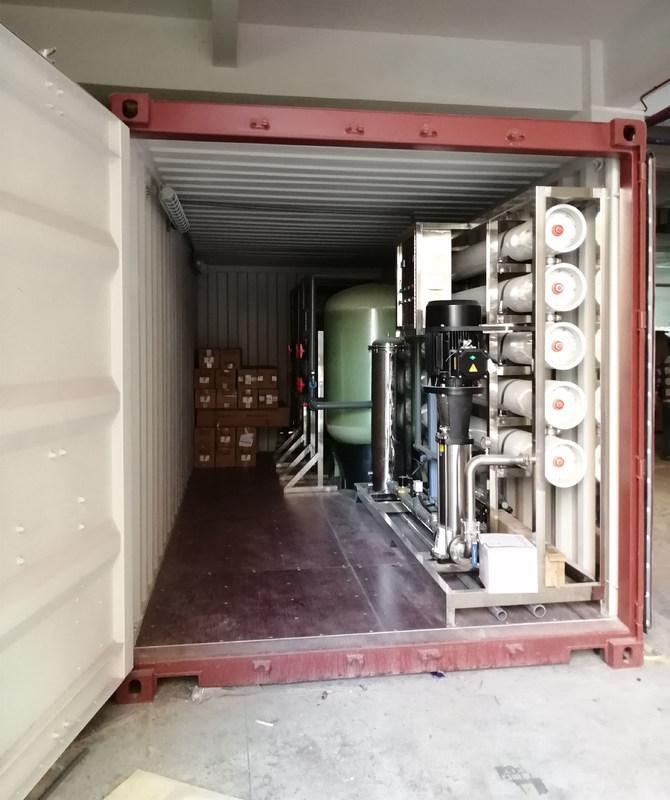

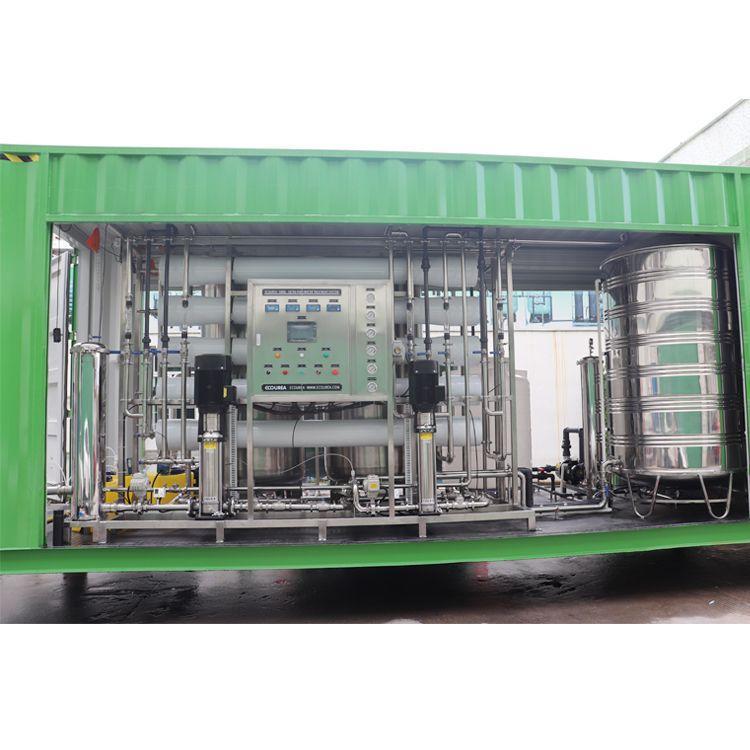

Installed in a standard 40-ft container, the BWC500 delivers a rated production capacity of 500 m³/day (22 m³/h) while achieving an industry-leading low energy consumption of only 1.04 kWh/m³.

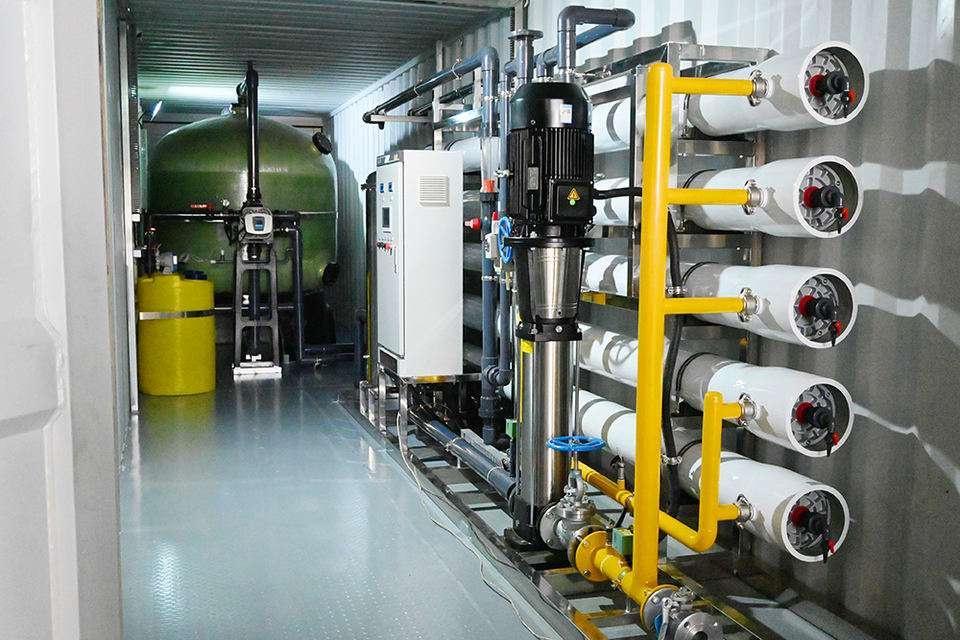

The system is equipped with 25 units of 8-inch RO membranes, a high-pressure pump designed for continuous-duty operation, and advanced corrosion-resistant materials including duplex stainless steel and UPVC. These features ensure stable performance, long service life, and reliable operation under demanding water conditions.

With a fully automated PLC control system and HMI touchscreen interface, the BWC500 enables real-time monitoring, intelligent diagnostics, and remote operation, making it an ideal solution for critical water infrastructure projects.

Key Specifications
Parameter Unit Value
Rated Product Flow m³/h 22
Daily Production Capacity m³/day 500
Rated Product Flow L/s 6.11
Rated Recovery Rate % 70
Rated Feed Flow m³/h 31.43
Maximum System Pressure barg 20
RO Membrane Specification inch 8 * 40
RO Membrane Quantity pcs 25
Container Size ft 40
Dry Weight ton 12
Rated Power kW 44.4
Installed Power kW 70.2
Energy Consumption kWh/m³ 1.04
Power Input - 3PH, 380V ±10%, 50Hz
System Features
  • Industry-Leading Energy Efficiency
    Ultra-low energy consumption of only 1.04 kWh/m³, one of the most energy-efficient BWRO systems in its capacity range, with optimized hydraulic design for reduced operating costs.
  • Heavy-Duty & Corrosion-Resistant Materials
    Constructed with high-performance materials including duplex stainless steel and UPVC piping components, providing excellent resistance against corrosion, scaling, and harsh operating environments.
  • Fully Automated Intelligent Control
    PLC-based automatic control system with HMI touchscreen interface, real-time system monitoring, and remote operation and fault diagnostics capability.
  • Modular & Expandable Design
    Standard 40-ft containerized configuration for easy transportation and rapid installation, with multiple units connectable in parallel to increase production capacity.
Applications
  • Municipal water supply
  • Power plant cooling water treatment
  • Large-scale agricultural irrigation
  • Mining operations
  • Industrial process water supply
Product Advantages
Feature Benefit
500 m³/day Capacity High-volume water production from a single container
70% Recovery Rate Improved water utilization and reduced wastewater discharge
1.04 kWh/m³ Energy Consumption Lower operating costs and improved efficiency
40-ft Container Design Compact, modular, and easy to deploy
Full Automation Reliable unattended operation and remote monitoring
Expandable Configuration Flexible capacity expansion for future demand
BWC500 - Smart, Efficient, and Reliable Desalination Solution

The BWC500 provides a compact, energy-efficient, and fully automated BWRO solution for municipalities, industries, agriculture, and infrastructure projects requiring dependable freshwater production.
