100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
Specifications
Model Number :
BWC100
Rated Product Flow :
4.17 m³/h
MOQ :
1
Max System Pressure :
20barg
Delivery Time :
30 working days
Payment Terms :
T/T
RO Membrane Spec :
8040
Packaging Details :
Standard
Certification :
CE
RO Membrane Qty :
6
Place of Origin :
China
Dry Weight :
5T
Brand Name :
FG Water Technologies
Rated Recovery Rate :
70%
Description
100 M³/day Desal BWC100 Containerized Brackish Water Reverse Osmosis System
Product Description

The Desal BWC100 from FG Water Technologies is a compact, containerized brackish water desalination system designed for small to medium water demands. All core components - including pre-filtration, reverse osmosis membranes, high-pressure pumps, and PLC controls - are pre-installed inside a single 20-foot container.

The system produces up to 100 m³ per day (approx. 4.17 m³/h) of fresh water, effectively treating feed water with TDS between 1,000 and 5,000 mg/L to meet WHO drinking water standards. Factory pre-assembly and pre-commissioning minimize on-site work, reducing civil works and installation time by up to 50% compared to traditional built-on-site plants.

100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
Key Specifications
Parameter Unit Value
Rated Product Flow m³/h 4.17
Rated Product Flow L/s 1.39
Rated Recovery Rate % 70
Rated Feed Flow m³/h 7.14
Max System Pressure barg 20
RO Membrane Spec inch 8,040
RO Membrane Qty pcs 6
Dry Weight ton 5
Container Size ft 20
Rated Power kW 7.9
Energy Consumption kWh/m³ 1.58
Installed Power kW 18.9
Power Input - 3PH, 380V ±10%, 50Hz
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
System Features

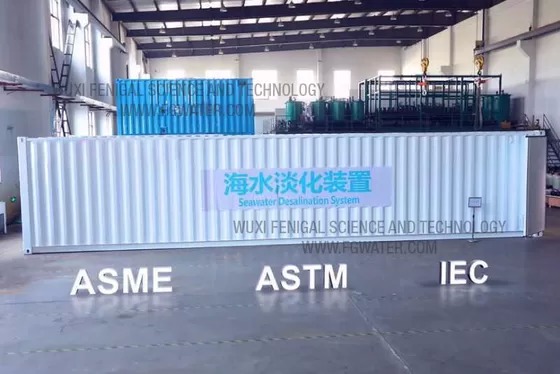

  • Fully integrated in a 20-ft container - minimal site preparation and fast start-up
  • Corrosion-resistant construction: Sch10 SS316 high-pressure piping and heavy-duty marine paint

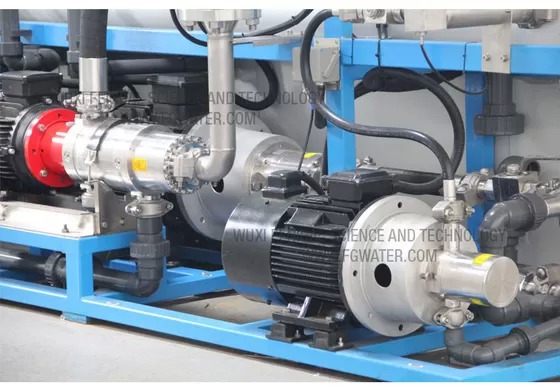

  • Energy efficient: IE3 motors and low-energy RO membranes reduce operating costs

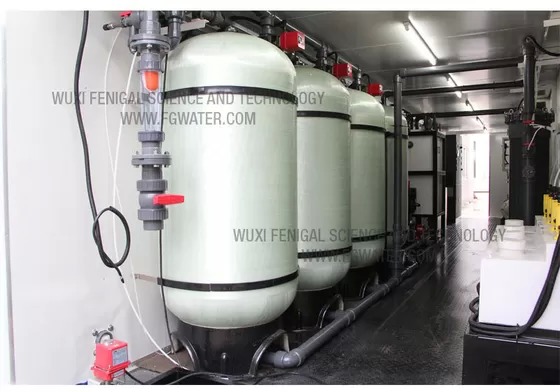

  • Triple filtration (sand filter, pre-filter, and main filter) protects the pump and membranes
  • Quick restoration with standard, off-the-shelf spare parts
  • Optional remote monitoring and operational consulting via add-on sensors
100 M³/day 70% Recovery Rate Brackish Water Reverse Osmosis System in 20ft Container
Ordering Information
  • Standard code: BWC100 (204A003)
  • Filter kit (standard): 244P003
  • Insulation kit: 254P003
  • Premium code: BWC100H (H204A103)
  • Filter kit (premium): 244P005
  • Insulation kit (premium): 254P003
Applications
Island communities, small towns, hotels & resorts, golf courses, agricultural irrigation, emergency water supply.
