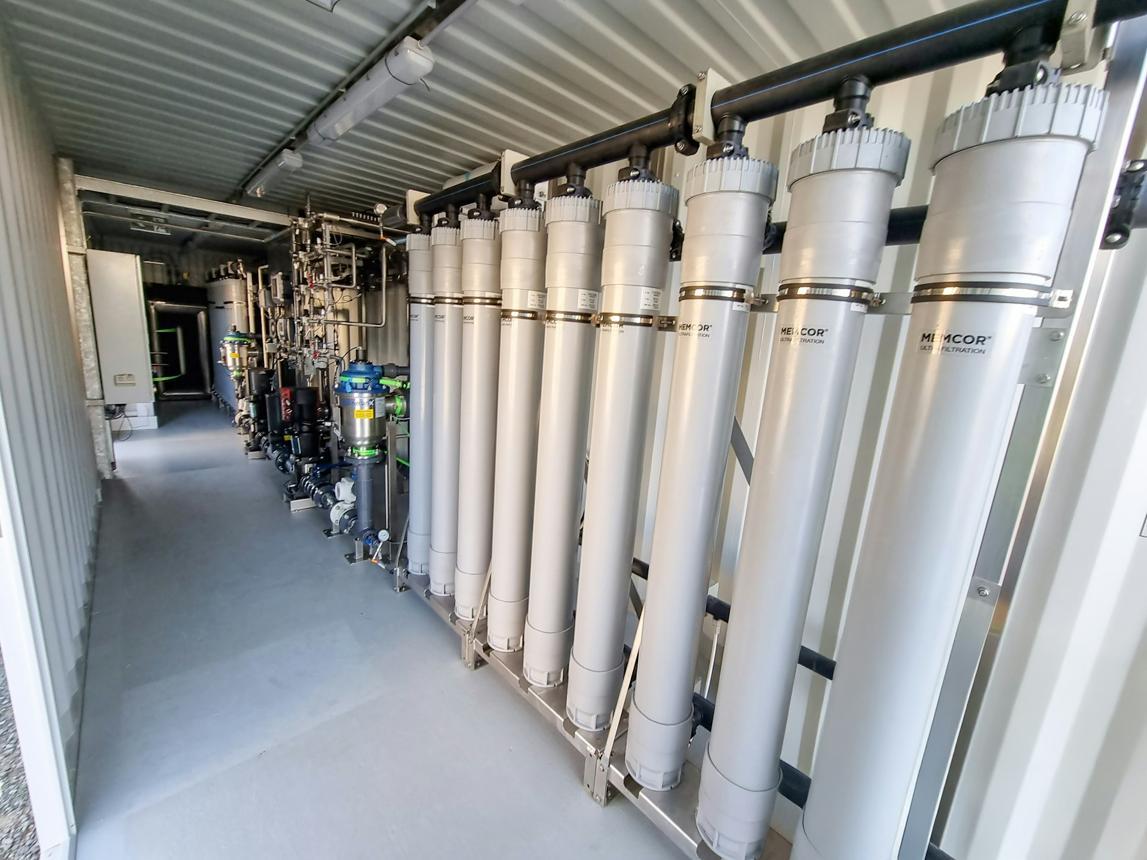

The FRO-CUFRO-200 Integrated UF + RO Containerized Water Treatment System represents an advanced single-container water treatment solution combining ultrafiltration (UF) pretreatment and reverse osmosis (RO) desalination within one standard 40-ft High Cube ISO container.

By integrating UF and RO technologies into a compact modular platform, the system provides a reliable dual-barrier treatment process for challenging raw water sources, including surface water, municipal wastewater effluent, and industrial reuse applications.

The system delivers a rated permeate production capacity of 200 m³/day (8.3 m³/h) while significantly reducing footprint, installation time, and operational complexity compared with traditional multi-stage water treatment plants.

The advanced UF pretreatment technology provides excellent removal of suspended solids, colloids, and organic contaminants, producing RO feed water with SDI ≤ 2.5 and turbidity ≤ 0.1 NTU, ensuring stable RO performance and extended membrane lifetime.

Designed with a fully automated PLC control system, 12-inch HMI touchscreen, and 4G remote monitoring capability, the FRO-CUFRO-200 provides intelligent operation, real-time diagnostics, and simplified maintenance.

• Integrated UF + RO Dual Barrier Treatment
  • Combines ultrafiltration and reverse osmosis in a single 40-ft container
  • Includes: 6 * DuPont IntegraTec XP UF modules, 20 * DOW BW30-8040 RO membrane elements
  • Provides high-quality treated water with stable operation
• Advanced UF Pretreatment Performance
  • Produces RO feed water with: SDI ≤ 2.5, Turbidity ≤ 0.1 NTU
  • Effectively removes: Suspended solids, Colloids, Organic matter, Micro-particles
• Automatic UF Cleaning System
  • Fully automatic air scour backwash
  • Filtrate backflush process
  • Periodic chemical-enhanced backwash
  • Maintains long-term UF membrane performance
• Independent UF & RO CIP Systems
  • Dual Clean-In-Place (CIP) circuits: UF CIP: NaOCl / Citric Acid cleaning, RO CIP: NaOH / Citric Acid cleaning
  • Automated valve sequencing
  • Dedicated chemical dosing pumps
• Intelligent Automation & Remote Monitoring
  • S7-1200 PLC control system
  • 12-inch HMI touchscreen interface
  • 4G remote access capability
  • Real-time monitoring and fault diagnostics
• Compact Containerized Design

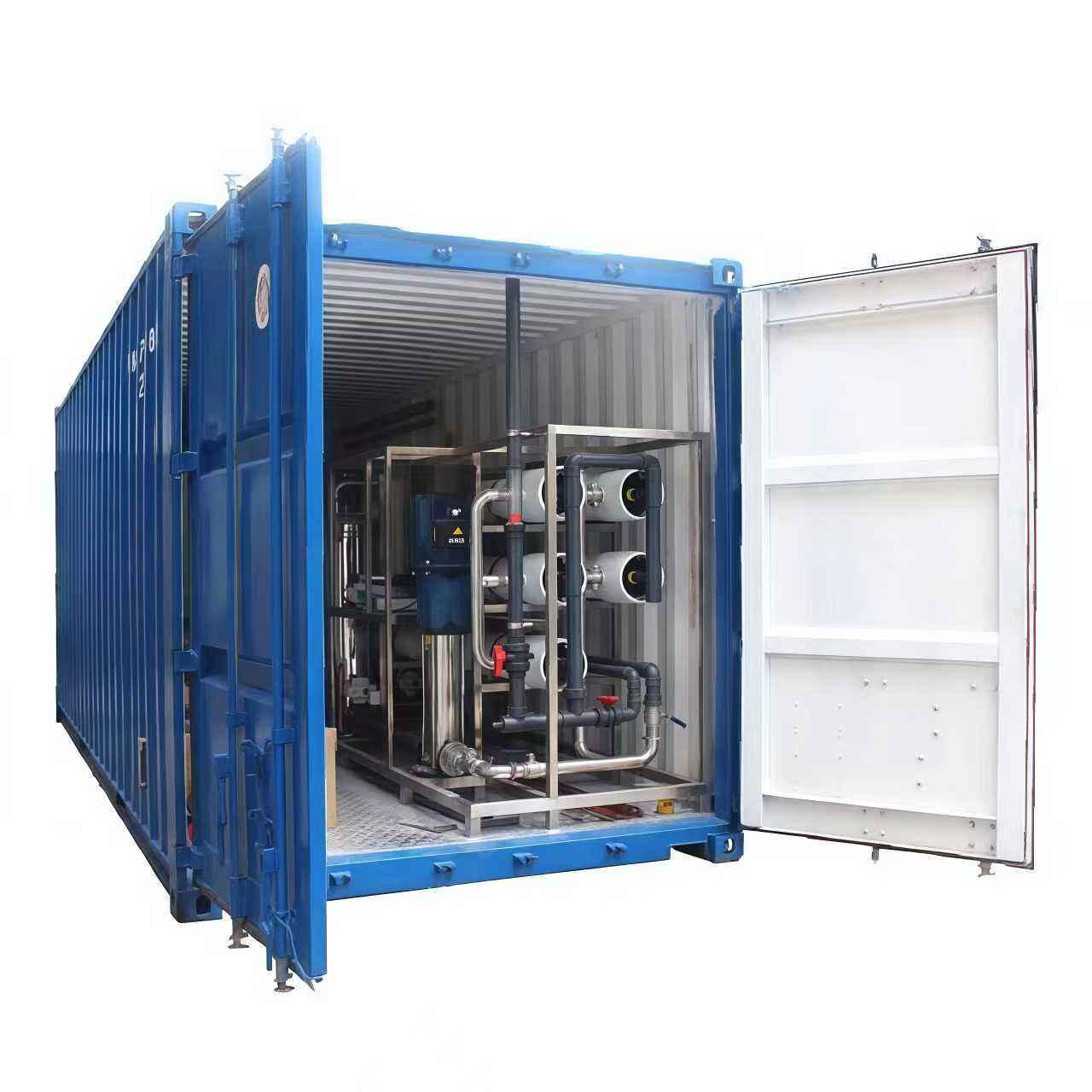

  • Installed inside a standard 40-ft High Cube ISO container
  • Approximately 35% footprint reduction compared with two-container systems
  • Fast transportation, installation, and commissioning

The FRO-CUFRO-200 is designed for applications requiring reliable treatment of variable and challenging water sources. Typical applications include:

• Surface water treatment from rivers, lakes, and reservoirs
• Municipal wastewater effluent polishing and reuse
• Industrial process water production
• Food and beverage water treatment
• Textile and dyeing wastewater recovery
• Power plant cooling tower blowdown recovery
• Industrial water reclamation projects

The system is especially suitable for regions with high organic loading, seasonal turbidity variation, and limited installation space.

Each FRO-CUFRO-200 system undergoes comprehensive factory testing before delivery, including:

• 48-hour integrated wet testing
• UF membrane integrity testing
• RO membrane performance verification
• Complete PLC logic testing

Each containerized system is supplied with complete technical documentation, including:

• System P&ID drawings
• Equipment test certificates
• Chemical cleaning procedures
• Commissioning checklists

Optional services include:

• On-site commissioning
• Operator training
• Preventive maintenance agreements

The FRO-CUFRO-200 provides an efficient and flexible UF + RO containerized solution for municipalities, industries, and infrastructure projects requiring high-quality water production with minimal footprint and simplified operation.
