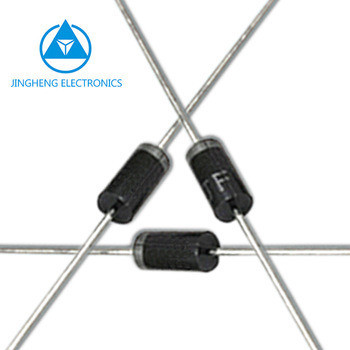

SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
SF38 SUPER FAST RECTIFIER DIODES WITH DO-201AD PACKAGE AND OJ JUNCTION STRUCTURE
Specifications
Model NO. :
SF38
Structure :
OJ JUNCTION
Material :
Silicon
Transport Package :
Ammo Box
Specification :
Through Hole
Trademark :
JF
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

SUPER FAST RECTIFIER DIODES
Electronics Component

Part Number: SF31 THRU SF38

Major Parameter: Reverse Voltage: 50 to 600 Volts

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA uA uA V nS
SF31/SF31G 50 3.0 5.0 50 0.95 35 DO-201AD
SF34/SF34G 200 3.0 5.0 50 0.95 35
SF36/SF36G 400 3.0 5.0 50 1.3 35
SF37/SF37G 500 3.0 5.0 50 1.7 35
SF38/SF38G 600 3.0 5.0 50 1.7 35
ES3A 50 3.0 5.0 100 0.95 35 SMB
ES3G 400 3.0 5.0 100 1.25 35
ES3J 600 3.0 5.0 100 1.7 35
ES3K 800 3.0 5.0 100 2.2 35

Brand: JF

Package: DO-201AD Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

>Low forward voltage drop
>High current capability
>High reliability
>High surge current capability
>Lead (Pb)-free component
>Component in accordance to RoHS 2011 65 EU
>High temperature soldering guaranteed:260 C/10 seconds at terminals

Application:
Used in power supply, lighting, auto, home appliance field
