Specifications
Model NO. :
MUR860M2
Luminous Intensity :
NO LIGHT
Color :
NO LIGHT
Structure :
Alloy
Material :
Silicon
TYPE :
FAST REVOERY
CURRENT :
8A
VOLTAGE :
200-1200V
LOGO :
JF OR JH
Transport Package :
Tube
Specification :
High Power Package
Trademark :
JF, JH
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
5.58cm * 1.48cm * 0.38cm
Package Gross Weight :
0.002kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

LOW VF SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component

Part Number: MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2

Major Parameter:

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA uA uA V nS
MUR820M2 200 8.0 5.0 50 0.975 35 TO-252
MUR840M2 400 8.0 5.0 50 1.3 35
MUR860M2 600 8.0 5.0 50 1.7 35
MUR880M2 800 8.0 5.0 50 2.4 45
MUR8120M2 1200 8.0 5.0 50 3.30 50

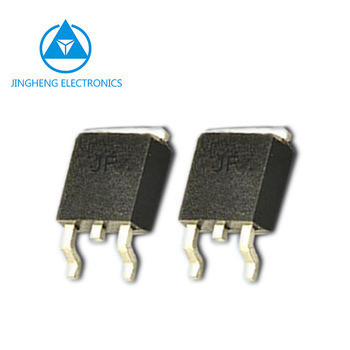

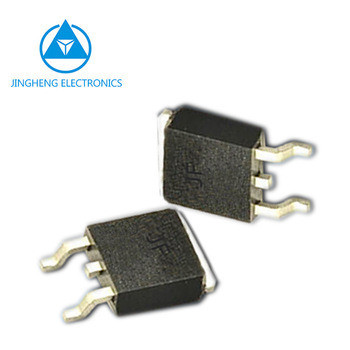

Package: TO-252
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

Features:

· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Low Reverse Leakage Current
· High surge capability
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field
