Specifications
Model NO. :
MUR560
Structure :
Metal Sealed
Material :
Silicon
Transport Package :
Tube
Specification :
High Power Package
Trademark :
JF, JH
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
30.00cm * 40.00cm * 40.00cm
Package Gross Weight :
8.000kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

SUPER FAST RECTIFIER DIODES
Electronics Component

Part Number: MUR520 THRU MUR560

Major Parameter:

Reverse Voltage - 200 -600 Volts
Forward Current - 5.0Amperes

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA uA uA V nS
MUR520 200 5.0 5.0 50 0.975 35 TO-220AC
MUR530 300 5.0 5.0 50 1.3 35
MUR540 400 5.0 5.0 50 1.3 35
MUR560 600 5.0 5.0 50 1.7 35
MURF520 200 5.0 5.0 50 0.975 35 ITO-220AC
MURF540 400 5.0 5.0 50 1.3 35
MURF560 600 5.0 5.0 50 1.7 35

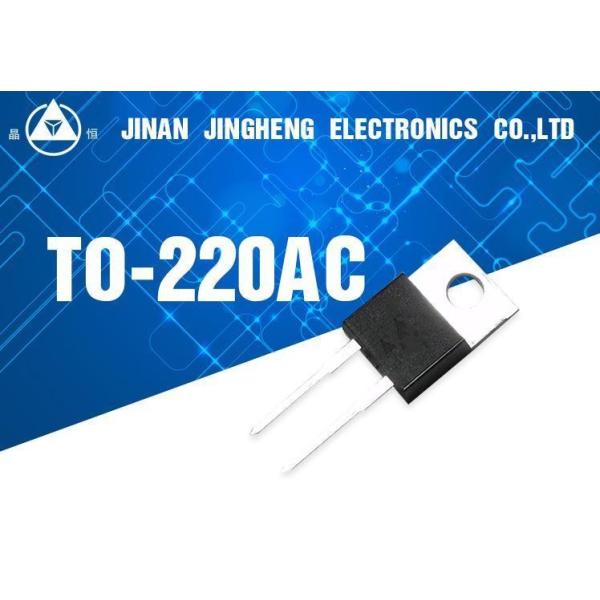

Package: TO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

* Pastic package has Underwriters Laboratory Flammability Classification 94V-0
* Single rectifier construction
* High surge capability
* For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
* High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
* Fast switching for high efficiency
* Low forward voltage drop
* Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field
