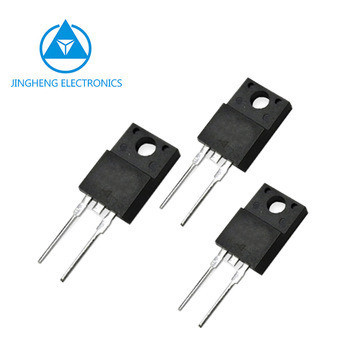

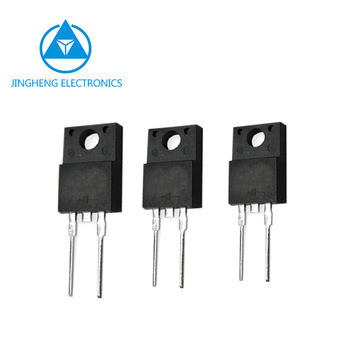

Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Specifications
Model NO. :
MURF860
Structure :
GPP Chip
Material :
Silicon
Transport Package :
Tube
Specification :
High Power Package
Trademark :
JF, JH
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

SUPER FAST RECTIFIER DIODES
Electronics Component

Part Number: MURF820 THRU MURF8120

Major Parameter:

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA uA uA V nS
MURF820 200 8.0 5.0 50 0.975 35 ITO-220AC
MURF840 400 8.0 5.0 50 1.3 35
MURF860 600 8.0 5.0 50 1.7 35
MURFS860 600 8.0 5.0 50 2.3 25
MURF880 800 8.0 5.0 50 2.4 45
MURF8120 1200 8.0 5.0 50 3.30 50
MURFS8120 1200 8.0 5.0 50 3.30 50

Brand: JF logo/ JH logo

Package: ITO-220AC package, 2PINS
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Single rectifier construction
High surge capability
For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
Fast switching for high efficiency
Low forward voltage drop
Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field
