Specifications
Brand Name :
ZSX
Model Number :
J30J-31ZKP-A
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description

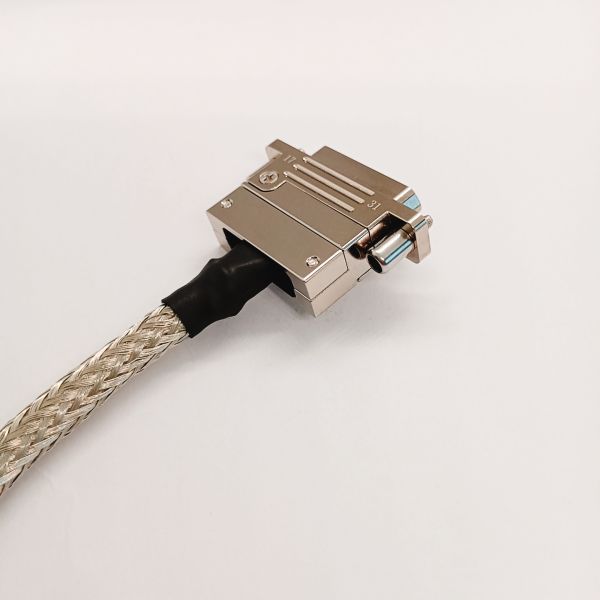

1.27mm J30J Connector ODM 31 Pin Connector J30J-31ZKP-A With Shielding Braid Cable Clipper
Product Overview

J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size with a metal casing available in 12 specifications ranging from 9 to 144 pins. The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention. Termination forms include crimping, direct insertion, bending insertion, and welding, with crimped wire cross-sectional area of 0.1mm² to 0.15mm², suitable for various electronic and electrical systems requiring high density, miniaturization, lightweight, and high reliability.

Product Performance Specifications
Product Model J30J-25ZKP-A Contact Resistance ≤10mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 800V
Random Vibration Power spectral density 0.4G²/Hz, RMS acceleration 23.1G Mechanical Life 500 times
Impact 735m/s² 11ms Rated Current 3A
Product Visual Display
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Related Product Recommendations
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Product Selection Reference
Shell Size Specifications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Appearance After Matching
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Company Facilities
Office Area
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Production Plant Area
Machining Production Workshop
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Precision Assembly Production Workshop
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Glass-to-Metal Sealed Production Workshop
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Certifications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Customer Visits
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Product Packaging
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
Packaging and Shipping
1.27mm Pitch J30J Connector with Metal Casing and 31 Pin Configuration for High-Density Applications
  • Standard export carton packaging
  • Custom specifications available including logo and other requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM (Original Design Manufacturing).

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is higher for orders under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with the lowest shipping costs. We also offer air and sea freight options.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
