J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Specifications
Brand Name :
ZSX
Model Number :
J30J-51TJS
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector J30J-51TJS
Gender :
Male
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description

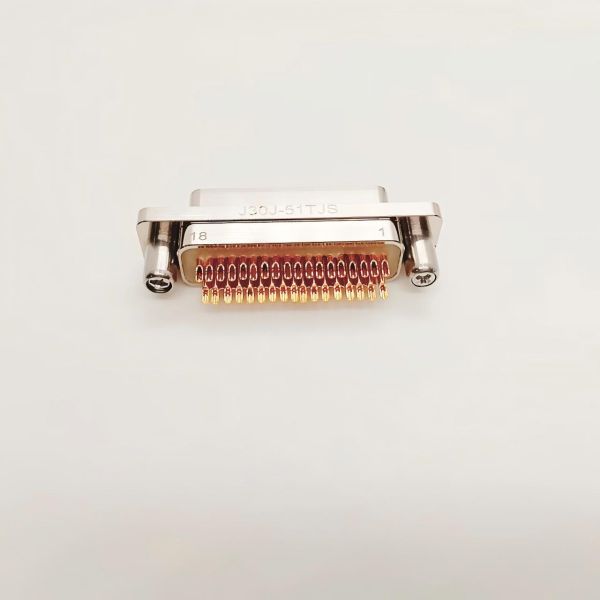

Micro-D Connectors M83513 J30J-51TJS 1.27 Pitch Soldering Type Male Connector
Product Overview

J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size with a metal casing and comes in 12 specifications ranging from 9 to 144 pins.

The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention. Termination forms include crimping, direct insertion, bending insertion, and welding, with crimped wire cross-sectional area of 0.1mm² to 0.15mm², suitable for high-density, miniaturized, lightweight, and high-reliability electronic and electrical systems.

Product Performance Details
Product Model J30J-51TJS Contact Resistance ≤10mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 800V
Random Vibration Power spectral density 0.4G²/Hz, RMS acceleration 23.1G Mechanical Life 500 times
Impact 735m/s² 11ms Rated Current 3 A

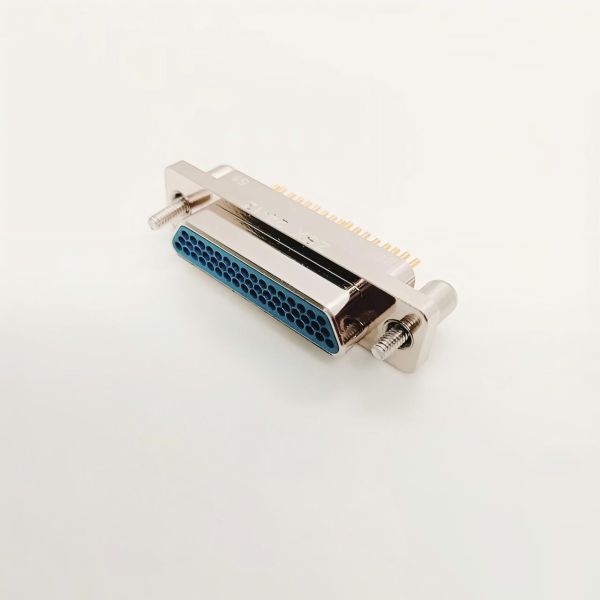

Product Display
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Product Appearance Drawing
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Related Product Recommendations
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Product Selection Reference - Shell Size
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Display of Manufacturing Strength
Production Facilities
Machining Production Workshop
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Precision Assembly Production Workshop
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Glass-to-Metal Sealed Production Workshop
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Obtained Certification
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Customer Visits
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Product Packaging
J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
Packaging and Shipping
  • Standard export carton J30J Micro-D Connector with 1.27mm Pitch Metal Body and Precision Twist Pins for High-Density Applications
  • Customized specifications including logos according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities and ODM requirements)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. Pricing is higher for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with the lowest shipping costs. We also offer air and sea freight options.
Q: How long does it usually take to receive the goods?
A: Generally 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
