100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Specifications
Brand Name :
ZSX
Model Number :
J30J-100ZKW-J
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector J30J-100ZKW-J
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description
Micro D Connector PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Connector J30J-100ZKW-J
Product Overview

Micro D Connector PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Connector J30J-100ZKW-J

The J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They feature precision twisted wire elastic pins (precision twist pins) with a contact piece spacing of 1.27mm. The product is compact in size with a metal casing and comes in 12 specifications ranging from 9 to 144 pins. The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention. Termination forms include crimping, direct insertion, bending insertion, and welding, with crimped wire cross-sectional areas from 0.1mm² to 0.15mm². Suitable for interconnection of various electronic and electrical systems requiring high density, miniaturization, lightweight, and high reliability.

Product Performance Specifications
Product Model J30J-100ZKW-J Contact Resistance ≤10mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 800V
Random Vibration Power spectral density 0.4G²/Hz, RMS acceleration 23.1G Mechanical Life 500 times
Impact 735m/s² 11ms Rated Current 3 A

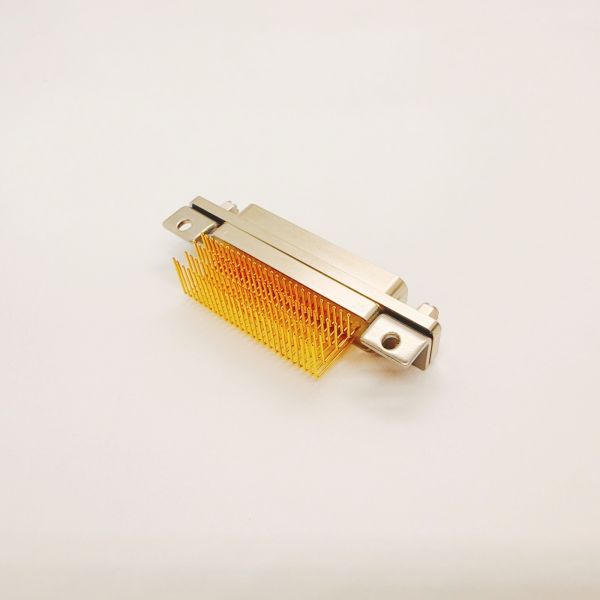

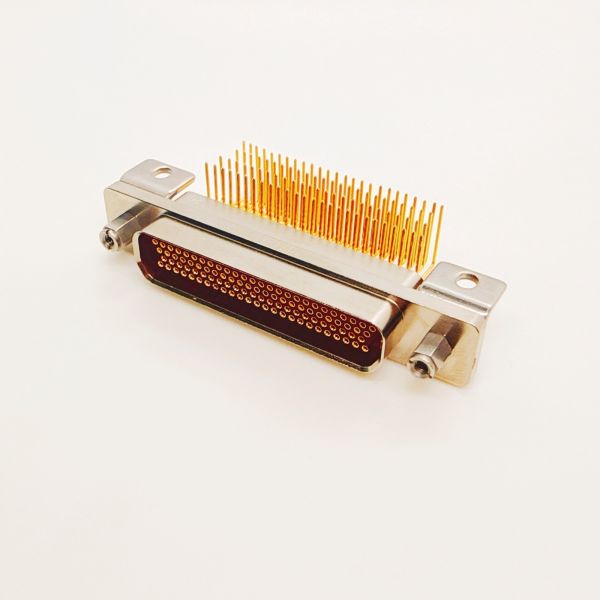

Product Display
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Product Appearance Drawing
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Related Product Recommendations
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Product Selection Reference
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Manufacturing Capabilities
Production Plant Area
Machining Production Workshop
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Precision Assembly Production Workshop
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Glass-to-Metal Sealed Production Workshop
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Quality Certifications
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Customer Engagement
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Product Packaging
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount 100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Packaging and Shipping
  • Standard export carton packaging
  • Customized specifications including logo and other requirements according to customer needs
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity, ODM requirements, etc.)
100 Pin 1.27mm Pitch Female Right Angle Micro D Connector J30J-100ZKW-J for High-Density PCB Mount
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM (Original Design Manufacturing) services.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. Pricing is higher for orders under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with the lowest shipping costs. We also offer air and sea freight options.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
