Micro Rectangular Connector J29A Series Jack (Female) Connector J29A-21ZKP With Nylon Thread Sleeve

J29A series complies with GJB2446A (equivalent to MIL-DTL-83513). The plug and socket have functions such as threaded locking, guiding, and preventing misinsertion.The terminal connection forms of the product include crimping, direct insertion, bending insertion, welding, etc. Among them, the cross-sectional area of the crimped wire is 0.15mm² - 0.3mm². It adopts precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of well 1.9mm, and the product volume is small. Due to its excellent vibration resistance and resistance to high and low temperatures, the J29A connector core is suitable for scenarios with strict reliability requirements. In the aerospace field, it can be used for the internal circuit interconnection of airborne radars and spaceborne electronic equipment. In the field of electronic computers, it is suitable for the component connection of high-end industrial computers and special control computers. It is also often used in military electronic equipment, precision testing instruments,etc., to achieve stable interconnection of complex circuit systems.

Product display

Product Performance Details

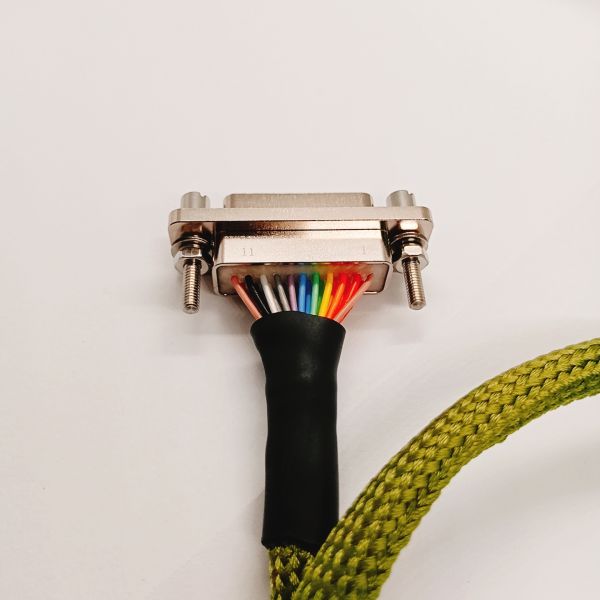

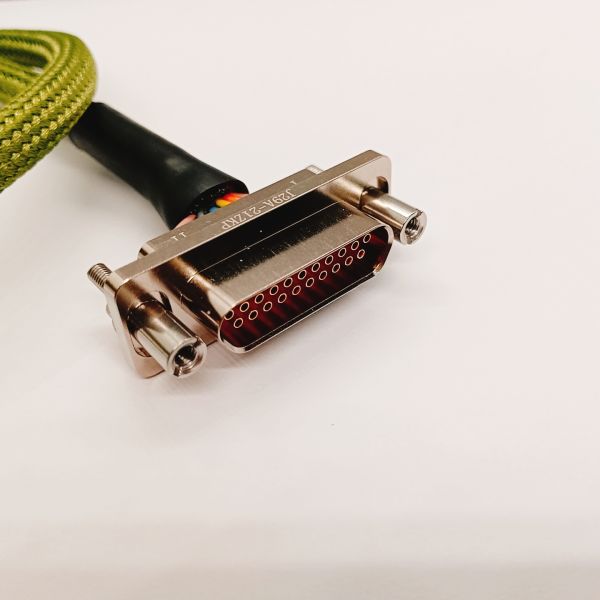

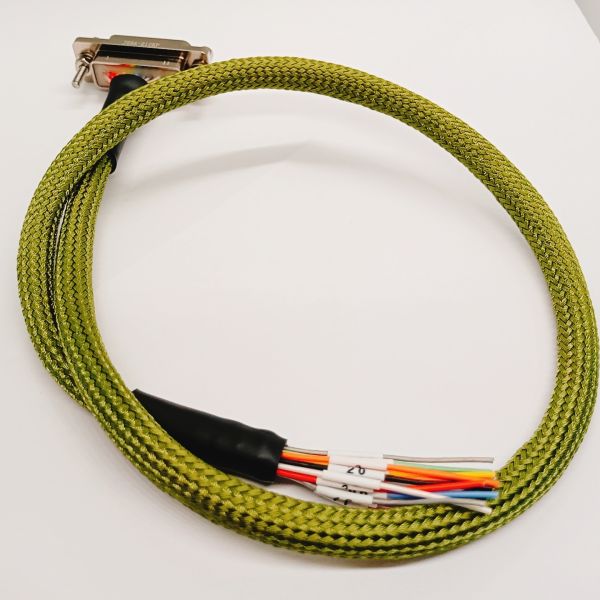

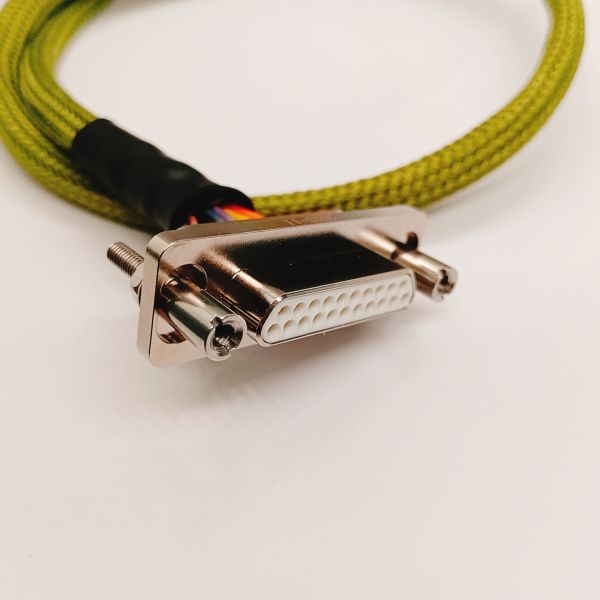

Physical product display

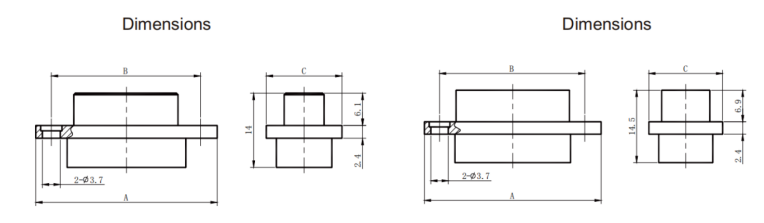

Product appearance drawing

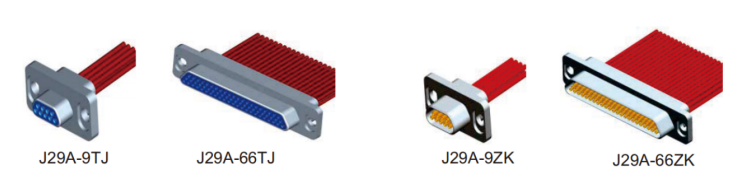

Related product recommendations

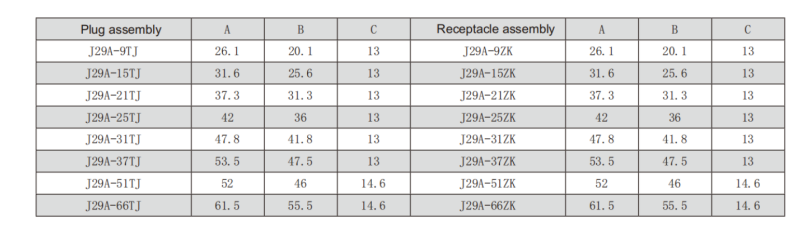

Product selection reference

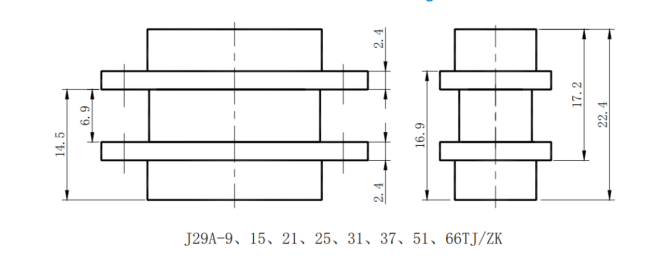

Dimension after matching

Display of Strength

Office area

Production Plant Area

Machining production workshop

Precision Assembly Production Workshop

Glass-to-metal sealed production workshop

Obtained Certification Certificate

Customer visit

Product packaging

Packaging and Shipping

• Standard export carton
• As per customized specifications such as logo or others According to customers' requirements
• Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
