9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Specifications
Brand Name :
ZSX
Model Number :
J30J-21ZKS
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Rectangular Electrical Connectors
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description
Micro rectangular connector J30J female (socket) welded type
21-pin connector welded type J30J-21ZKS

J30J series of micro rectangular electrical connectors comply with GJB2446A(equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size. The casing is made of metal and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets can be threaded locked, guided, and prevent misinsertion, etc. The termination forms include crimping, direct insertion, bending insertion, and welding, etc. Among them, the cross-sectional area of the crimped wire is 0.1mm ² to 0.15mm ², which is suitable for the interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.

Product display
Product Performance Details
Product model J30J-21ZKS Contact resistance ≤10mΩ
Ambient temperature -55℃~+125℃ Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Medium pressure resistance 800V
Random vibration Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G Mechanical life 500 times
Impact 735m/s2 11ms Rated current 3 A

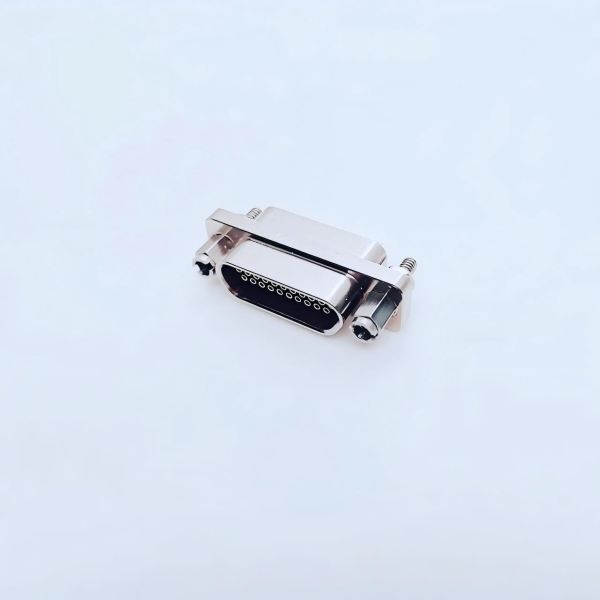

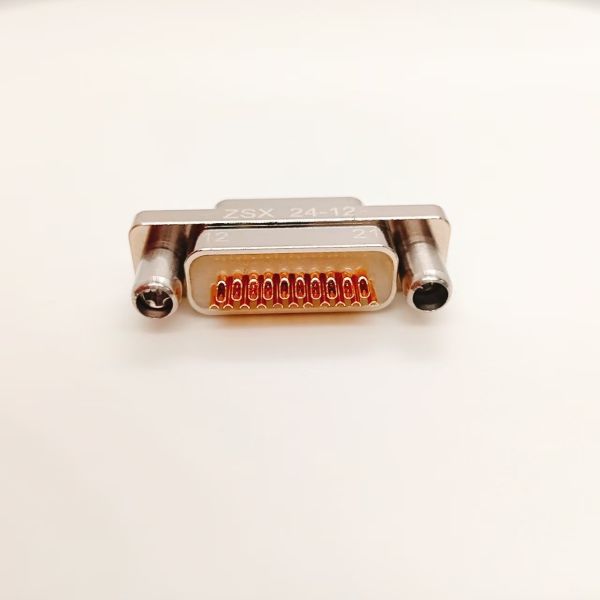

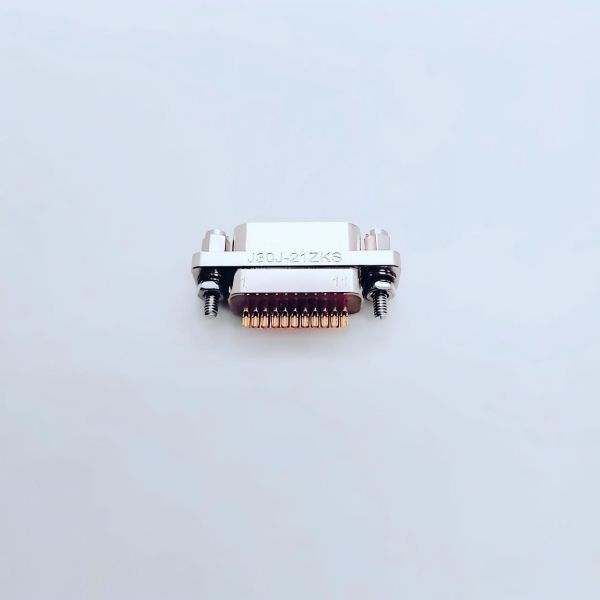

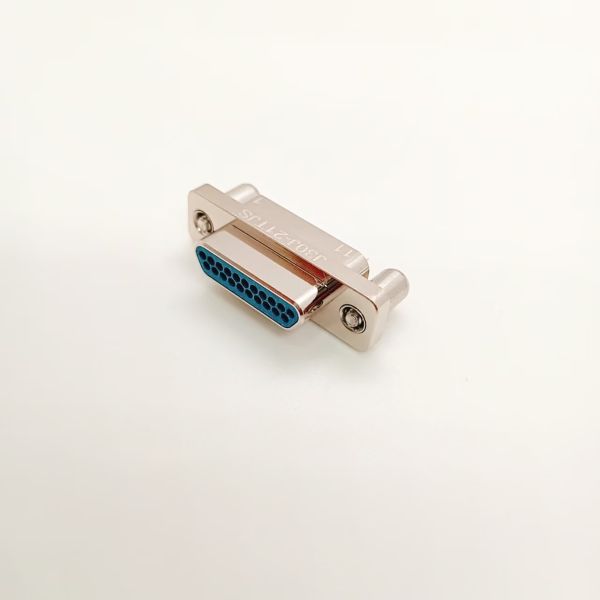

Physical product display
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector

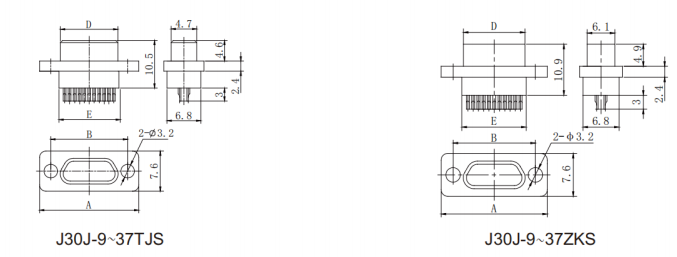

Product appearance drawing
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector

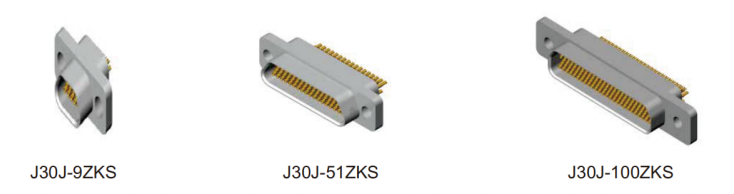

Related product recommendations
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector

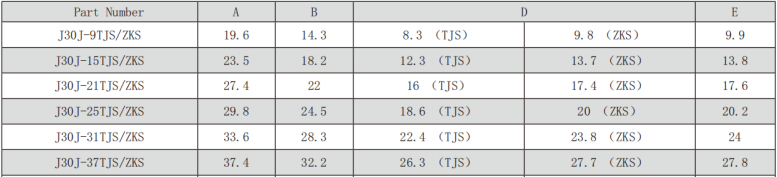

Product selection reference
Shell size
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Display of Strength
Production Plant Area
Machining production workshop
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Precision Assembly Production Workshop
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Glass-to-metal sealed production workshop
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Obtained Certification Certificate
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Customer visit
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Product packaging
9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector 9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
Packaging and Shipping
  • Standard export carton9 Pin - 144 Pin Rectangular Electrical Connectors 21 Pin Female Electrical Connector
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
