SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications
SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications
SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications
SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications
SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications
SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications
Specifications
Brand Name :
ZSX
Model Number :
SMA-KFB2
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.55-$0.96(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector SMA-KFB2
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

SMA-KFB2 SMA Female 4 Hole Flange Soldering Type For 086 Coaxial Cable

Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.
Product display
Product Performance Details
Product model SMA-KFB2 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Stainless steel
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact :≤2mΩ Temperature range -45℃~+125℃

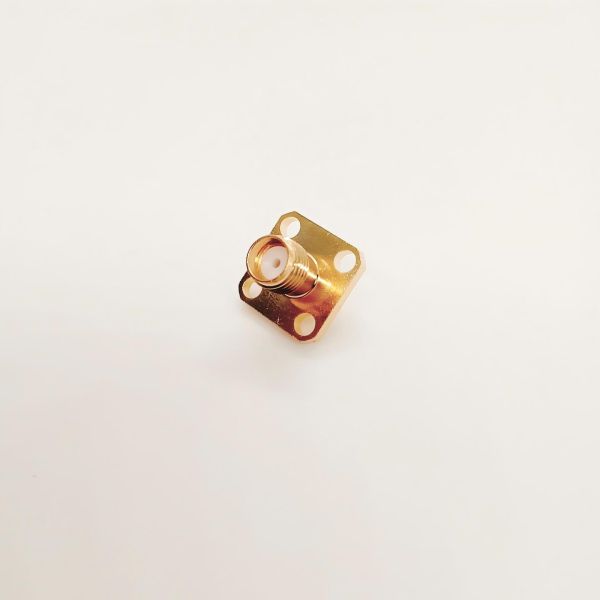

Physical product display

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF ApplicationsSMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

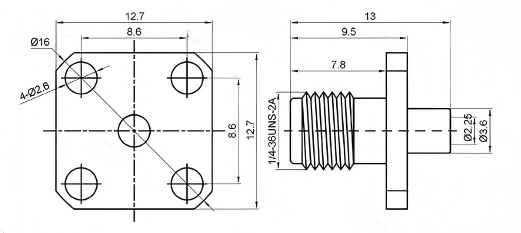

Product external dimensions

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Related product recommendations

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF ApplicationsSMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Display of Strength
Production Plant Area
Machining production workshop

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Precision Assembly Production Workshop

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Glass-to-metal sealed production workshop

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF ApplicationsSMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Obtained Certification Certificate

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF ApplicationsSMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Customer visit

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Product packaging

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

Packaging and Shipping

SMA Female Connector DC-6GHz Gold-Plated Brass 4 Hole Flange Mount for RF Applications

  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
