RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Specifications
Brand Name :
ZSX
Model Number :
MMCX-C-J-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF MMCX Connector MMCX-C-J-1.5
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
RF Connector MMCX-C-J-1.5 MMCX Male Connector RG316/RG174

MCX Connector (Micro Coaxial Connector) is an ultra-miniature RF coaxial connector. The MCX connector is a more compact version of the SMB, with a diameter 30% smaller than that of the SMB connector, being 3.6mm. Its inner conductor diameter and insulator outer diameter are the same as those of the SMB series connectors. It adopts a push-in coupling structure, featuring low insertion and extraction force, rapid connection and disconnection, and is convenient for quick installation and disassembly. It is mainly applied to wireless communication equipment, GPS receivers and radio frequency test instruments.

Product display
Product Performance Details
Product model MMCX-C-J-1.5 Dielectric constant


≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-3GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.2 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance

Center contact:≤5mΩ

Outer contact:≤2.5mΩ

 Temperature range -45℃~+125℃

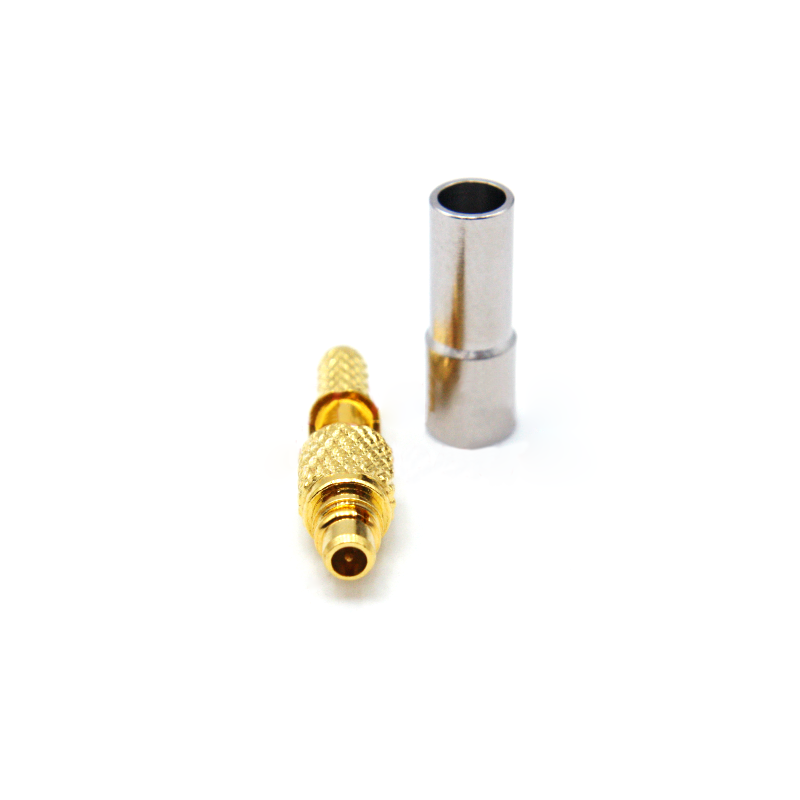

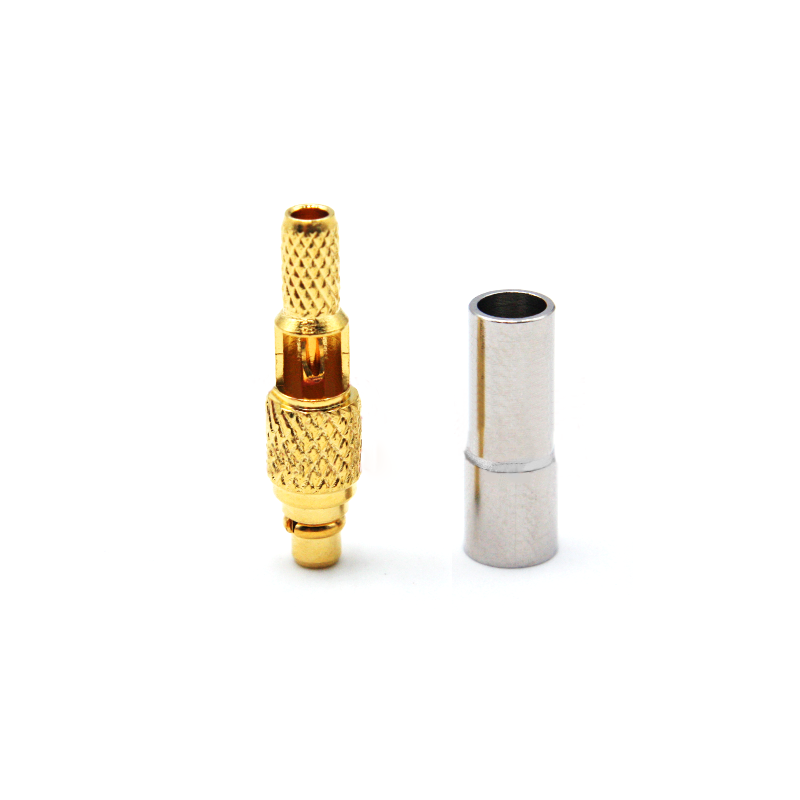

Physical product display
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5

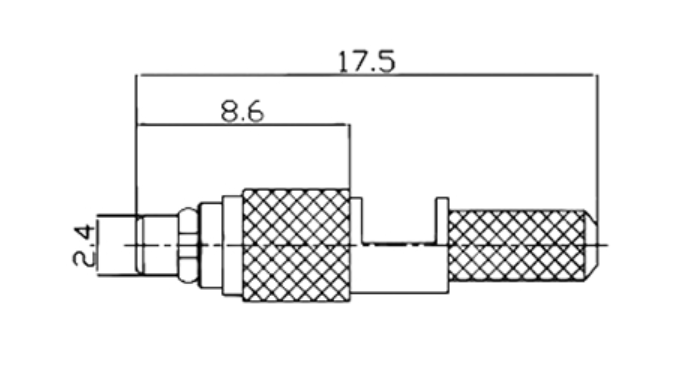

Product external dimensions
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Related product recommendations
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Display of Strength
Production Plant Area
Machining production workshop
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Precision Assembly Production Workshop
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Glass-to-metal sealed production workshop
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Obtained Certification Certificate
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Customer visit
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Product packaging
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5 RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
Packaging and Shipping
RF MMCX Male Connector RG316 / RG174 Micro Coaxial Connector MMCX-C-J-1.5
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
