Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Specifications
Brand Name :
ZSX
Model Number :
MCX-KE
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
MCX Connector
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
Gold Plated MCX Surface Mount Jack (Female) DC-6GHz RF Coaxial Connector

MCX Connector (Micro Coaxial Connector) is an ultra-miniature RF coaxial connector. The MCX connector is a more compact version of the SMB, with a diameter 30% smaller than that of the SMB connector, being 3.6mm. Its inner conductor diameter and insulator outer diameter are the same as those of the SMB series connectors. It adopts a push-in coupling structure, featuring low insertion and extraction force, rapid connection and disconnection, and is convenient for quick installation and disassembly. It is mainly applied to wireless communication equipment, GPS receivers and radio frequency test instruments.

Product display
Product Performance Details
Product model MCX-KE Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.2 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance

Center contact:≤5mΩ

Outer contact:≤2.5mΩ


Temperature range


-45℃~+125℃

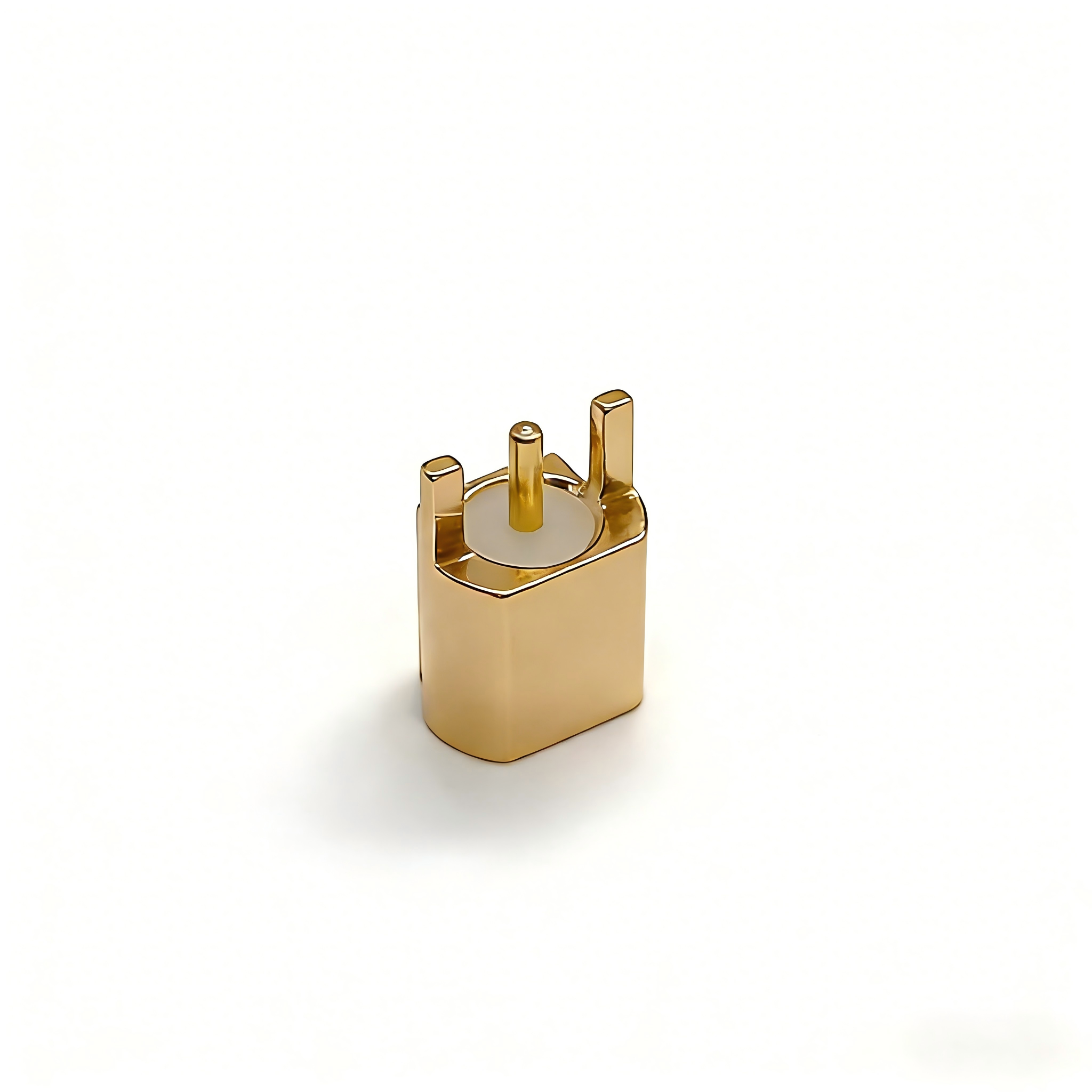

Physical product display
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz

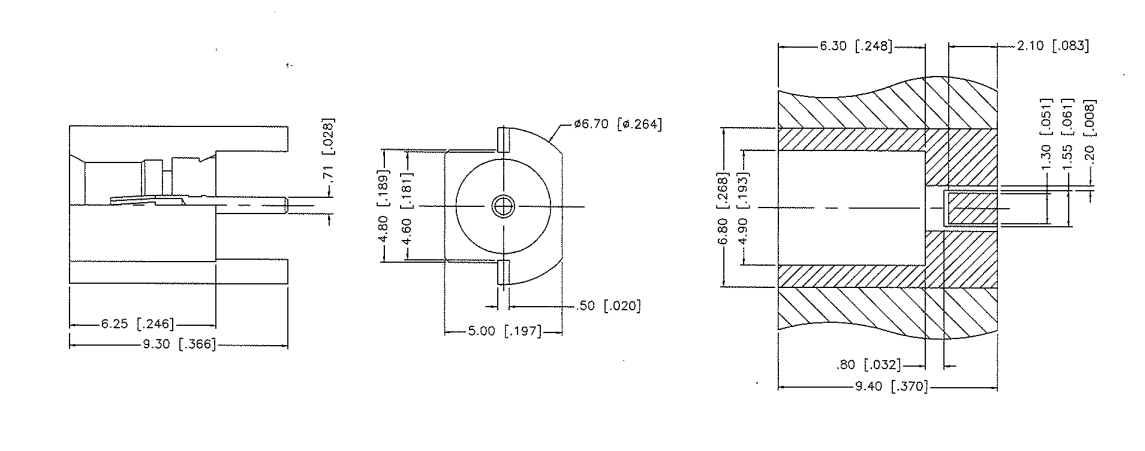

Product external dimensions
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Related product recommendations
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Display of Strength
Production Plant Area
Machining production workshop
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Precision Assembly Production Workshop
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Glass-to-metal sealed production workshop
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Obtained Certification Certificate
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Customer visit
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Product packaging
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
Packaging and Shipping
Gold Plated Brass MCX Connector Surface Mount Female RF Coaxial Connector DC-6GHz
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
