Specifications
Brand Name :
ZSX
Model Number :
MCX-C-J-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF MCX Connector MCX-C-J-1.5
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
RG316 / RG174 MCX RF Connector DC-6GHz Crimp Male Connectors MCX-C-J-1.5

MCX-C-J-1.5 MCX Male Crimping Cable Connector for RG316/RG174 cables. MCX (Micro Coaxial Connector) is an ultra-miniature RF coaxial connector that is 30% smaller than SMB connectors with a diameter of 3.6mm. Features push-in coupling structure for low insertion/extraction force, rapid connection/disconnection, and convenient installation. Ideal for wireless communication equipment, GPS receivers, and RF test instruments.

Product Performance Specifications
Product ModelMCX-C-J-1.5Body MaterialNickel-plated brass
Dielectric Constant≥5000MΩCentral ConductorGold-plated brass
Characteristic Impedance50 ohmInsulator MaterialPTFE
Frequency RangeDC-6GHzDurability≥500 Cycles
Voltage Standing Wave Ratio≤1.2Temperature Range-45℃ to +125℃
Medium Pressure Resistance≥1000V RMS, 50Hz, at sea levelContact ResistanceCenter contact: ≤5mΩ
Outer contact: ≤2.5mΩ

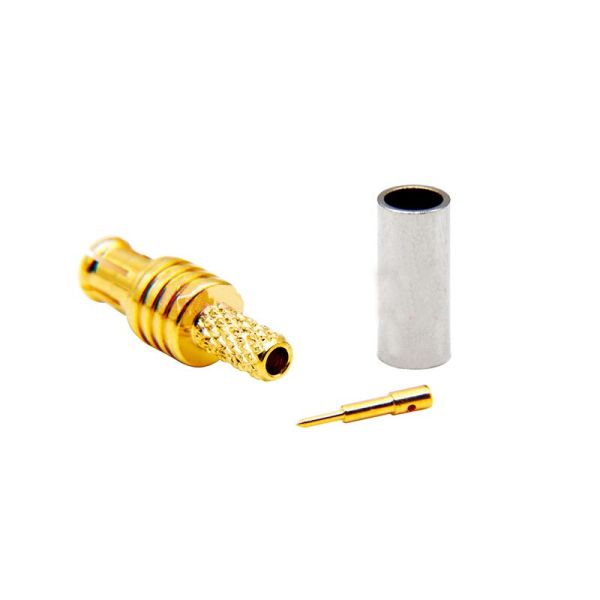

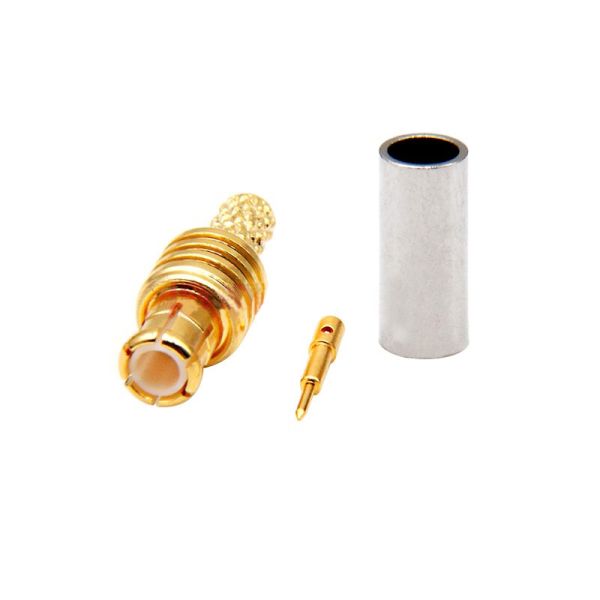

Product Images
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Product Dimensions
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Related Products
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Company Facilities
Office Area
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Production Facilities
Machining Production Workshop
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Precision Assembly Production Workshop
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Glass-to-Metal Sealed Production Workshop
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Quality Certifications
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Customer Visits
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Product Packaging
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Packaging and Shipping
  • Standard export carton packaging
  • Customized specifications including logo and branding available
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders
MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics, Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. Pricing is higher for orders under 200 pieces.
Which logistics company does your company ship through?
We cooperate with international logistics companies DHL, UPS, FedEx, TNT to ensure fast delivery with competitive shipping costs. Air and sea freight options also available.
How long does it usually take to receive the goods?
Generally 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
