50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Specifications
Brand Name :
ZSX
Model Number :
SMP/SMA-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$0.99 --$1.25 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-55℃~+125℃
VSWR :
≤ 1.25
Description
50 Ohm RF Adapter DC-6GHz Female To Female Coax Adapter SMP To SMA
SMP Female to SMA Female RF Adapter

RF Adapters are passive components used in signal transmission systems for Radio Frequency applications (typically 3 kHz to 300 GHz frequency band). These adapters facilitate reliable connections and signal conversion between different RF interface types, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability during RF signal transmission. Widely used in communication, radar, test and measurement, aerospace, and medical equipment applications.

Product Performance Specifications
Product ModelSMP/SMA-KKContact ResistanceCenter contact: ≤3mΩ
Outer contact: ≤2mΩ
Characteristic Impedance50 ohmBody MaterialGold-plated brass
Frequency RangeDC-6GHzInsulatorPTFE
Voltage Standing Wave Ratio≤1.2Central ConductorGold-plated beryllium copper
Medium Pressure Resistance≥500V RMS, 50Hz, at sea levelTemperature Range-45℃ to +125℃
Dielectric Constant≥1000MΩDurability≥500 Cycles

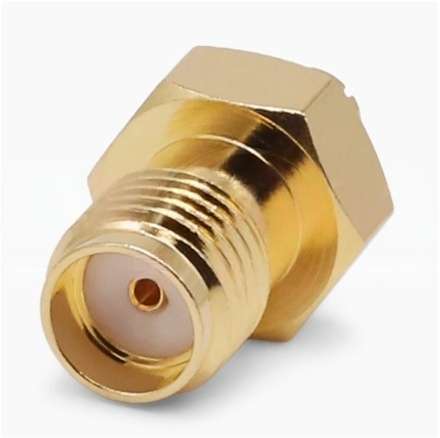

Physical Product Display
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA

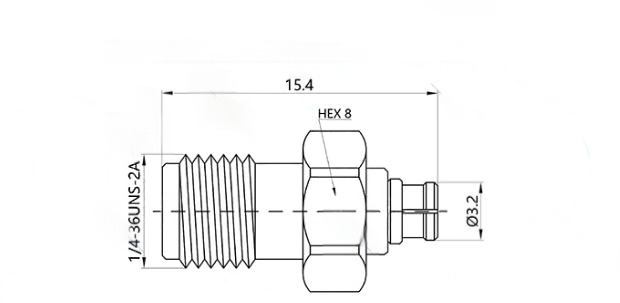

Product External Dimensions
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Related Product Recommendations
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Company Overview
Office Area
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Production Plant Area
Machining Production Workshop
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Precision Assembly Production Workshop
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Glass-to-Metal Sealed Production Workshop
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Obtained Certification Certificates
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Customer Visits
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Product Packaging
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Packaging and Shipping
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity, ODM requirements, etc.)
50 Ohm RF Adapter DC-6GHz Female to Female Coax Adapter SMP to SMA
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.

Q: Does your company accept customized products?

A: Yes, we accept ODM (Original Design Manufacturer) services.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. Pricing is higher for orders under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies including DHL, UPS, FedEx, TNT year-round to ensure quick delivery with competitive shipping costs. We also offer air and sea freight options.

Q: How long does it usually take to receive the goods?

A: Typically 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
