SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Specifications
Brand Name :
ZSX
Model Number :
SMA/SMP-JJ
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$10.86 --$14.50 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to male
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-55℃~+125℃
VSWR :
≤ 1.25
Description

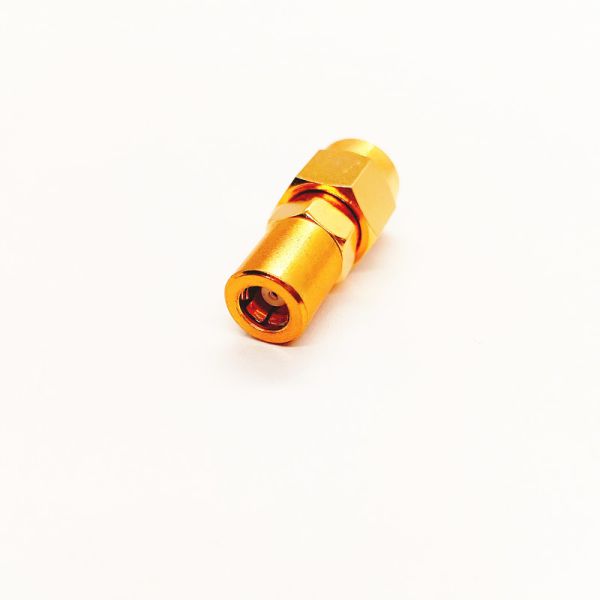

SMA/SMP-JJ RF Adapter DC-18GHz SMA Male to SMP Male Coaxial Adapter

SMP/SMA-JJ is a high‑performance 50Ω straight RF adapter that connects SMA male and SMP male interfaces, widely used in test and measurement, communication systems, aerospace, radar, and high‑density microwave modules. It supports frequency range from DC to 26.5 GHz with low insertion loss and excellent VSWR performance, ensuring stable signal transmission and high signal integrity. Featuring a threaded SMA connector and a push‑on SMP connector, this adapter enables quick, reliable mating and convenient installation. Constructed with gold‑plated beryllium copper contacts, stainless steel body, and high‑performance insulation material, it provides strong durability, wide temperature resistance from -55°C to +165°C, and long service life. Ideal for high‑frequency, high‑reliability interconnection in modern RF and microwave systems.

Product display
Product Performance Details
Product model SMA/SMP-JJ Contact resistance Center contact:≤3mΩ Outer contact:≤2mΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-18GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥500V RMS ,50Hz, at sea level Temperature range -45℃~+125℃
Dielectric constant ≥1000MΩ Durability ≥500 Cycles
Physical product display
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter


Related product recommendations
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Display of Strength
Office area
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Production Plant Area
Machining production workshop
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Precision Assembly Production Workshop
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Glass-to-metal sealed production workshop
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Obtained Certification Certificate
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Customer visit
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Product packaging
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
Packaging and Shipping
SMA/SMP-JJ RF Adapter DC-18GHz SMA Male To SMP Male Coaxial Adapter
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
