SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Specifications
Brand Name :
ZSX
Model Number :
SMP-KF-3506
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMP Connector
Gender :
Female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-55℃~+125℃
VSWR :
≤ 1.25
Description

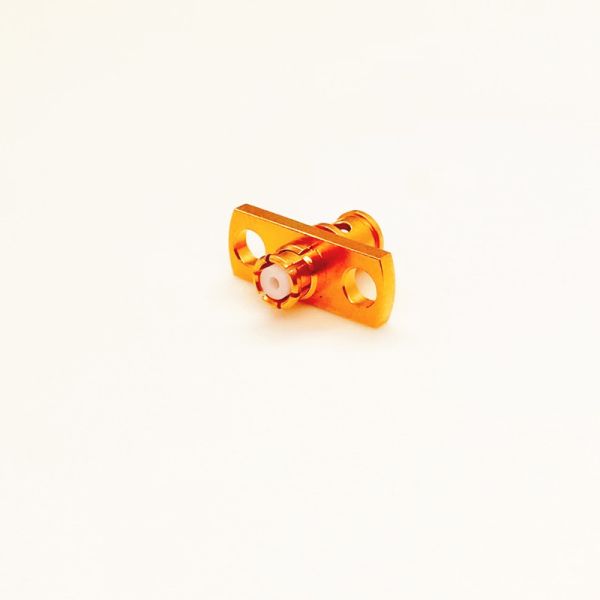

RF Connector SMP Female 2 Holes Flange Connector For 3506 Cable

SMP connector is a type of ultra-small push-in RF coaxial connector, featuring a characteristic impedance of 50Ω. It has small size, wide frequency range, quick connectors with the function of blind insertion, and a certain degree of floating capacity, which are its main features. There are various installation methods such as surface mounting, through-hole mounting, and edge mounting, which can meet different requirements for circuit board installation. It is compatible with various types of flexible and semi-rigid cables, offering a wide range of applications. It is mainly applied in communication, aerospace and defense, testing, and medical equipment.

Product display
Product Performance Details

Product model

SMP-KF-3506

 Contact resistance

Center contact:≤6mΩ Outer contact:≤2mΩ

Characteristic impedance

50 ohm

Body material

Gold-plated brass

Frequency range

DC-18GHz

 Insulator PTFE

Voltage standing wave ratio

≤1.25

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

≥500V RMS ,50Hz, at sea level

Temperature range

-45℃~+125℃

Dielectric constant

≥1000MΩ

Durability

≥500 Cycles
Physical product display
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable

Related product recommendations
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Display of Strength
Office area
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Production Plant Area
Machining production workshop
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Precision Assembly Production Workshop
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Glass-to-metal sealed production workshop
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Obtained Certification Certificate
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 CableSMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Customer visit
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Product packaging
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
Packaging and Shipping
SMP Female Flange Connector with 50Ω Impedance and DC-18GHz Frequency Range for 3506 Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
