SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
Specifications
Brand Name :
ZSX
Model Number :
SMP-KYD4
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMP Connector
Gender :
Female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-55℃~+125℃
VSWR :
≤ 1.25
Description

SMP Female Bulkhead Mounted PCB Connector

SMP connector is a type of ultra-small push-in RF coaxial connector, featuring a characteristic impedance of 50Ω. It has small size, wide frequency range, quick connectors with the function of blind insertion, and a certain degree of floating capacity, which are its main features. There are various installation methods such as surface mounting, through-hole mounting, and edge mounting, which can meet different requirements for circuit board installation. It is compatible with various types of flexible and semi-rigid cables, offering a wide range of applications. It is mainly applied in communication, aerospace and defense, testing, and medical equipment.

Product display

Product Performance Details

Product model

SMP-KYD4

 Contact resistance

Center contact:≤3mΩ Outer contact:≤2mΩ

Characteristic impedance

50 ohm

Body material

Gold-plated brass

Frequency range

DC-18GHz

 Insulator PTFE

Voltage standing wave ratio

≤1.25

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

≥500V RMS ,50Hz, at sea level

Temperature range

-45℃~+125℃

Dielectric constant

≥1000MΩ

Durability

≥500 Cycles

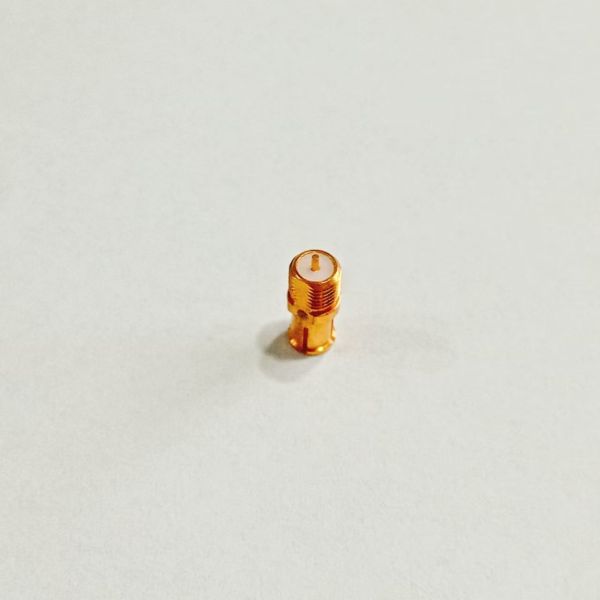

Physical product display

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

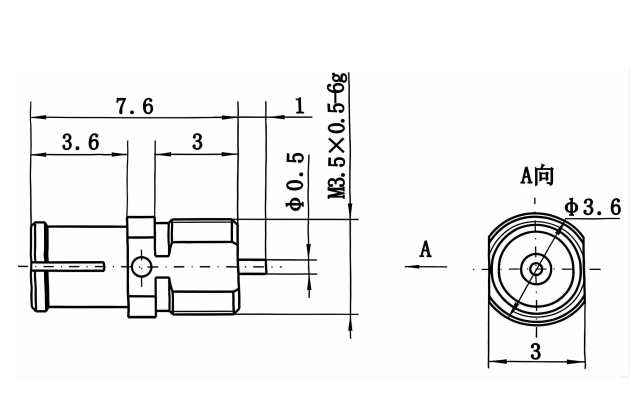

Product external dimensions

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Related product recommendations

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Display of Strength

Office area

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Production Plant Area

Machining production workshop

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Precision Assembly Production Workshop

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Glass-to-metal sealed production workshop

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Obtained Certification Certificate

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Customer visit

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Product packaging

SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4 SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4

Packaging and Shipping SMP RF Coaxial Connector Female Bulkhead Mount Connector SMP-KYD4
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
