J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
Specifications
Brand Name :
ZSX
Model Number :
J14H-52TKL
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J14 Connector J14H-52TKL
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Withstand voltage :
800V
Description
J14 Series Micro Rectangular Connector J14B-26TK-100CM 26-pin Plug Connector

J14H series rectangular connectors are highly reliable connection devices specifically designed for low-frequency circuits. With a dual safety locking mechanism and a compact rectangular structure, they offer both quick operation and resistance to harsh environments, making them core connection components in fields such as aerospace, military electronics, and industrial control. From strategic weapon systems to automated equipment terminals, the J14H builds a solid safety line for every circuit connection with its stable performance. Aerospace: Circuit connections for satellite systems, launch vehicles, and ground support equipment, capable of withstanding extreme temperature, pressure, and vibration environments.
- Military electronics: Strategic weapons, radar equipment, airborne avionics systems, meeting the requirements of high confidentiality and high reliability transmission.- Industrial control: Automated production lines, PLC control cabinets, sensor wiring, suitable for high-density integration and frequent debugging scenarios.- Rail transit: On-board control systems, elevator circuit nodes, anti-vibration and high-humidity performance suitable for on-board working conditions.- Test and measurement: High-frequency test equipment, ground test benches, and low contact resistance ensure signal acquisition accuracy.

Product Performance Details
Product model J14H-52TKL Acceleration 980m/s2
Ambient temperature -55℃~+125℃ Rated current 2 A
Vibration 10Hz~2000Hz 196m/s2 Contact resistance ≤10mΩ
Relative humidity
At 40±2℃,90% to 95%
 Insulation resistance ≥1000mΩ
Impact 980m/s2 Rated current 5 A
Withstand voltage 800 V Mechanical life 500 times

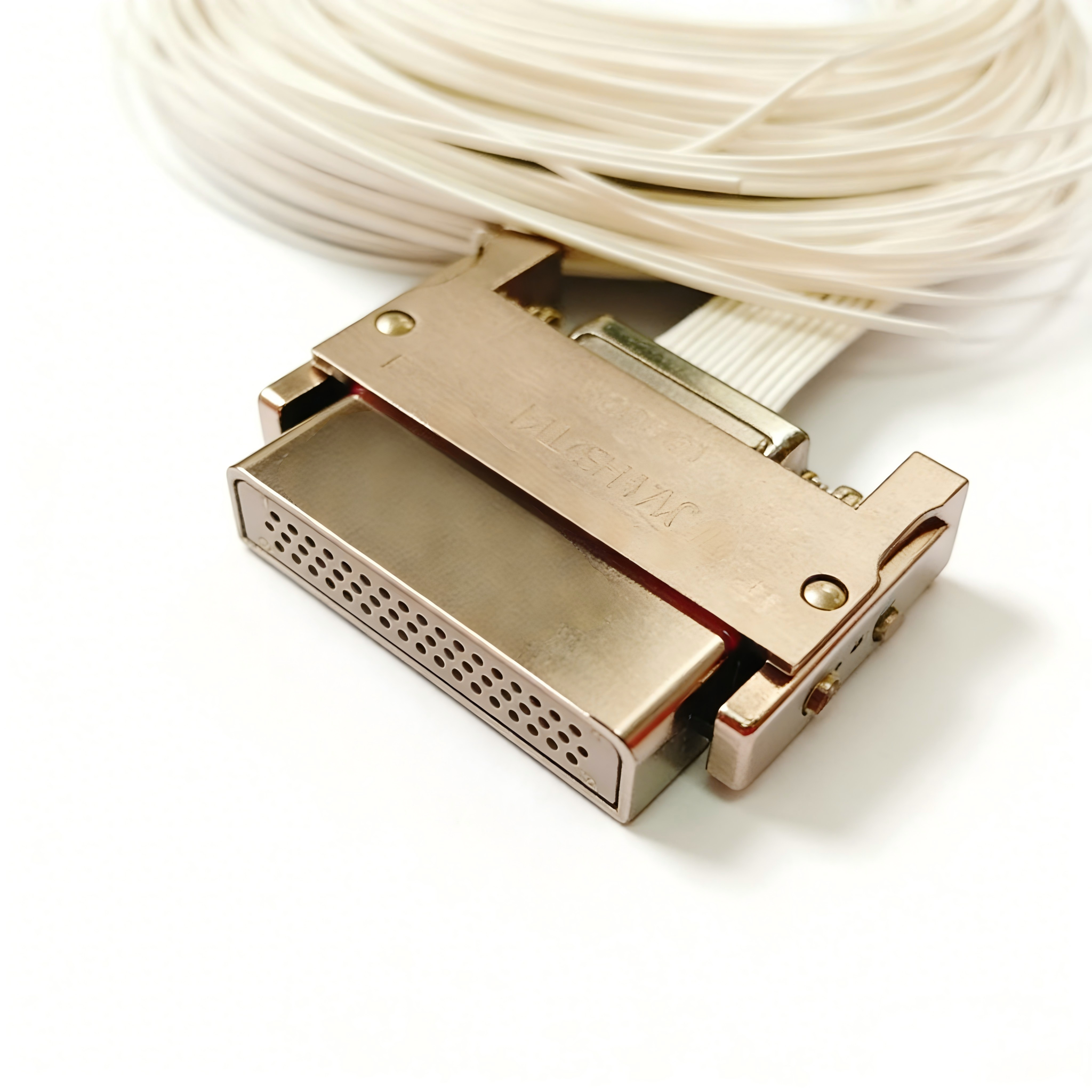

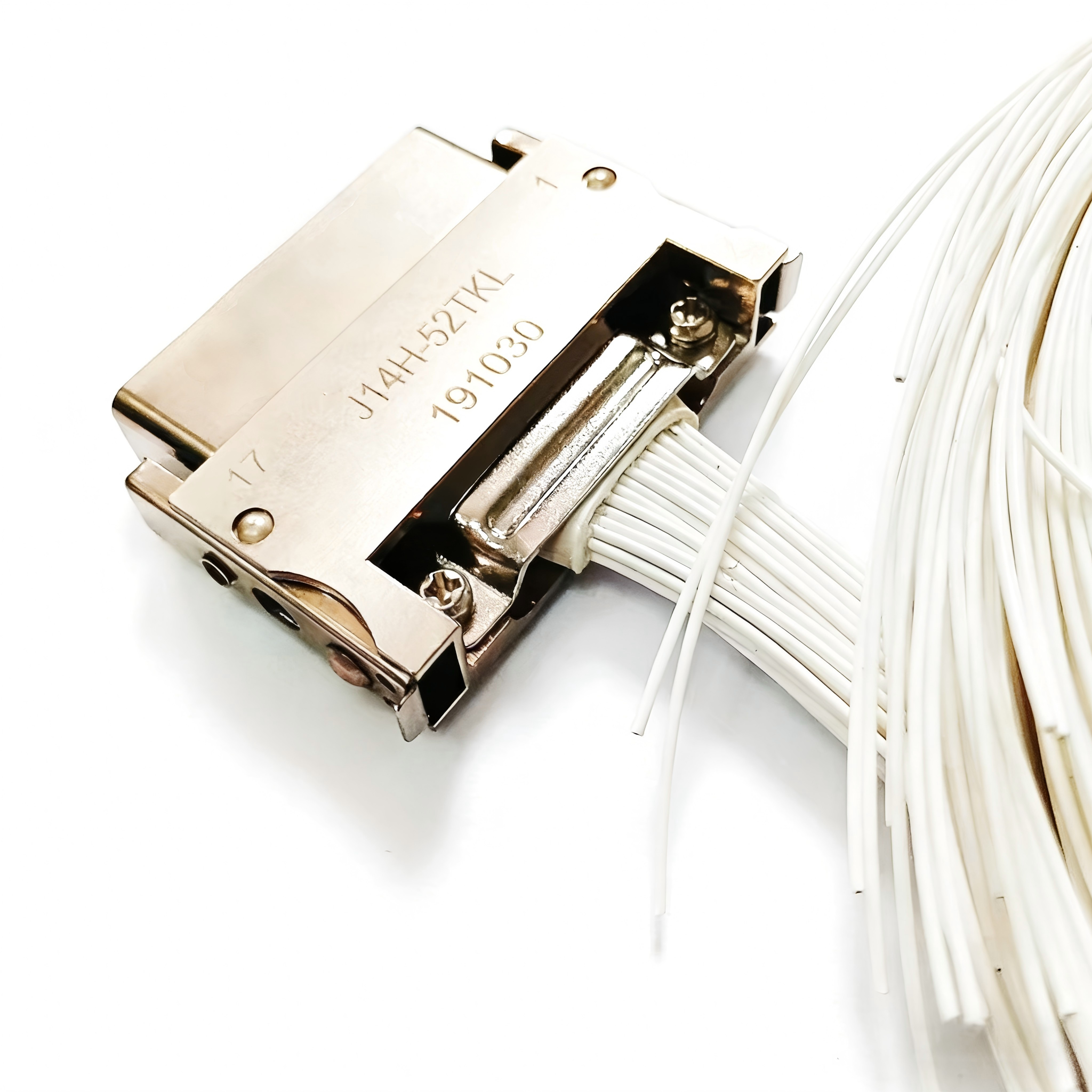

Product Show
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage

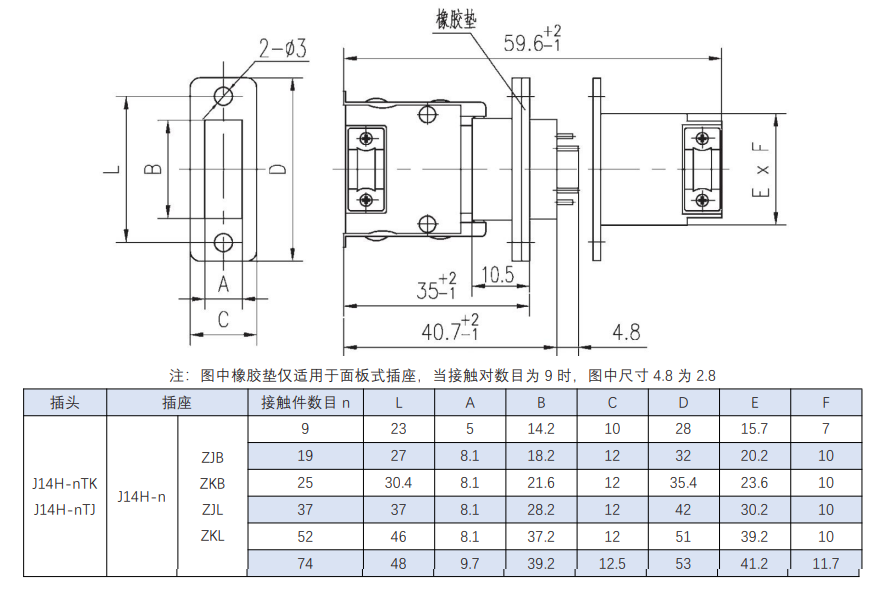

Product external dimensions

Display of Strength

Production Plant Area
Machining production workshop
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
Precision Assembly Production Workshop
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
Obtained Certification Certificate
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
Customer visit
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
Product Packaging
J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage
Packaging And Shipping

Standard export carton J14H-52TKL 52 Pins Military-Grade Rectangular Connector with 800V Withstand Voltage

  • As per customized specifications such as logo or others
  • According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
