Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Specifications
Brand Name :
ZSX
Model Number :
JL23-22TKY
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
JL Connector JL23-22TKY
Gender :
Male
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
6-8-10-12-14-16-18-20-22-24-26-28-30
Description

Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug Connector

JL23 connector is a classic type of printed circuit electrical connector in the domestic industrial control field. The socket adopts a φ0.76 wire spring hole structure, and the contact piece is gold-plated, ensuring reliable performance.The standard double-row spacing is 2.54mm, which belongs to the board-to-wire connection type.
The cross-sectional area of the wire core supplied by default is 0.15mm²-0.2mm².

Product display
Product Performance Details
Product model JL23-22TKY Contact resistance ≤10mΩ
Ambient temperature -65℃~+125℃ Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz, Instantaneous breakage ≤1us, 147m/s2 Medium pressure resistance 1500V DC
Relative humidity 90%-95%,(40±2℃) Mechanical life 500 times
Impact Instantaneous breakage ≤1us,980 m/s2 Rated current 3 A

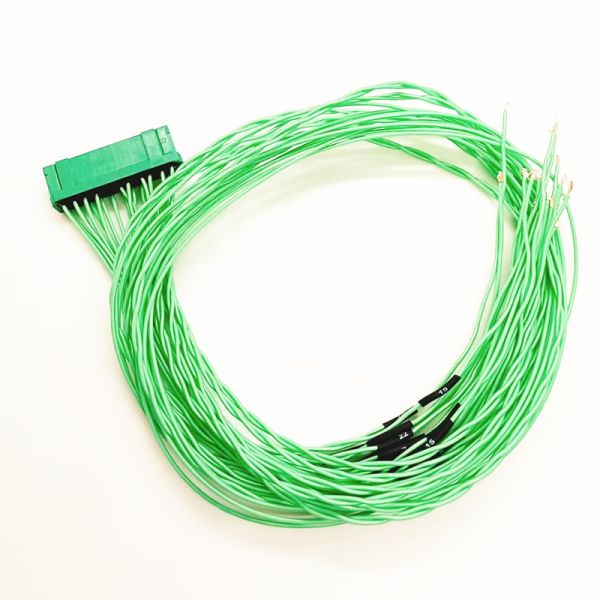

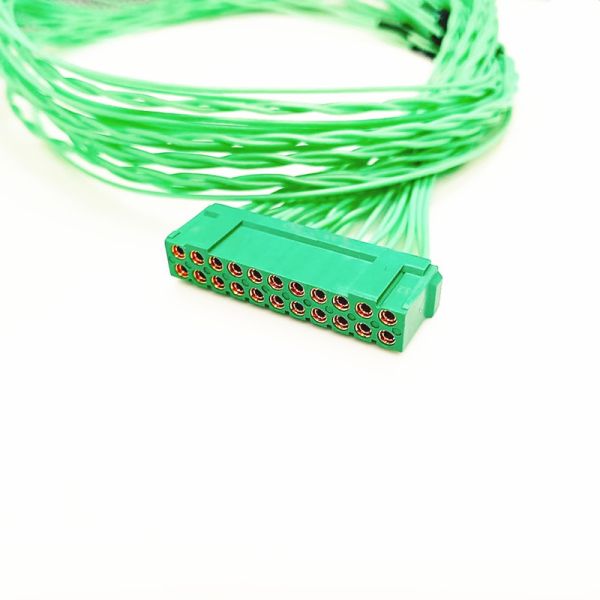

Physical product display
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

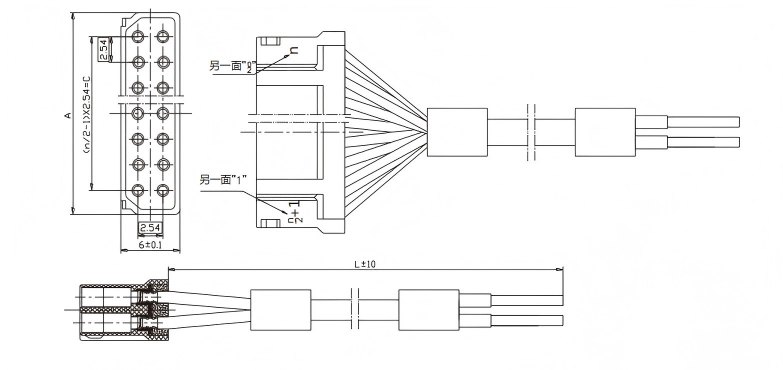

Product appearance drawing
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

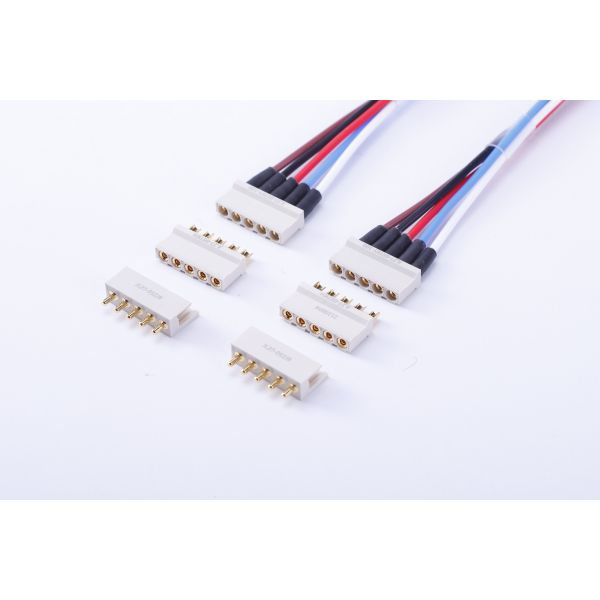

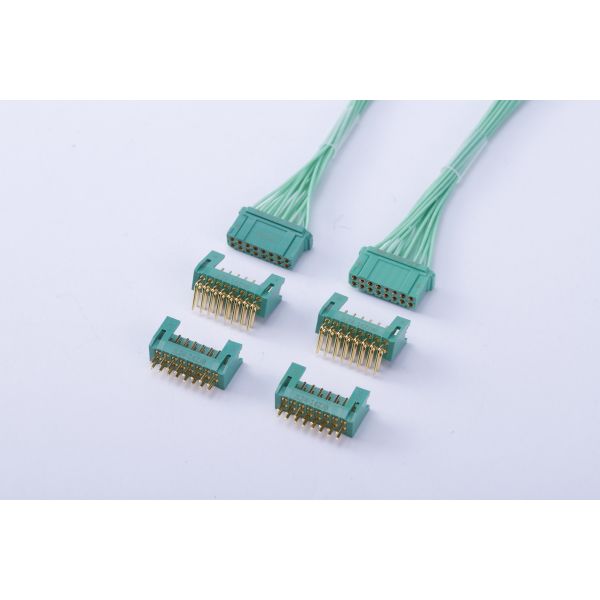

Related product recommendations
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

Display of Strength
Production Plant Area

Machining production workshop

Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

Precision Assembly Production Workshop

Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

Glass-to-metal sealed production workshop

Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Obtained Certification Certificate
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

Customer visit
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Product packaging
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator

Packaging and Shipping
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
