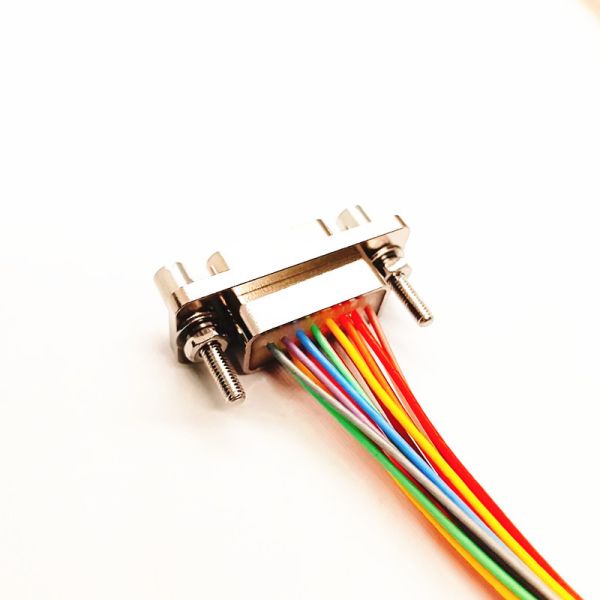

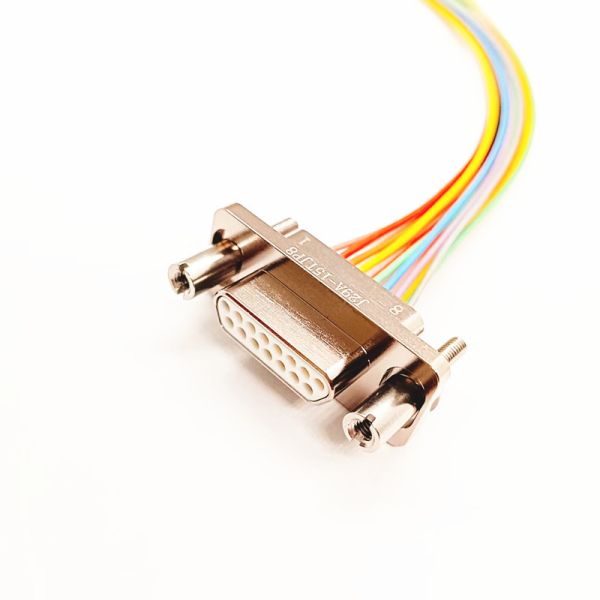

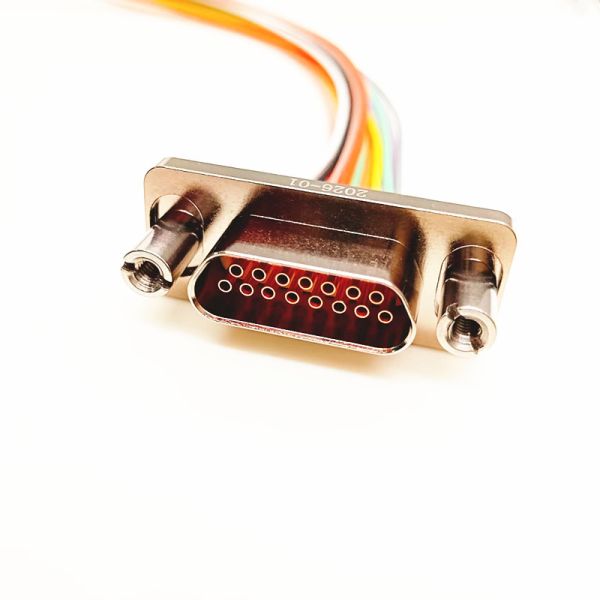

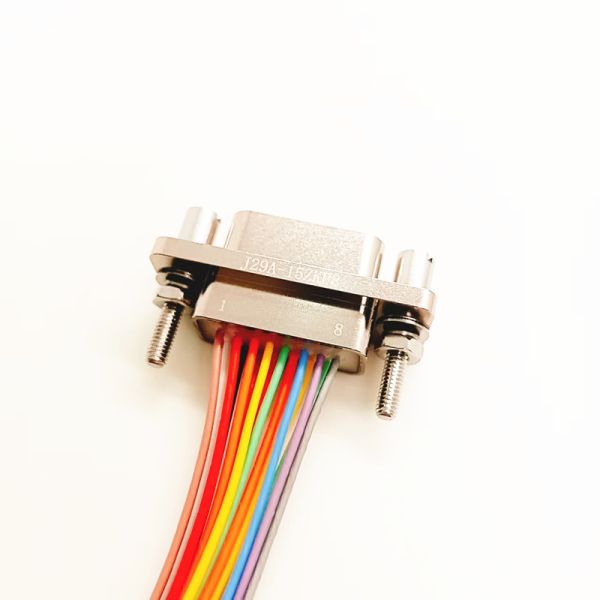

MIL-DTL-83513 Series Micro-D Connectors J29A-15TJP 15 Pins Plug Connector

J29A series complies with GJB2446A (equivalent to MIL-DTL-83513). The plug and socket have functions such as threaded locking, guiding, and preventing misinsertion.The terminal connection forms of the product include crimping, direct insertion, bending insertion, welding, etc. Among them, the cross-sectional area of the crimped wire is 0.15mm² - 0.3mm². It adopts precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of well 1.9mm, and the product volume is small. Due to its excellent vibration resistance and resistance to high and low temperatures, the J29A connector core is suitable for scenarios with strict reliability requirements. In the aerospace field, it can be used for the internal circuit interconnection of airborne radars and spaceborne electronic equipment. In the field of electronic computers, it is suitable for the component connection of high-end industrial computers and special control computers. It is also often used in aerospace electronic equipment, precision testing instruments,etc., to achieve stable interconnection of complex circuit systems.

Product Performance Details

Product model J29A-15TJP-50CM Contact resistance ≤10mΩ
Ambient temperature -55℃~+125℃ Insulation resistance


≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Medium pressure resistance 1500V DC
Random vibration


Power spectral density is 0.6G2 /Hz and the root mean square value of the total acceleration rate is 28.4G


Mechanical life


500 times
Impact


1200m/s2 6ms

 Rated current


5 A
