50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Specifications
Brand Name :
ZSX
Model Number :
SMA-C-JW-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Crimp Connector
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

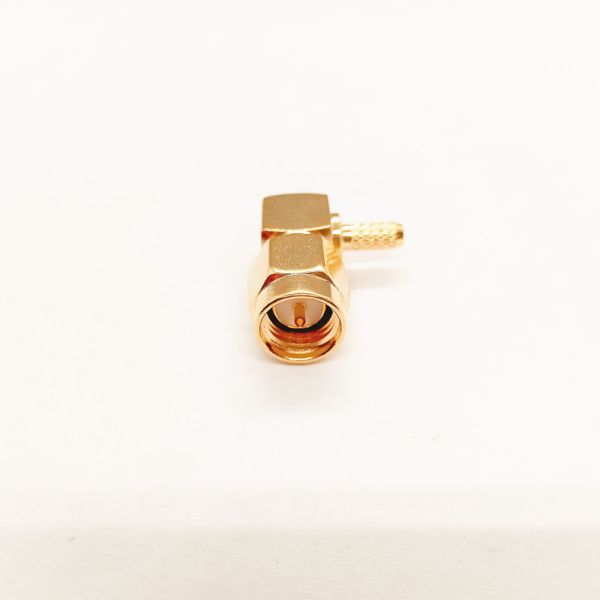

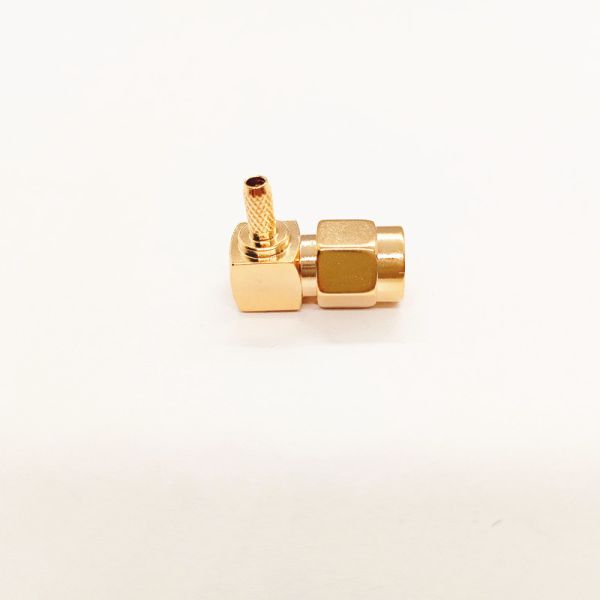

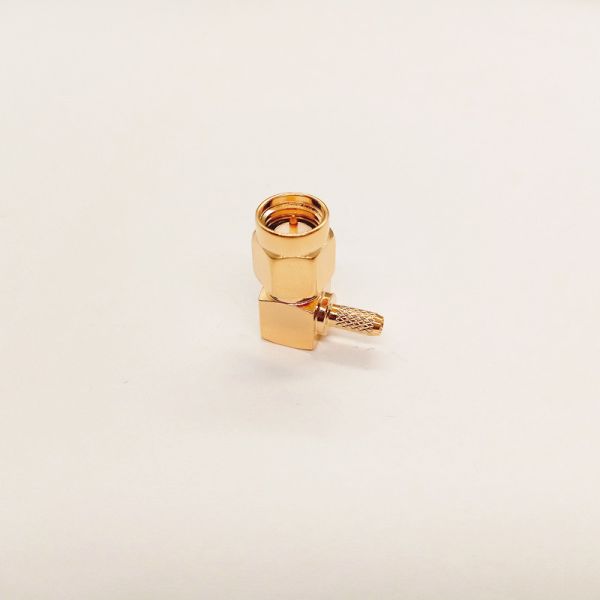

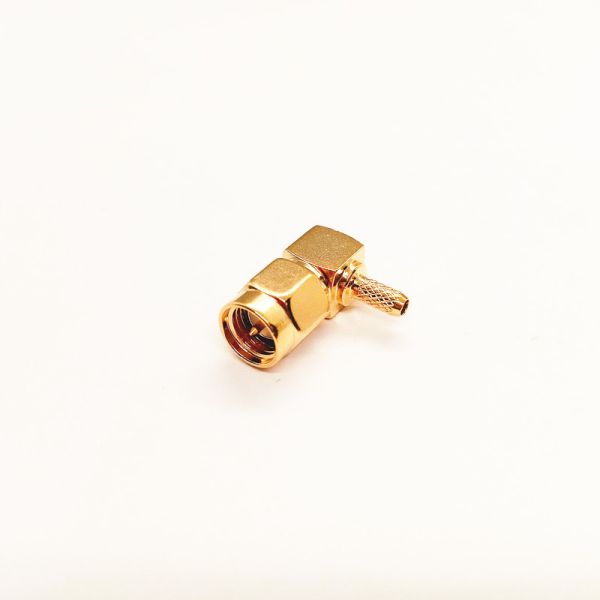

50Ω SMA-C-JW-1.5 SMA Male Right Angle Crimp Type RF Coaxial Connector
SMA-C-JW-1.5 right-angle crimp connector is a high-performance 50Ω RF coaxial solution designed for RG174/RG316 and 1.5mm diameter cables. With a DC-6GHz (up to 18GHz optional) frequency range, low VSWR (≤1.3 at 6GHz), gold-plated contacts, and a nickel-plated brass body, it delivers stable signal transmission, corrosion resistance, and reliable performance for wireless modules, IoT devices, and test equipment in space-constrained applications.
Product Performance Details
Product model SMA-C-JW-1.5 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.35 Insulator material PTFE
Medium pressure resistance ≥1000V RMS, 50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact: ≤3mΩ
Outer contact: ≤2mΩ		 Temperature range -45℃~+125℃
Physical Product Display
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Related Product Recommendations
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Display of Strength
Production Plant Area
Machining Production Workshop
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Precision Assembly Production Workshop
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Glass-to-Metal Sealed Production Workshop
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Obtained Certification Certificate
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Customer Visit
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Product Packaging
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
Packaging and Shipping
50Ω SMA Crimp Connector with Gold-plated Brass for DC-6GHz RF Coaxial Applications
  • Standard export carton
  • As per customized specifications such as logo or others according to customers' requirements
  • Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
Frequently Asked Questions
Are you trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is more expensive under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
