RF Connector BNC Male Right Angle PCB Mount RF Connector

BNC male right angle PCB mount RF connector is a high-performance 50Ω coaxial connector designed for direct PCB soldering. With a frequency range of DC to 4GHz and low VSWR, it delivers stable, low-loss signal transmission for video systems, test equipment, and RF communication. Featuring a brass body, gold-plated contacts, and PTFE dielectric, it ensures excellent conductivity, corrosion resistance, and long service life. The 90° right angle design saves space, making it ideal for compact devices and panel mount applications.

Product display
Product Performance Details
Product model BNC-JWF09 Contact resistance BNC

Center contact:≤1.5mΩ

Outer contact:≤1mΩ
Characteristic impedance 50 ohm Body material BNC

Nickel-plated brass
Frequency range DC-4GHz Temperature range -55℃-- +125℃
Voltage standing wave ratio

≤1.2

Central conductor

Gold-plated brass
Medium pressure resistance

≥1500V RMS ,50Hz, at sea level

 Insulating material

PTFE
Dielectric constant

≥5000MΩ

 Durability

≥500 times
Physical product display

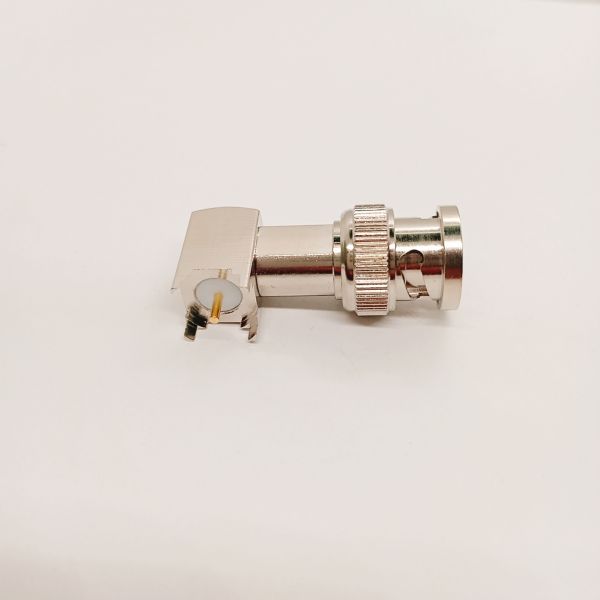

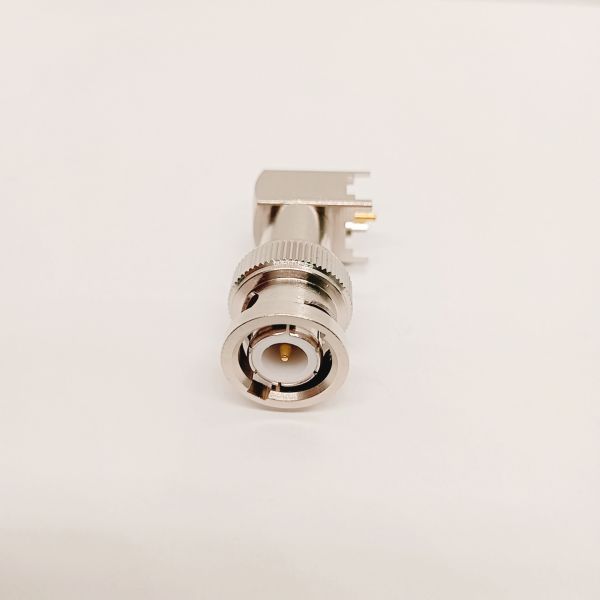

BNC Male Right Angle PCB Mount RF Connector 50Ω for DC to 4GHz Applications BNC Male Right Angle PCB Mount RF Connector 50Ω for DC to 4GHz Applications

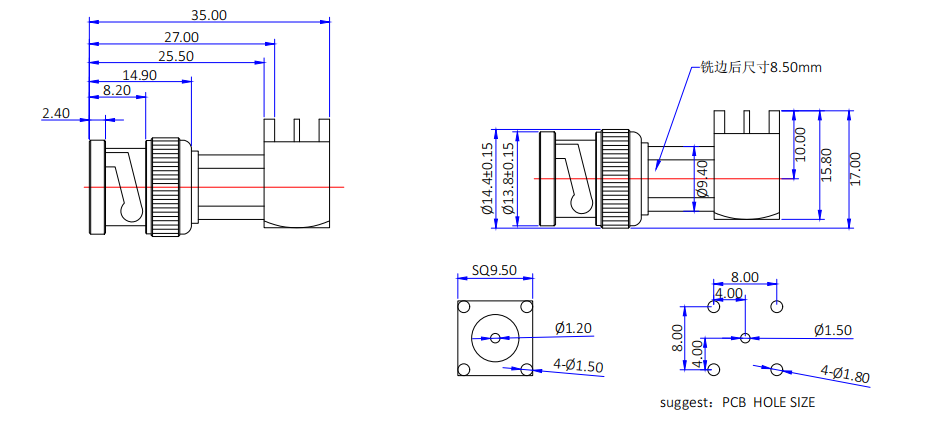

Product external dimensions
BNC Male Right Angle PCB Mount RF Connector 50Ω for DC to 4GHz Applications
