BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Specifications
Brand Name :
ZSX
Model Number :
BNC-KKY
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.99 --$1.25 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
BNC Connector
Gender :
Female to female
VSWR :
≤ 1.25
Frequencyrange :
Up to 4 GHz
Mounting type :
Bulkhead
Applications :
Video, radio, test equipment, networking
Description
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY

RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.

Product display
Product Performance Details
Product model BNC-KKY Contact resistance BNC

Center contact:≤1.5mΩ

Outer contact:≤1mΩ
Characteristic impedance 50 ohm Body material BNC

Nickel-plated brass
Frequency range DC-4GHz Temperature range -55℃-- +125℃
Voltage standing wave ratio

≤1.2

Central conductor

Gold-plated brass
Medium pressure resistance

≥1500V RMS ,50Hz, at sea level

 Insulating material

PTFE
Dielectric constant

≥5000MΩ

 Durability

≥500 times

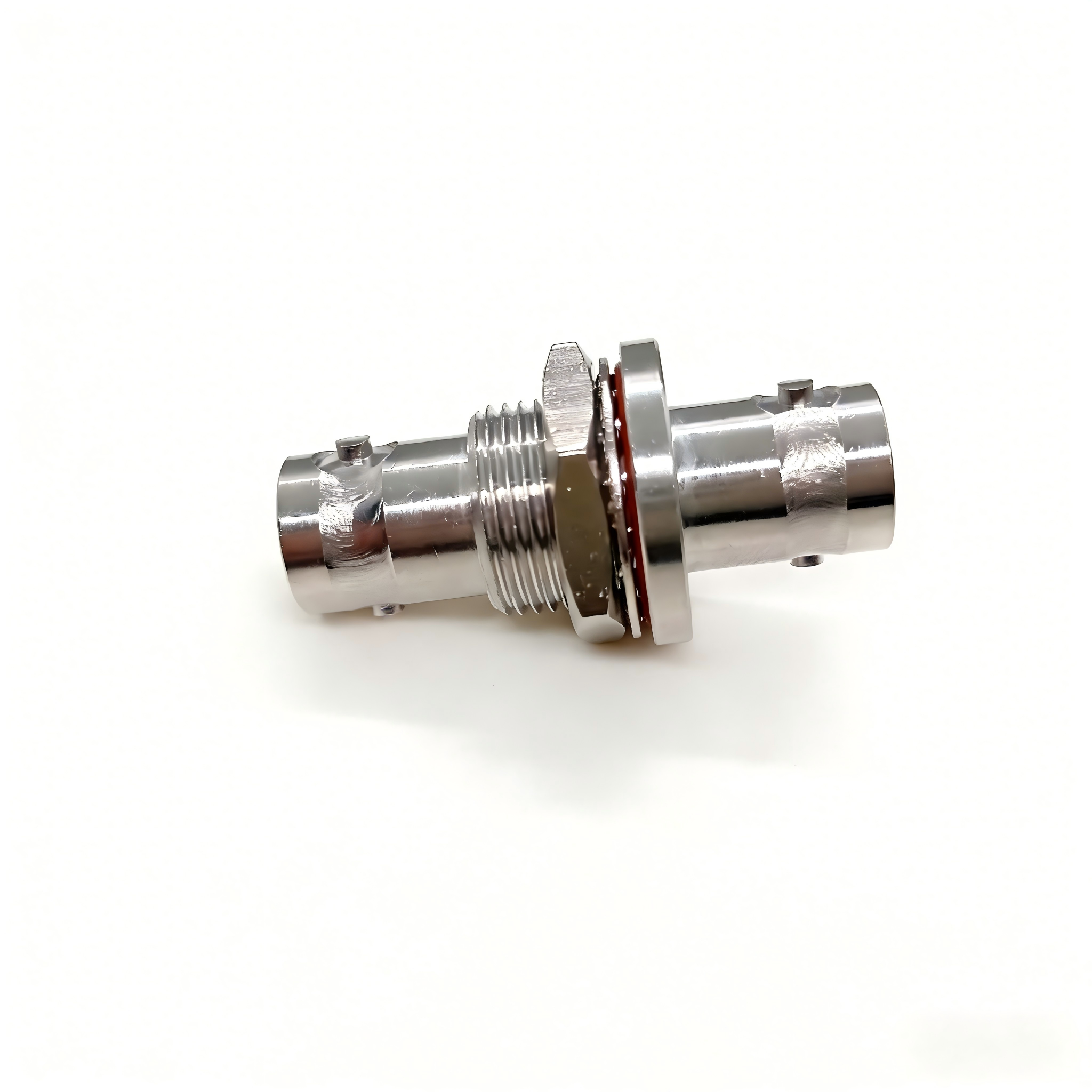

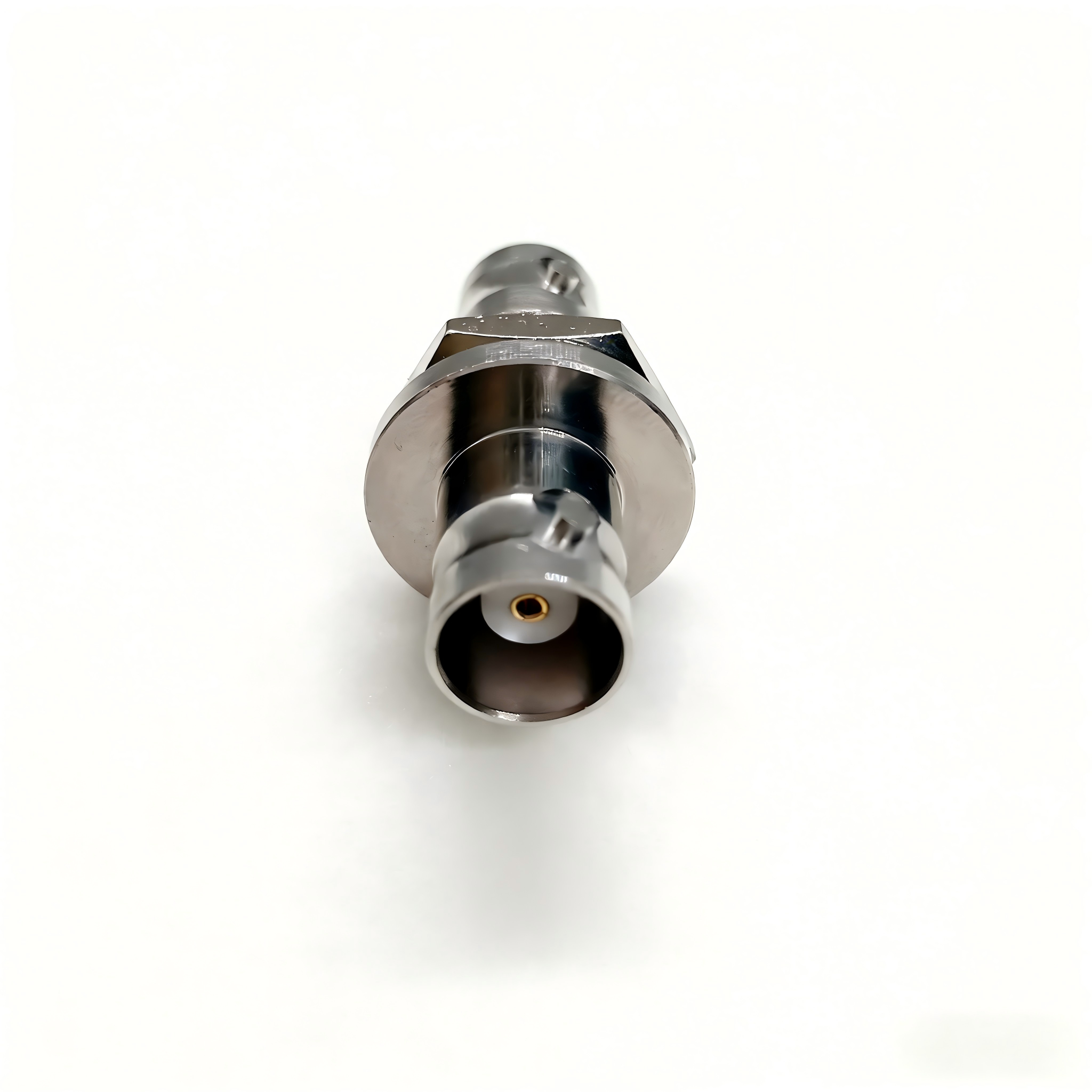

Physical product display
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY

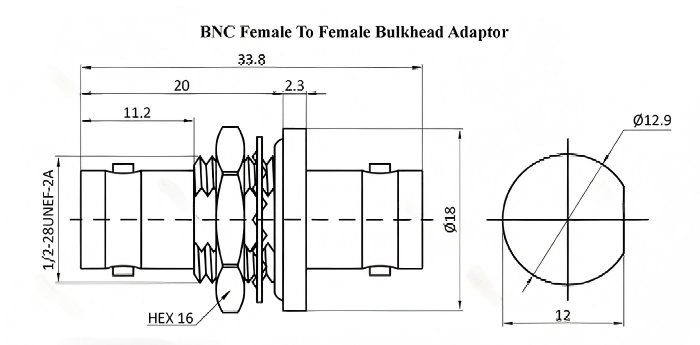

Product external dimensions
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Related product recommendations
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Display of Strength
Production Plant Area
Machining production workshop
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Precision Assembly Production Workshop
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Glass-to-metal sealed production workshop
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Obtained Certification Certificate
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Customer visit
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Product packaging
BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
Packaging and Shipping
  • Standard export carton BNC Female To Female Bulkhead Adapter With Nut Fixed Waterproof Ring BNC-KKY
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
