BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz
BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz
BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz
BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz
BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz
BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz
Specifications
Brand Name :
ZSX
Model Number :
BNC/SMA-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.96-$1.28 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

BNC/SMA-KK coaxial adapter is designed with BNC female to SMA female connectors, providing stable and reliable RF signal conversion. It features 50Ω impedance, wide frequency range up to 4GHz, low insertion loss, and low VSWR for excellent signal transmission performance. Constructed with brass body, nickel-plated shell and gold-plated contacts, it ensures good conductivity, corrosion resistance and durability. The bayonet locking structure enables quick and secure connection, widely used in communication equipment, test instruments, CCTV systems, RF modules and other electronic applications.

Product display
Product Performance Details
Product model BNC/SMA-KK Contact resistance

Center contact(BNC):≤1.5mΩ Outer contact(BNC):≤1mΩ

Center contact(SMA):≤3mΩ Outer contact(SMA):≤2mΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-4GHz Insulator PTFE
Voltage standing wave ratio ≤1.25 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥1500V RMS ,50Hz, at sea level Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

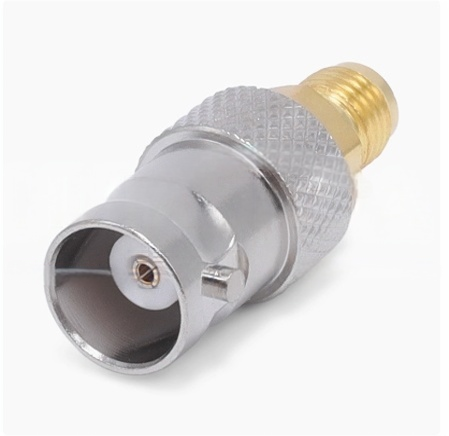

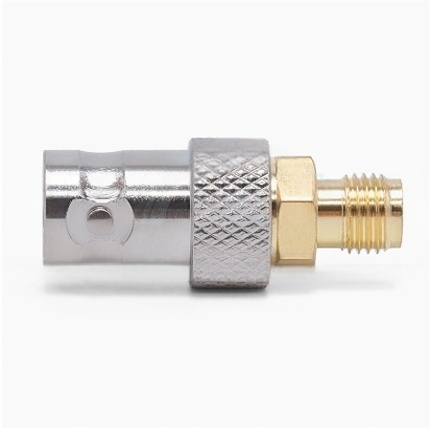

Physical product display

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

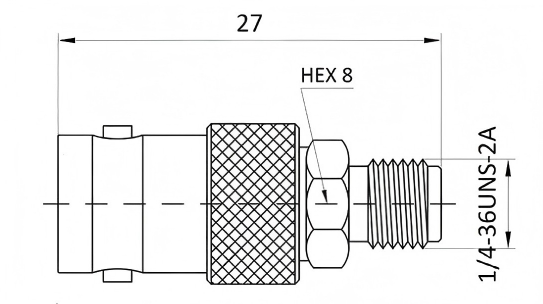

Product external dimensions

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Related product recommendations

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Display of Strength
Office area

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Production Plant Area
Machining production workshop

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Precision Assembly Production Workshop

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Glass-to-metal sealed production workshop

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Obtained Certification Certificate

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHzBNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Customer visit

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Product packaging

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

Packaging and Shipping

BNC/SMA-KK Female to Female RF Coaxial Adapter 50Ω DC-4GHz

  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
