DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Specifications
Brand Name :
ZSX
Model Number :
SMA-KFD105
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$5.30-$7.50 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Connector
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
DC-18GHz SMA Female Stainless Steel 4 Hole Flange Connector

Stainless steel SMA-KFD is a high-performance 50Ω SMA female 4-hole flange RF coaxial connector, engineered for panel mount applications. With a DC~18GHz frequency range and low VSWR, it delivers stable, low-loss signal transmission for RF communication, test equipment, antennas, and microwave systems. Featuring a durable stainless steel body, gold-plated contacts, and PTFE dielectric, it ensures excellent conductivity, corrosion resistance, and long service life, ideal for harsh environment and high-reliability applications.

Product display
Product Performance Details

Product model

 SMA-KFD105 Dielectric constant


≥5000MΩ

Characteristic impedance

 50 ohm Body material
Gold-plated brass

Frequency range

 DC-18GHz

Central conductor

 Gold-plated brass

Voltage standing wave ratio

 ≤1.25 Insulator material PTFE

Medium pressure resistance

 ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles

Contact resistance

Center contact:≤3mΩ

Outer contact:≤2mΩ

 Temperature range -45℃~+125℃

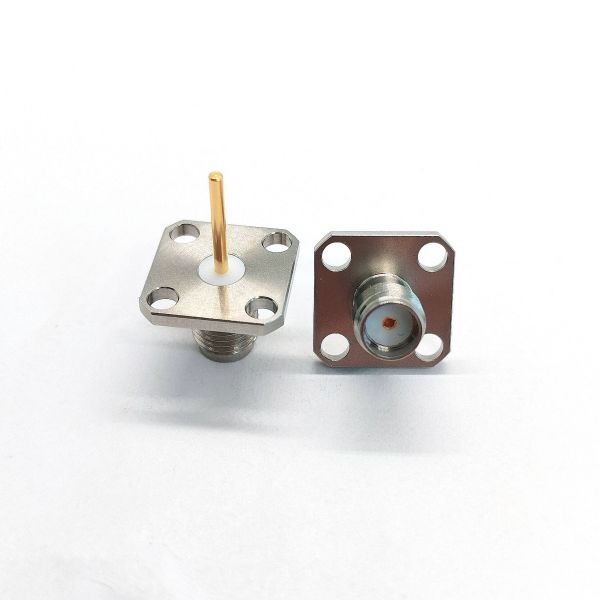

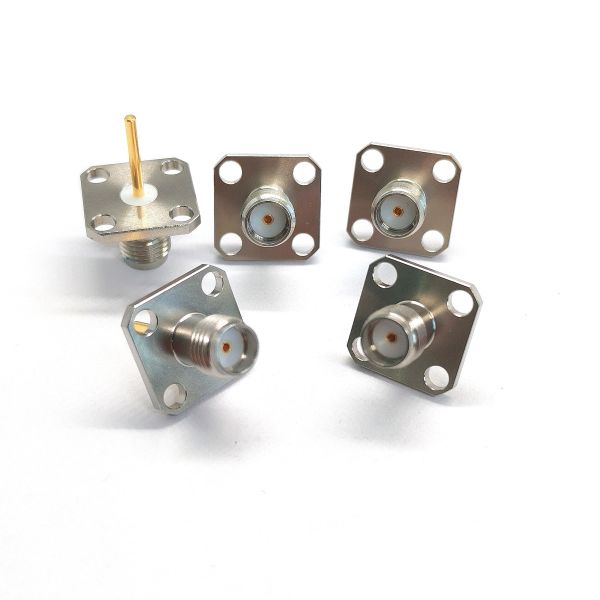

Physical product display
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications

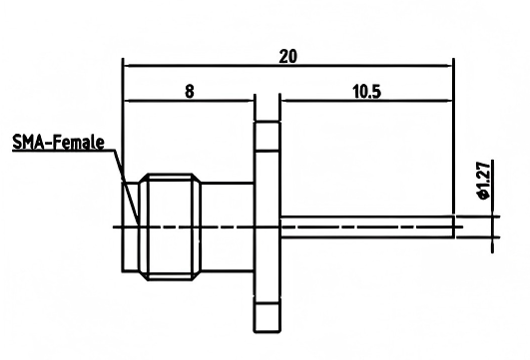

Product external dimensions
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Related product recommendations
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Display of Strength
Production Plant Area
Machining production workshop
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Precision Assembly Production Workshop
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Glass-to-metal sealed production workshop
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Obtained Certification Certificate
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Customer visit
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Product packaging
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
Packaging and Shipping
DC-18GHz Stainless Steel 4 Hole Flange SMA Connector for RF Coaxial Applications
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
